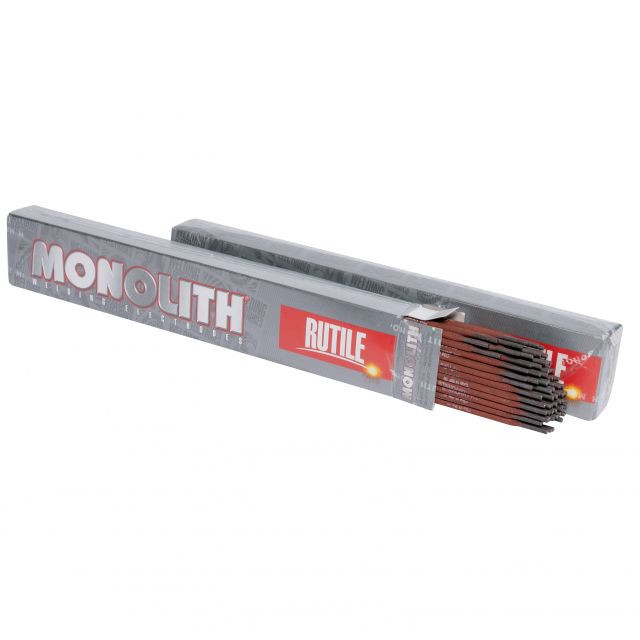

Electrodes 2,5x350mm MONOLITH Rutiles Standard
Our benefits
Description
Monolith Standart electrodes have an improved formula, which ensures good welding and technological properties. They are manufactured according to an improved formula, which allows ensuring good welding and technological properties during welding with small gauge transformers (household); light ignition of the bow, formation of seam metal in the form of small scales; light or spontaneous detachment of the slag pojghita.
Certification: AWSA 5.1: E6013 / ISO 2560-A-E 380 RC 11 / GOST 9466
Coating type: rutile-cellulosic
Electrodes with improved formula, which ensure good welding properties and high technological properties.
Mechanical properties of the deposited metal: Rm≥450N / mm2, A5≥22%, KCV / KCU≥78J / cm2
Welding current: 50-100A
Electrode length: 350mm
Number of electrodes in the package: 132-143pcs
Certifications: CE, TÜV
DESTINATION AND SCOPE
Standard RC electrodes (Стандарт РЦ) are designed for manual welding with coated electrode of low carbon steel constructions according to DSTU 2651-2005 / GOST 380-2005 (St 0, St 1, St 2, St 3) of all grades deoxidation - "KP", "PS", "SP") and according to GOST 1050-88 (05kp, 08kp, 08ps, 08, 10kp, 10ps, 10, 15kp, 15ps, 15, 20kp, 20ps, 20).
Conditions of use
Melting coefficient - 8.5- 9.0 g / A.h. Consumption of electrodes for 1 kg of metal deposited by welding - 1.7 kg.
They are used for welding corner, butt or overlapping joints of steels with a thickness of 3 to 20 mm. Electrodes with a diameter from 2.0 to 4 mm are suitable for welding in all spatial positions; electrodes with a diameter of 5 mm - for welding in the horizontal position on the vertical surface and the descending vertical position.
Welding by the vertical downward method is performed with the help of a short arc or by support, during this time the electrode must be at an angle of 40-70 ° to the welding direction.
SPECIAL PROPERTIES
Standard RC electrodes (Стандарт РЦ) are manufactured according to an improved formula, which allows to ensure good welding technological properties while working from small gauge transformers (for household use): easy spring priming, metal formation of welded seam in the form of small scales; slight or spontaneous detachment of the slag pojghite. Standart RC electrodes allow the realization of welded joints and short seams at low voltages of the welding current.
CALCINATION BEFORE WELDING
Under normal storage conditions, calcination before welding is not required.
In case of wetting, calcination is done at 100-120 ° C for 40-60 min.
Made in Ukraine.
