Automatic pressure controller EPC-3
Our benefits
Description

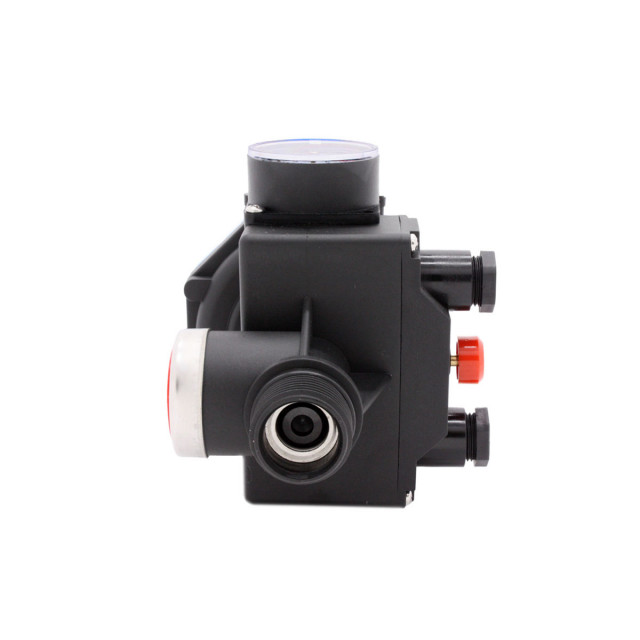

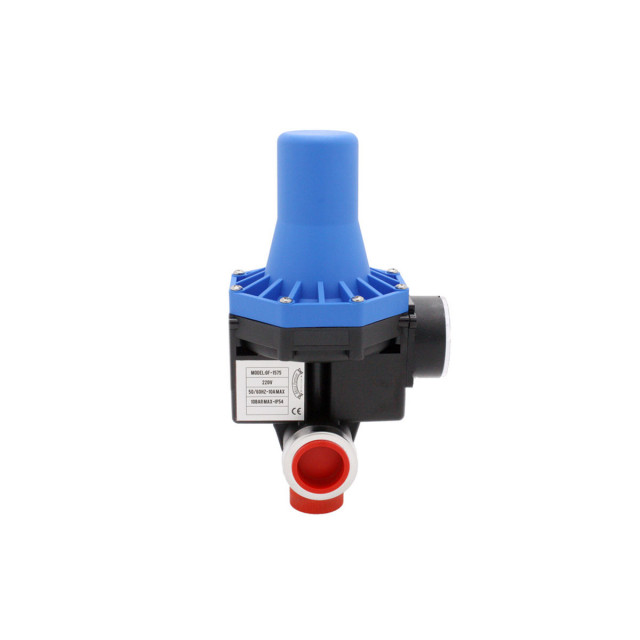

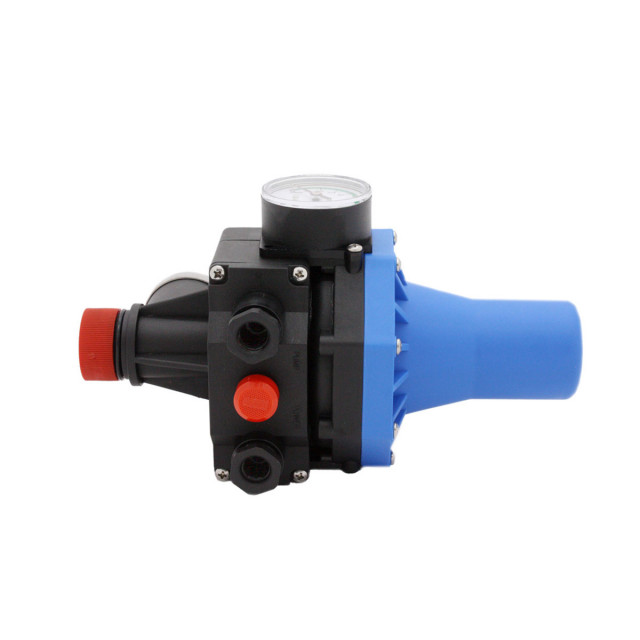

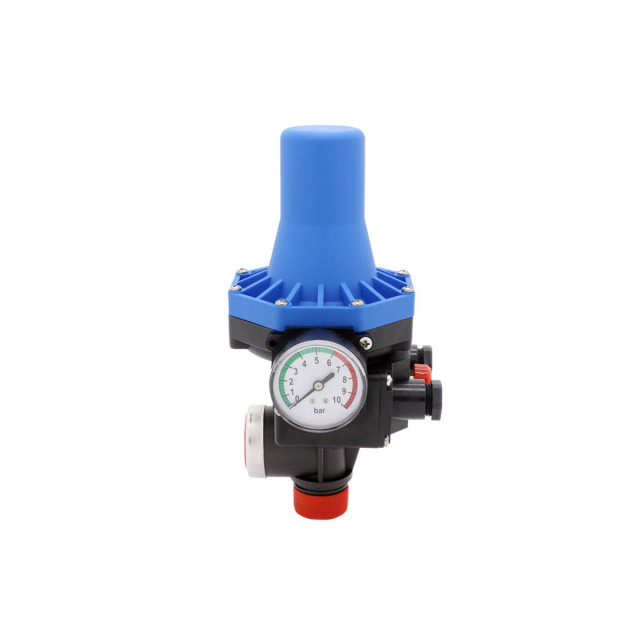

Automatic pressure controller EPC-3.
It is used for optimal control of household pumps in clean water supply installations.
The device detects both the pressure and the flow of water at the same time and in relation to them it automatically controls the optimal operation of the pump. etc., protecting the pump in case of water shortage. It has a flow sensor that maintains the pump supply as long as there is a minimum consumption of 0.8 l / min.
Specifications:
Voltage - 220V
Nominal frequency - 50Hz
Power KW / W - 1.1KW
Maximum working pressure - 10 bar
Maximum working temperature - 60 degrees
Maximum current intensity - 10A
Protection rating - IP65
Fitting - 1 inch outer thread
Manometer - Ø 50mm
Maximum flow - 10,000 l / hour
Pressure start - FSC15 mode: 1.5 bar
FSC22 mode: 2.5 bar
RSC15 mode: 1.5-3 bar
