Holzfforma® G3120 semi-assembled chainsaw
€542.73
(VAT included)
€628.80
Last lowest price:
€542.73
Delivery between 3 ~ 6 working days anywhere in Europe
Available in stock
Our benefits
Description
Holzfforma® G3120 semi-assembled chainsaw
Partially assembled product – supplied without blade and chain. The Holzfforma® G3120 is sold in a partially assembled version.

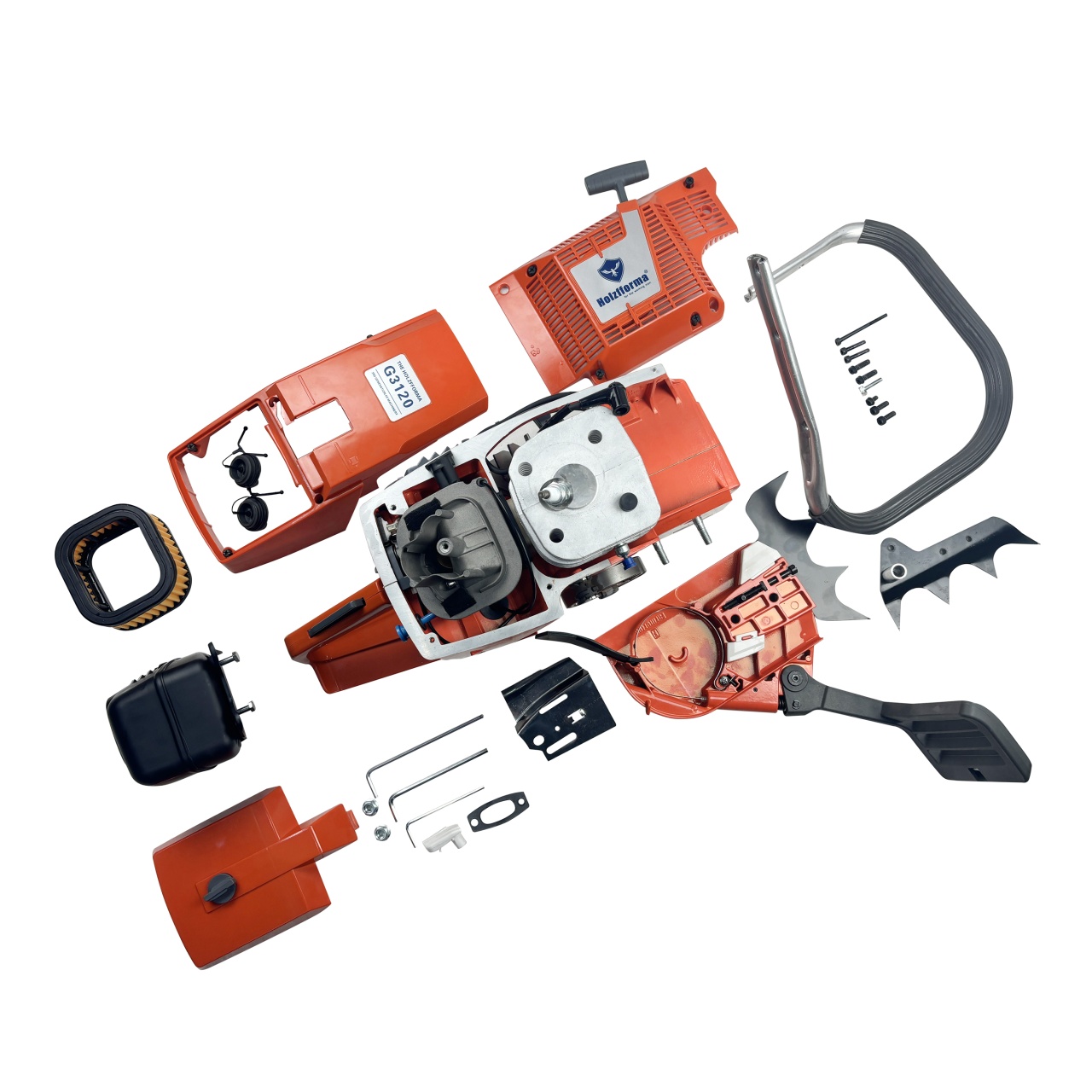

The product requires the fitting of certain components before use: the exhaust, the starter, the clutch cover, the clutch housing and certain plastic parts. The estimated
time required to complete the assembly is approximately 15 minutes.
The product requires the fitting of certain components before use: the exhaust, the starter, the clutch cover, the clutch housing and certain plastic parts. The estimated
time required to complete the assembly is approximately 15 minutes.
118.8 cm³ 2-stroke engine
5.8 kW Engine power
9.8 kg (excluding blade and chain)
Holzfforma G3120 – specifications and features
Complete the chainsaw for use
The Holzfforma G3120 is supplied without a guide bar or chain. For the configuration below, you can add a compatible guide bar and chain.
91 cm
104 teeth • pitch .404" • 1.6 mm
Compatible guide bar View guide bar →
Compatible chain View chain →
Important: the blade and chain are not included in the pack. The configuration shown uses a 91 cm blade and a chain with 104 teeth, a pitch of .404", and a thickness of 1.6 mm.
Holzfforma G3120
The Holzfforma® G3120 is a high-displacement chainsaw, fitted with a 118.8 cm³ single-cylinder 2-stroke engine and delivering 5.8 kW of power.
The model weighs approximately 9.8 kg without the guide bar and chain; the cylinder bore is 60 mm and the piston stroke is 42 mm.
The cutting system uses a chain with a pitch of .404" and a thickness of 1.6 mm (.063"). The chain is lubricated by an automatic oil pump.
Key features
118.8 cm³ single-cylinder 2-stroke engine
5.8 kW Engine power
9.8 kg Weight excluding blade and chain
12,000 rpm Maximum speed
.404" / 1.6 mm Chain pitch
Automatic lubrication Automatic chain pump

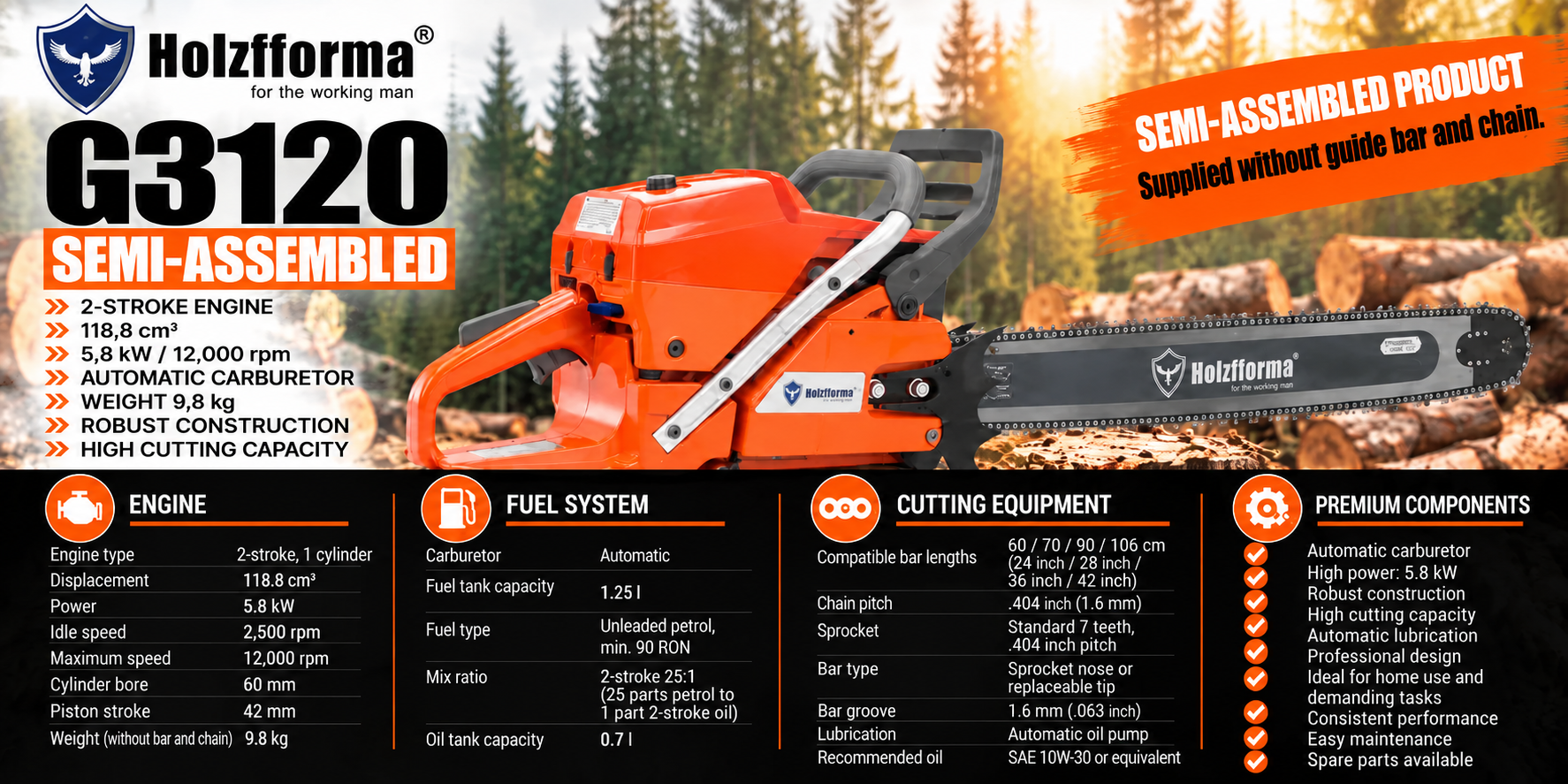

Technical specifications
Engine type 2-stroke, single-cylinder
Displacement 118.8 cm³
Power 5.8 kW
Idle speed 2,500 rpm
Maximum speed 12,000 rpm
Cylinder bore 60 mm
Piston stroke 42 mm
Weight without blade and chain: 9.8 kg
Automatic carburettor
Fuel: Unleaded petrol, min. 90 RON
Mix ratio 25:1
Fuel tank capacity 1.25 l
Compatible blade lengths: 24", 28", 36", 42"
Maximum cutting length: 60 / 70 / 90 / 106 cm
Blade type: Pinion on tip
Chain pitch: .404"
Chain thickness: 1.6 mm (.063")
Chain sprocket: Standard 7 teeth, pitch .404"
Chain lubrication: Automatic oil pump
Recommended oil for the blade: SAE 10W-30 or equivalent
Oil reservoir 0.70 l
Product assembly

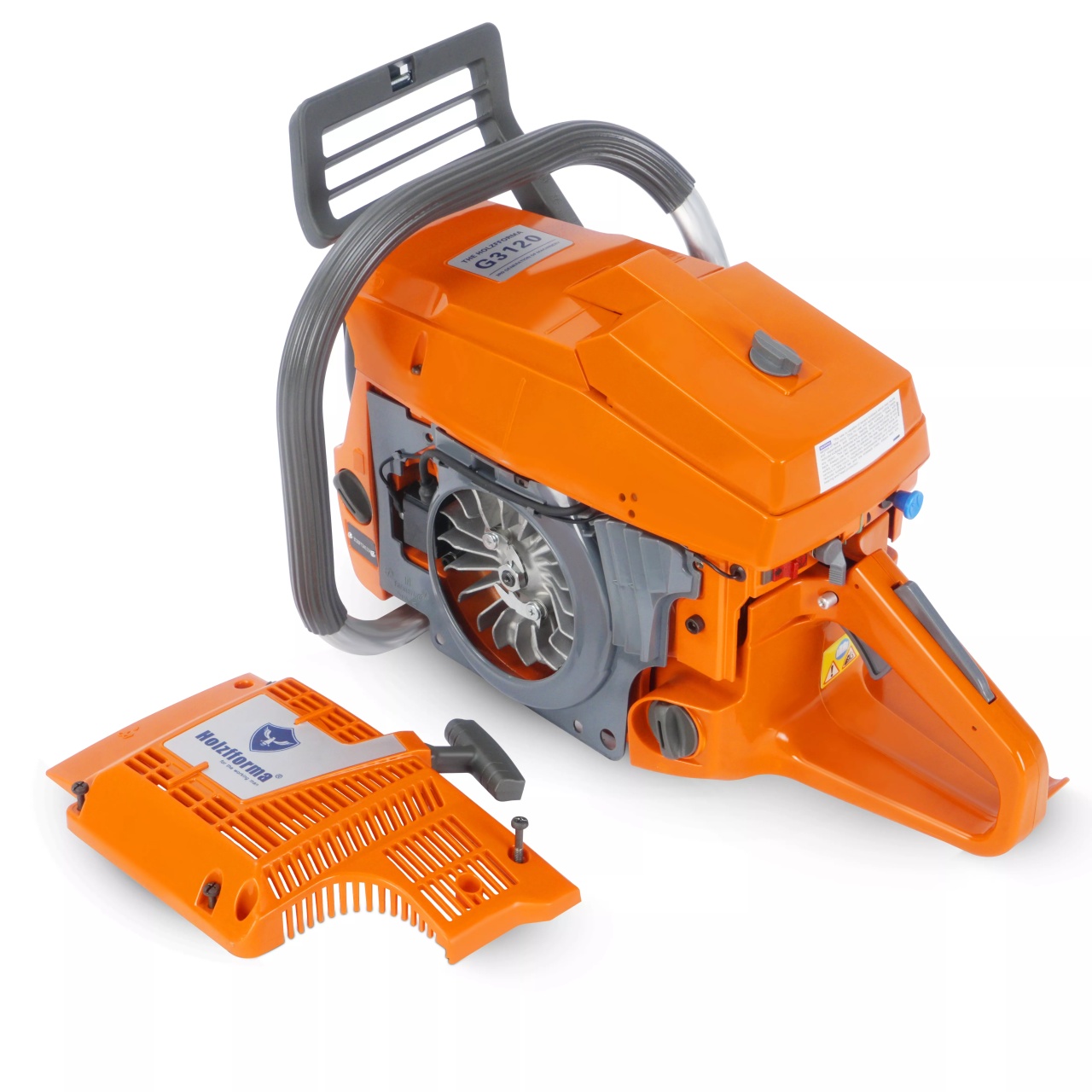

The chainsaw is supplied semi-assembled. Before first use, the separately supplied components must be fitted.
Estimated assembly time: approximately 15 minutes
✓ Exhaust
✓ Starter
✓ Clutch cover
✓ Clutch housing
✓ Plastic parts
✓ Final inspection
Documentation
Please refer to the user manual before assembling, starting and using the product.
Important: The Holzfforma® G3120 is supplied semi-assembled, without the blade and chain. The
product has been tested and approved prior to sale. The semi-assembled version requires the components to be fully assembled before first use.
Before starting the machine, check that it has been assembled correctly, that the chain is fitted and tensioned correctly, and that the lubrication system is functioning properly.
product has been tested and approved prior to sale. The semi-assembled version requires the components to be fully assembled before first use.
Before starting the machine, check that it has been assembled correctly, that the chain is fitted and tensioned correctly, and that the lubrication system is functioning properly.
