Automatic pressure controller EPC-4
Our benefits
Description

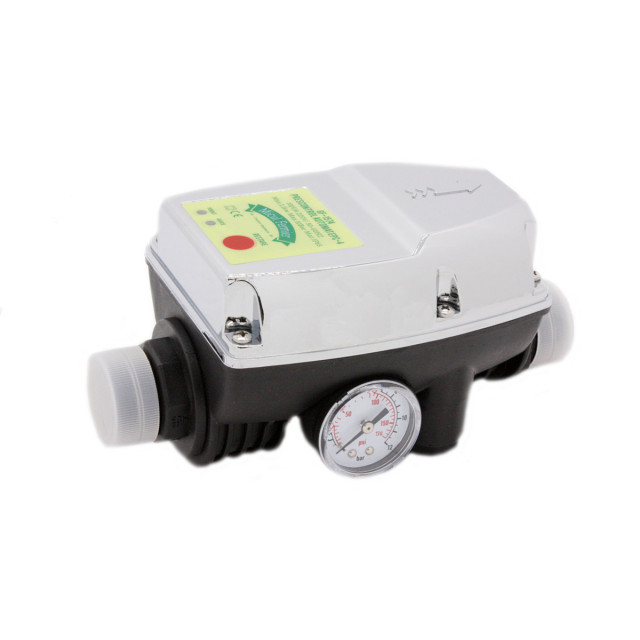

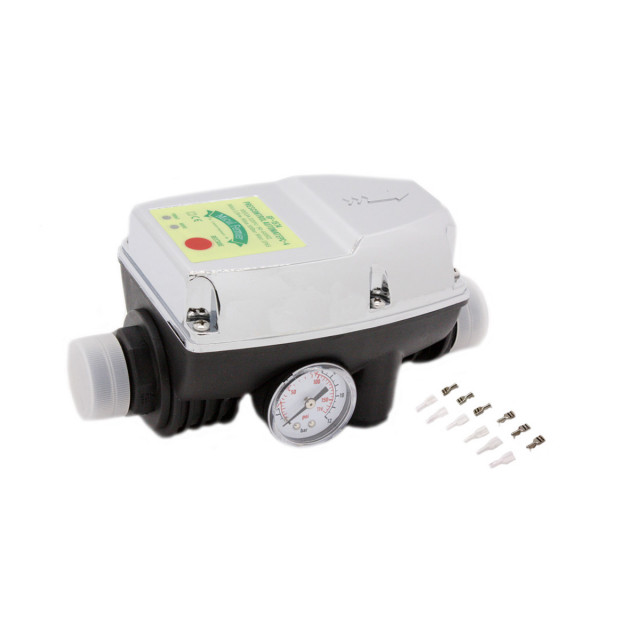

Automatic pressure controller EPC-4.
It is used for optimal control of household pumps in clean water supply installations.
The device detects both the pressure and the flow of water at the same time and in relation to them it automatically controls the optimal operation of the pump. etc., protecting the pump in case of water shortage. It has a flow sensor that maintains the pump supply as long as there is a minimum consumption of 0.8 l / min.
For personal safety, you must always use a residual current device (automatic differential safety) with IDn-30mA in the installation diagram.
Specifications:
Voltage - 220V
Nominal frequency - 50Hz
Power KW / W - 1.1KW
Maximum working pressure - 10 bar
Maximum working temperature - 60 degrees
Maximum current intensity - 10A
Protection rating - IP65
Fitting - 1 inch outer thread
Manometer - Ø 40mm / 0-10 bar
