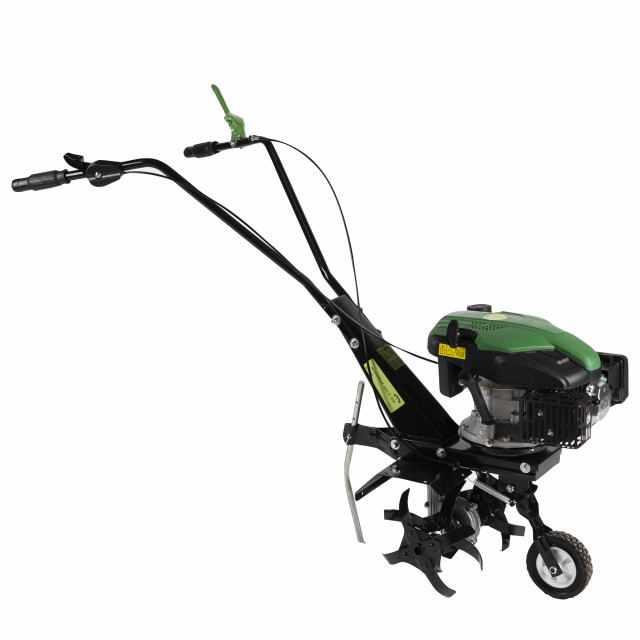

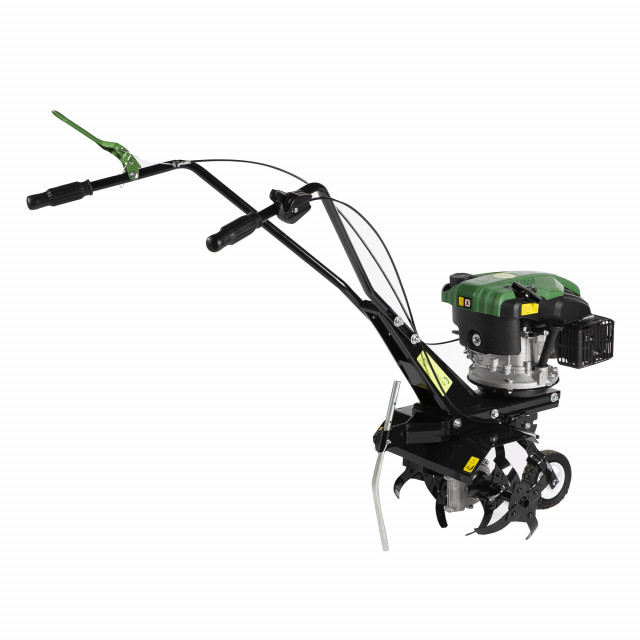

Tiller 4CP, 139CC, 4T 36cm

Description

Tiller 4CP, 139CC, 4T 36cm.

The 4HP, 139CC, 4T, 36cm cultivator has small dimensions, is light, multi-functional and very efficient in the process of preparing the soil for cultivation.
It is equipped with a 4-stroke, single-cylinder, air-cooled OHV engine with a cylinder capacity of 139CC, developing a power of 4HP and TCI ignition (Transistor Controlled Ignition).

Package contents:
•Equipment;
•Manual;
• Wrench for spark plugs + handle;
•Blades 360mm (mills) x 4 pcs.
Cutting depth 130-260 mm
Cylinder capacity 139 CC
Carburetor FULIN

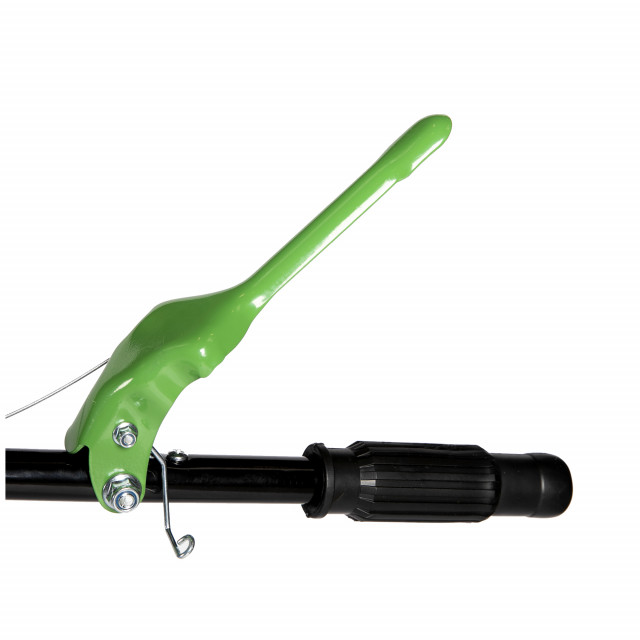

Safety handle control on the brake lever
Euro V fuel
Fuel consumption 340g/kw.h
Oil consumption Change after 25 hours of operation
Size 69x38x66.5cm
Cutting blade size 360mm (4 blades)

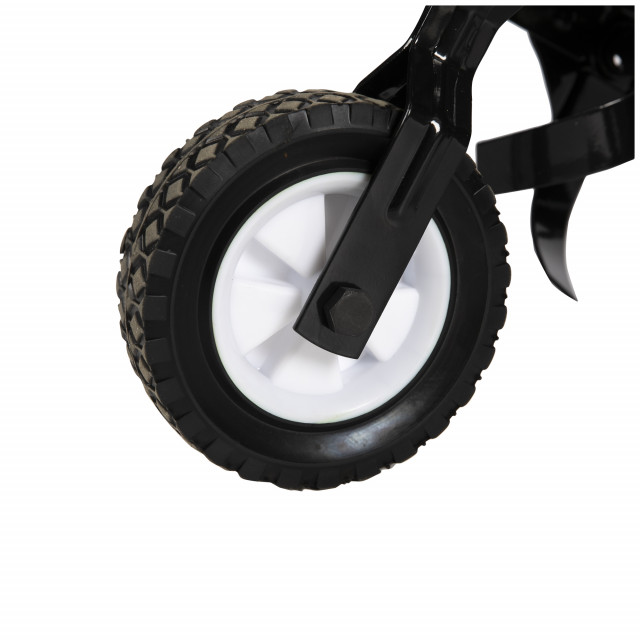

Wheel size 6 inches
Lighthouse No
Gross weight 32.5 kg
Net weight 29 kg
Cutting width 360mm (4 blades)
Brake lever Clutch disengagement
Material Aluminum/steel (Body material)
Power HP 4 HP
Revover oil 0.6L
Fuel tank 1.0L
Ignition type TCI (Transistor Controlled Ignition)
Engine type 4-stroke, single-cylinder, air-cooled OHV
Product type Tiller
Push type
Idling speed (rpm) 3000 rpm
Engine speed 2800 rpm
Gearbox oil (transmission) Self-lubricating
UM/bax 1 pc

Instruction manual:
