Motocultivator 7.5HP, 212CC, key start., differential, headlight
Our benefits
Description
Motocultivator 7.5HP, 212CC, key start., differential, headlight.

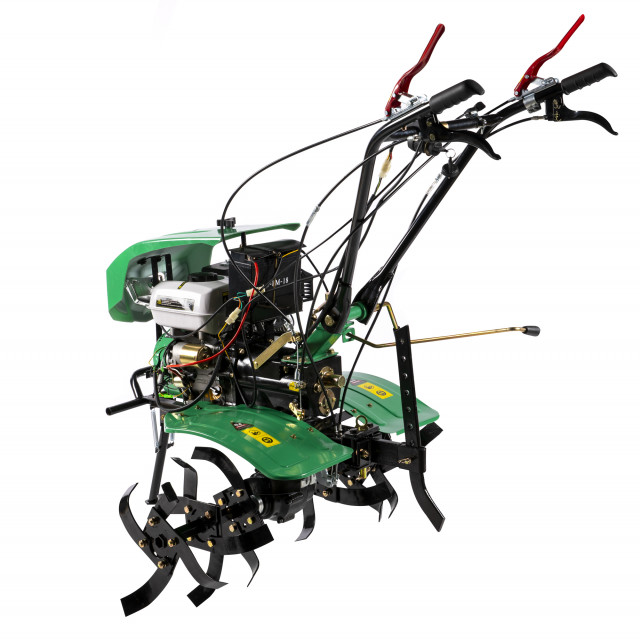

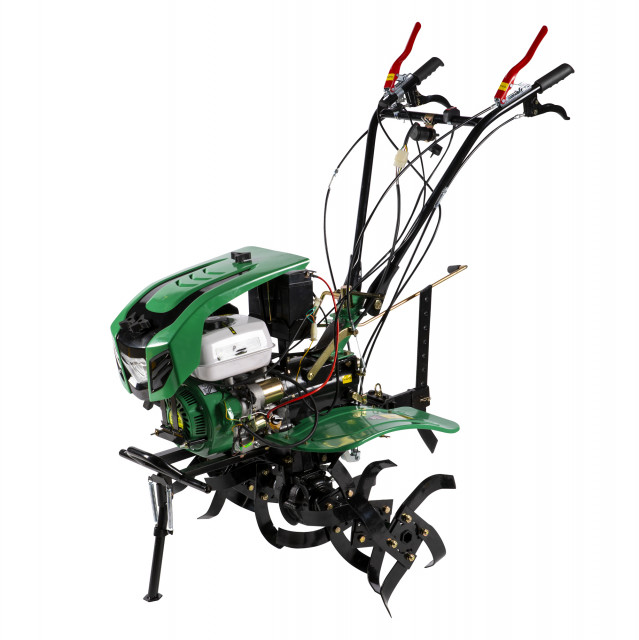

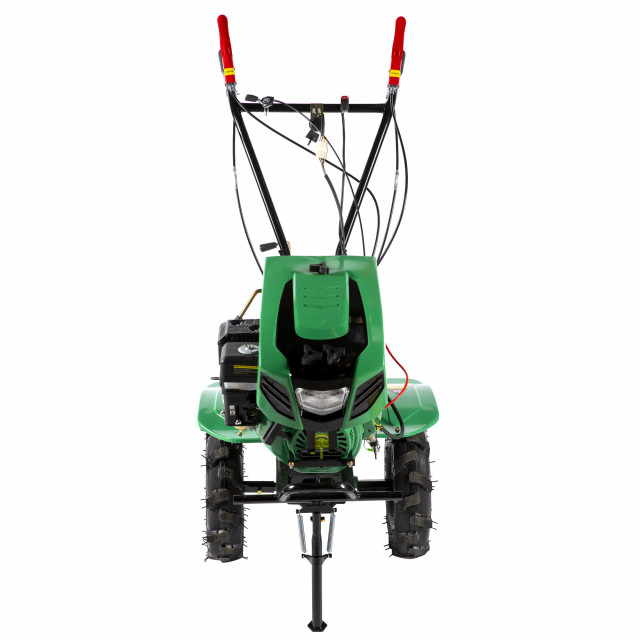

The 7.5HP, 212CC, electric start with 18A battery, differential direction, headlight, Small Farmer GF-2294 cultivator has small dimensions, is light, multi-functional and very efficient in the process of preparing the soil for cultivation.
It is equipped with a 4-stroke, single-cylinder, air-cooled OHV engine with a cylinder capacity of 212CC, developing a power of 7HP and TCI ignition (Transistor Controlled Ignition).
Package contents Motocultor 7.5HP, 212CC, electric start, differential, headlight Little Farmer GF-2294
•Equipment;
•Manual;
• Milling group;
•Wheel;
• Wheel sleeves;
• Milling group sleeves;
•Starting battery 12V, 18Ah.
Cutting depth 150 mm
Cylinder capacity 212 CC
Fuel Gasoline euro V
Carburetor P19
Insulation class Grade F (Generator set)
Electrical protection class Grade F (Generator set)
Fuel consumption 390g/kw.h
Oil consumption 6.8g/h
Size 880x450x665mm
Cutting blade size 1000X360 mm
Headlight Yes
Gross weight 109 kg
Net weight 100 kg
Cutting width 1000 mm - 3 groups of 4 pcs
Noise level ≤93dB（A）
Power HP 7.5 HP
Revover oil 0.6L
Fuel tank 3.6L

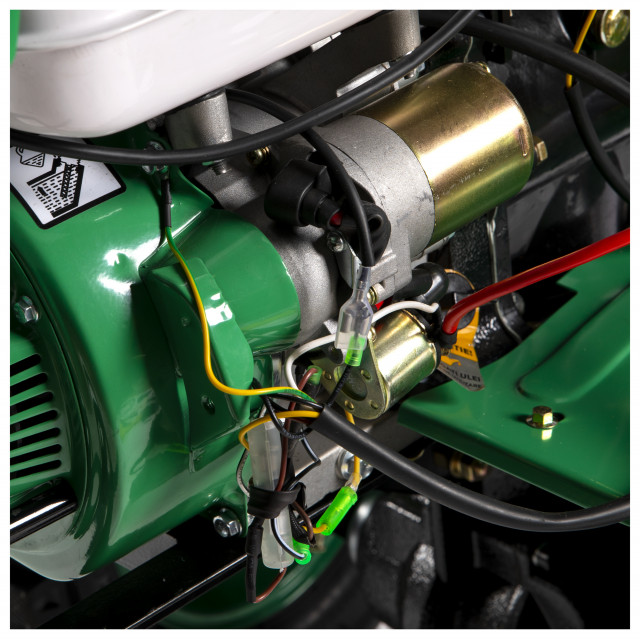

Starting system Electric start with 12V, 18Ah battery
Ignition type TCI (Transistor Controlled Ignition)
Engine type 4-stroke, single-cylinder, air-cooled OHV
Idling speed (rpm) 1500±150
Engine speed 3600±150
Engine oil SAE10W-30
UM/bax 1
Forward speed 3 forward speeds (50rpm/81rpm/131rpm)
Reverse speed 1 reverse speed (30rpm)
Instruction manual:
