Cultivator Detoolz 7HP, 212CC, speeds: 2 forward + 1 reverse

Description

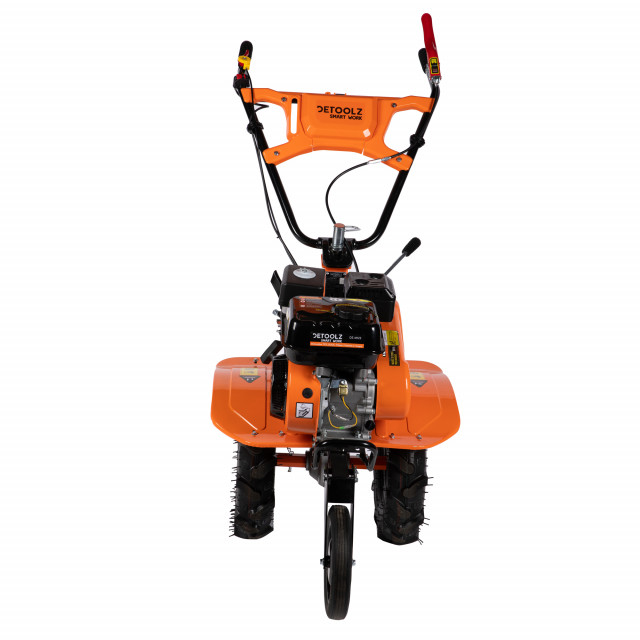

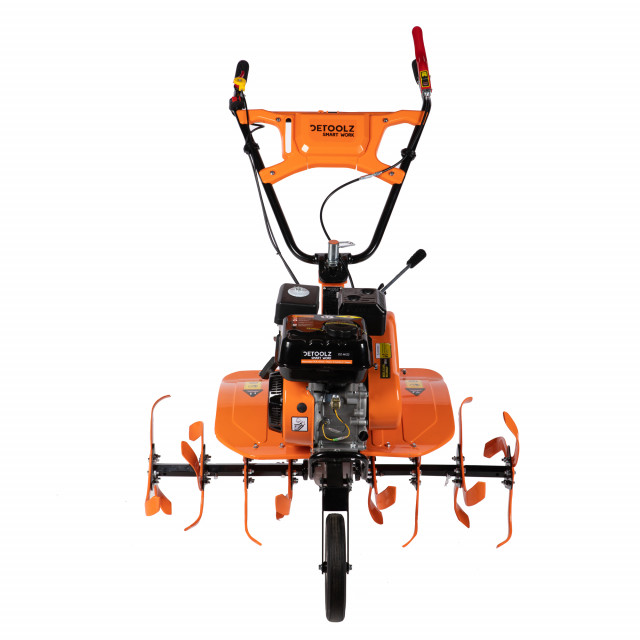

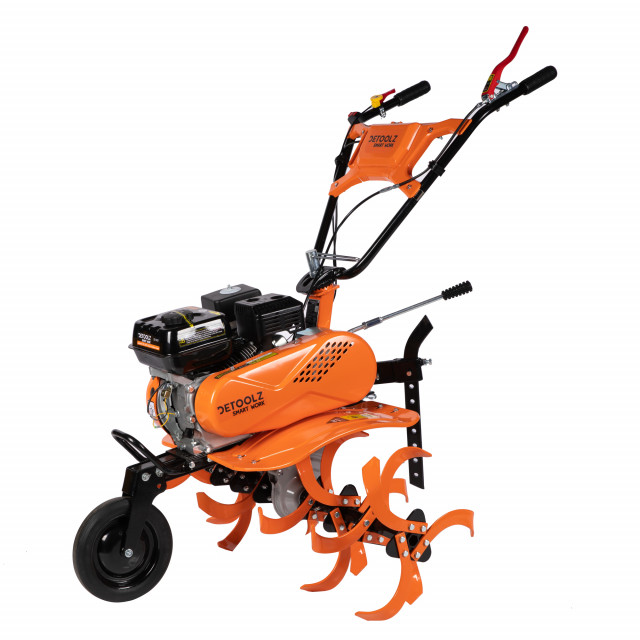

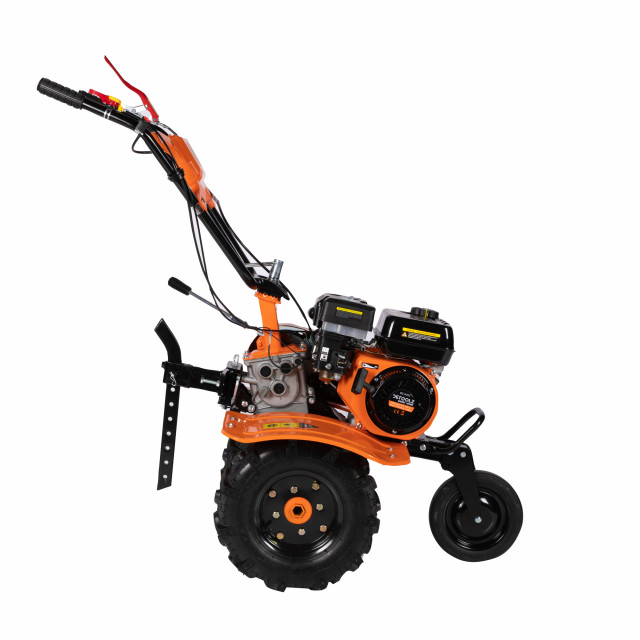

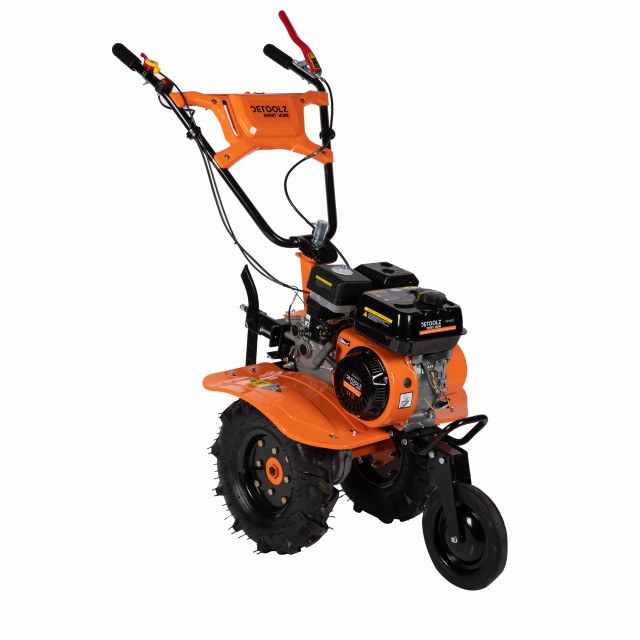

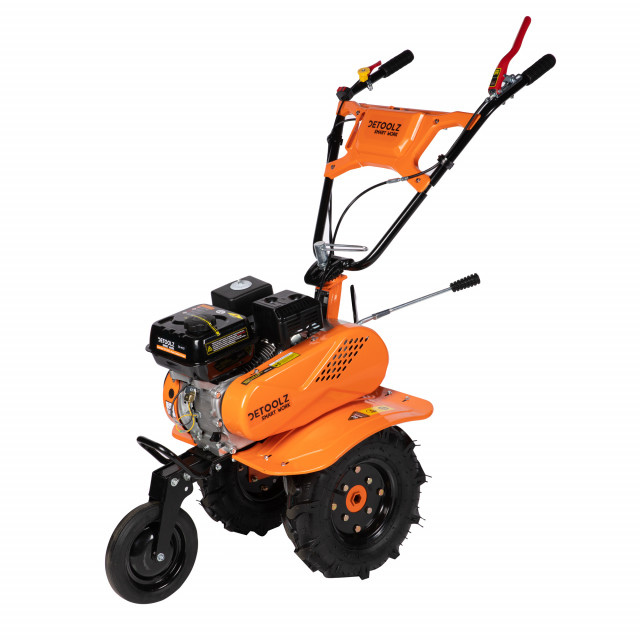

The 7HP, 212CC, three speed, two forward and one reverse, Detoolz DZ-M122 motor cultivator has small dimensions, is light, multi-functional and very efficient in the process of preparing the soil for cultivation. It is equipped with a 4-stroke, single-cylinder, air-cooled OHV engine with a cylinder capacity of 212CC, developing a power of 7HP and TCI ignition (Transistor Controlled Ignition). The product has a simple structure, troubleshooting is easy and has a low fuel consumption; it is the ideal product for micro-agriculture.

Package content of the 7HP, 212CC, Detoolz DZ-M122 motor cultivator:
•Equipment;
•Manual;
• 3 blades; 4 groups;
• Wheels 400‐8.
Actuation sufe drive Mechanics
Cutting depth 290 mm
Cylinder capacity 212 CC
Aluminum alloy transmission case
Insulation class Grade F (Generator set)
Fuel Gasoline
Fuel consumption ≥395g/kw.h
Oil consumption 6.8g/h
Gearbox 2 forward speeds + 1 reverse speed
Size 910X380X665mm

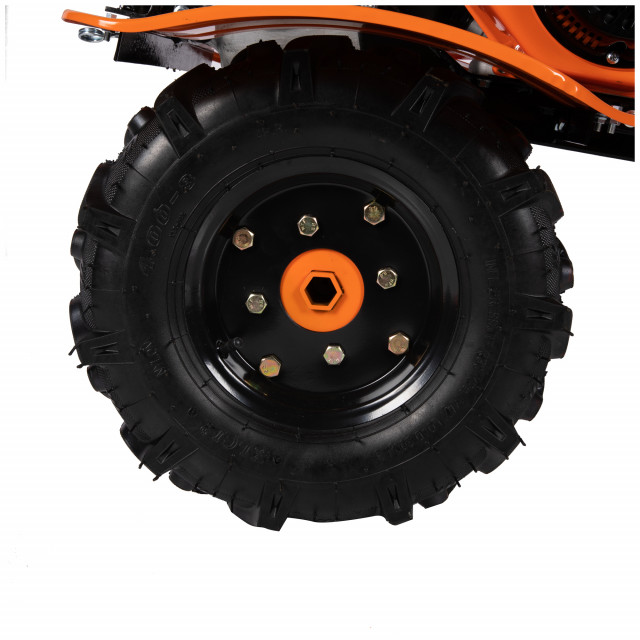

Wheel sizes 400-8
Gross weight 80 kg
Net weight 75 kg
Working width 900 mm
Brake lever Yes, standard
Noise level ≤93dB（A）
Power HP 7HP
Oil return 0.6 L
Fuel tank 3.6 L
Pull start system (manual)
Ignition type TCI (Transistor Controlled Ignition)

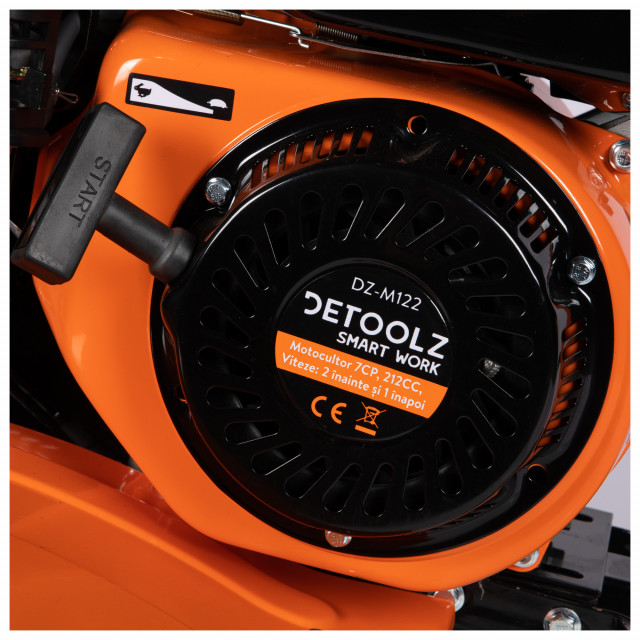

Engine type 4 strokes, single cylinder, OHV cooled with forced air
Product type Tiller
Transmission type Belts and chain
Engine speed 3600±150
Idle speed 1500±150
Gearbox (transmission) oil SAE10W‐30
Forward speed Gear I: 103 rpm; Speed ​​II: 141 rpm
Reverse speed 1 reverse speed: 77 rpm
