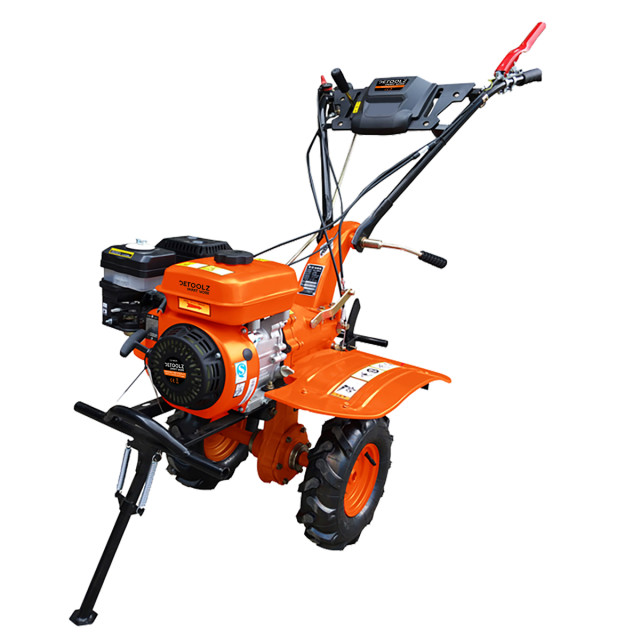

Cultivator Detoolz 7.5HP, 212CC, 4T, speeds: 2 forward + 1 reverse
Our benefits
Description
Cultivator Detoolz 7.5HP, 212CC, 4T, speeds: 2 forward + 1 reverse.
The Detoolz DZ-M126 7.5HP, 212CC, 4T, speed: 2 forward+1 reverse cultivator is equipped with a 4-stroke, single-cylinder, air-cooled OHV engine, with a cylinder capacity of 212cc, and develops a power of 7.5HP , with TCI ignition (Transistor Controlled Ignition). Starting is done manually, with the string.
It can climb hills (slight slope), it can work in water (slightly deep), it can go on rough terrain, it is flexible and easily changes direction. The DZ-M126 motor cultivator is specially designed for a varied range of soil works in plains, hilly regions, dry lands, rice fields, orchards, vegetable gardens and greenhouses, etc.
The main functions of the equipment are: milling (rotary ploughing), plowing and balling, and transport. In addition, after being equipped with a varied range of accessories, it can be used for picking crops, fertilizing land, sowing crops, etc. The product has a simple structure, troubleshooting is easy and has a low fuel consumption; it is an ideal equipment for micro-agriculture.
Package contents:
Power cultivator equipment
User manual
24 disc blades
Wheels 500-8
Actuation sufe drive Mechanics
Cylinder capacity 212 cc
Cast iron transmission case
Fuel consumption ≤395g/(kWh), 2.34 l/h
Oil consumption ≤6.5 g/kW.h
Gearbox 2 forward speeds + 1 reverse speed
Size 830x480x700 MM
Wheel sizes 500-8
Gross weight 91 kg
Net weight 81 kg
Working width 560-830 mm
Noise level 70 db(A)
Lighting system No
Pull start system (manual)
Clutch type Wet friction disc clutch
Ignition type TCI (Transistor Controlled Ignition)
Engine type 4 strokes, single cylinder, OHV cooled with forced air
Product type Tiller
Transmission type Conical pinions in oil
Engine speed 3600 rpm
Idle speed 1500 rpm
Fuel tank 3.6 L
Number of units per box 1
Fuel type Gasoline
Maximum power 7.5HP
Gearbox oil tank (transmission) 2.1L
Type of oil recommended by the factory SAE 10W/30
The dimensions of the hexagonal output shaft Φ23 mm
Maximum cutting depth 340 mm
Emergency lever Yes, standard
Horizontal handle adjustment Yes
