Cultivator 7.5HP, 212CC, speeds: 2 forward + 1 reverse, headlight
Our benefits
Description

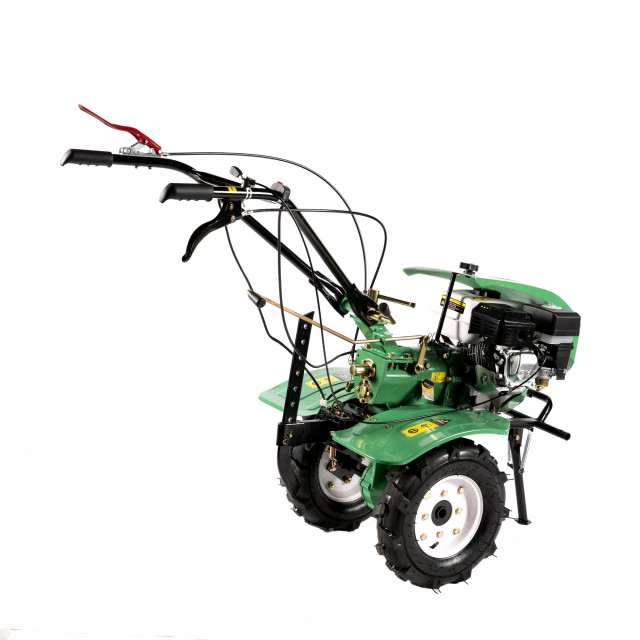

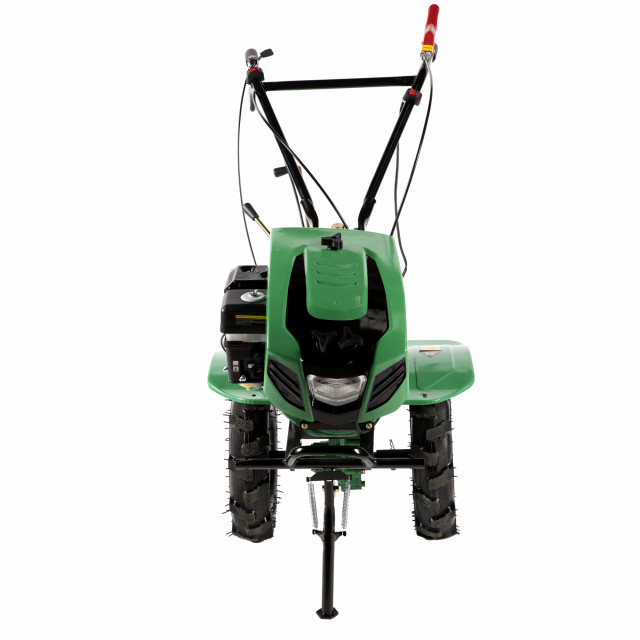

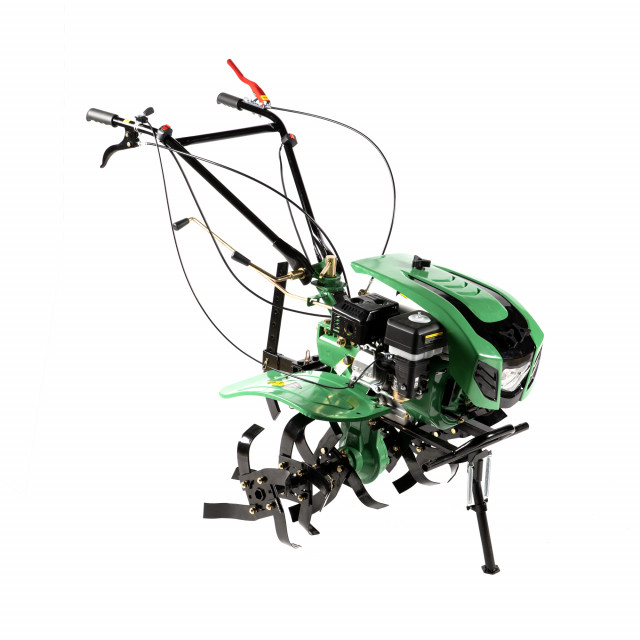

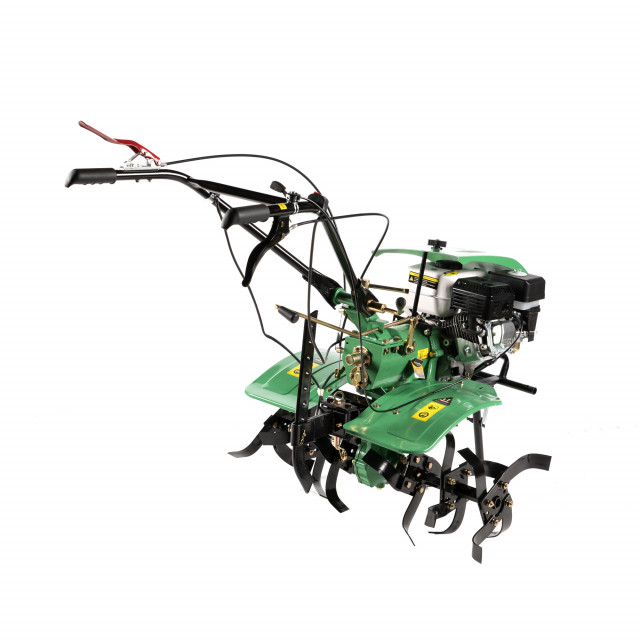

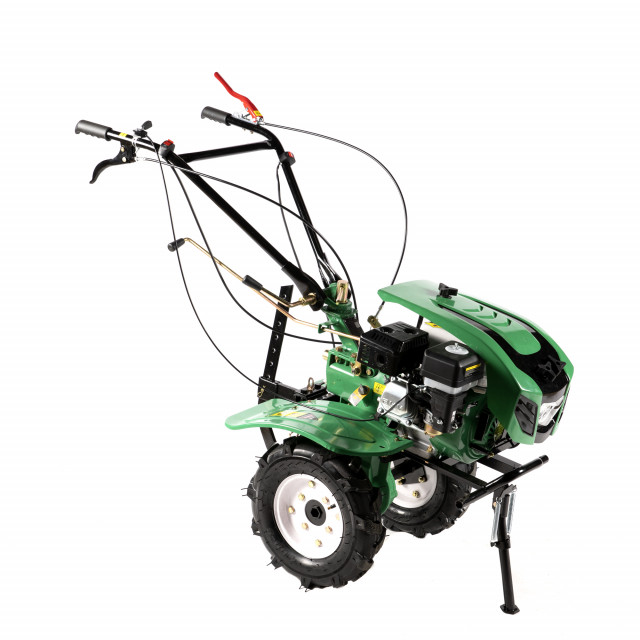

Cultivator 7.5HP, 212CC, speeds: 2 forward+1 backward, headlight, Small Farmer GF-2296 has small dimensions, is light, multi-functional and very efficient in the process of preparing the soil for cultivation. It is equipped with a 4-stroke, single-cylinder, air-cooled OHV engine with a cylinder capacity of 212CC, developing a power of 7.5HP and TCI ignition (Transistor Controlled Ignition).
Package content motor cultivator 7.5HP, 212CC, speeds: 2 forward+1 reverse, headlight, Little Farmer GF-2296:
•Equipment;
•Manual;
• Milling group;
•Wheel;
• Wheel sleeves;
• Milling group sleeves.
Cutting depth 150 mm
Cylinder capacity 212 CC
Fuel Gasoline euro V
Carburetor P19
Insulation class Grade F (Generator set)
Electrical protection class Grade F (Generator set)
Fuel consumption 390g/kw.h
Oil consumption 6.8g/h
Size 880x450x665 mm
Cutting blade size 1000x360 mm

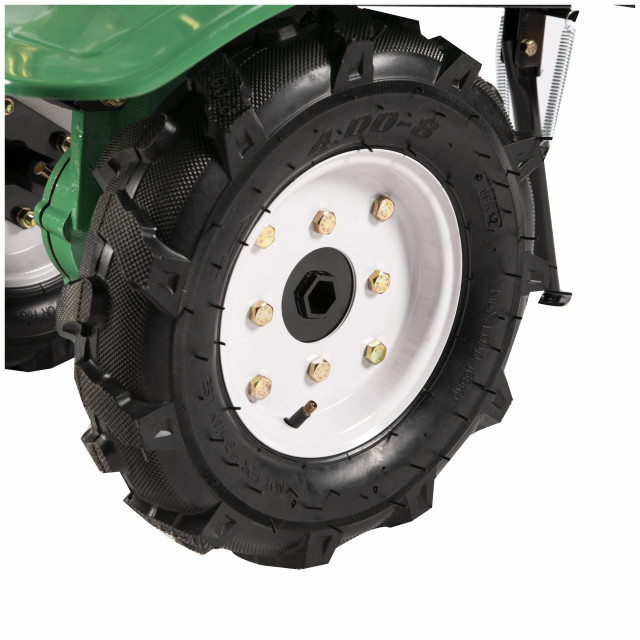

Wheel sizes 400-8
Headlight Yes
Gross weight 94 kg
Net weight 85 kg
Cutting width 1000 mm - 3 groups of 4 pcs
Noise level ≤93dB（A）
Power HP 7.5 HP
Revover oil 0.6L
Fuel tank 3.6L
Manual start system
Ignition type TCI (Transistor Controlled Ignition)

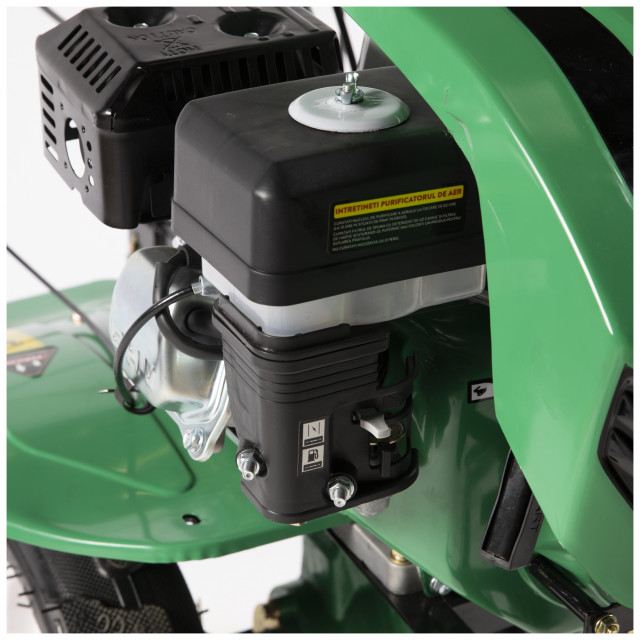

Engine type 4-stroke, single-cylinder, air-cooled OHV
Product type Tiller
Engine speed 3600±150
Idle speed 1500±150
Engine oil SAE10W-30
UM/bax 1
Forward speed 2 forward speeds (85rpm/130rpm)
Reverse speed 1 reverse speed (50rpm)
Instruction manual:
