Piston Piaggio / Gilera 40mm (2T 50cc) Meteor

Description

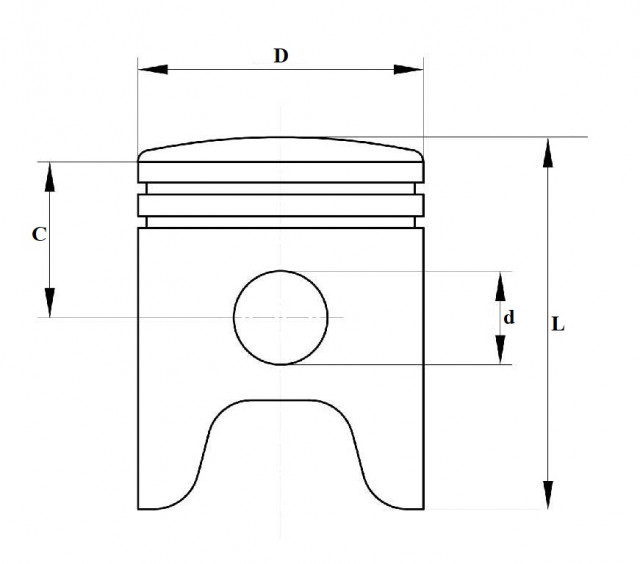

Dimensions - piston dimensions:

• piston diameter (D): 40.00 mm;

• middle bolt - piston head distance (C): 26.00 mm;

• cap 2 mm;

• total piston length (L): 54.00 mm.

Dimensions - bolt dimensions (d):

• bolt outer diameter: 12 mm;

• inside bolt diameter: 8 mm;

• bolt length: 33 mm.

Dimensions - segment dimensions:

• number of segments: 2;

• segment thickness: 2 segments 1.50 mm wide;

• segment type: G15H;

• closing segments: lateral;

• necromatous segments.

Compatibilities:

• Aprilia 50cc: Mojito Custom 2T (motorizare Piaggio) 04-10;

• Aprilia 50cc: Scarabeo 2T Euro 2 (motorizare Piaggio) 06-09;

• Aprilia 50cc: Scarabeo 2T Euro 2 (motorizare Piaggio) 10-12;

• Aprilia 50cc: Scarabeo 2T NET Euro 2 09;

• Aprilia 50cc: Scarabeo 2T NET Euro 2 10;

• Aprilia 50cc: Sport City One 2T Euro 3 08-11;

• Aprilia 50cc: SR H2O NEW (injectie) 04-09;

• Aprilia 50cc: SR H2O NEW (carburator) 04-09;

• Aprilia 50cc: SR 50 injectie MY 10-13;

• Aprilia 50cc: SR 50 carburator MY 10-13;

• Aprilia 50cc: SR Motard 2T Euro 3 12;

• Derbi 50cc: Atlantis Red Bullet Euro 1 03;

• Derbi 50cc: Atlantis Euro 2 07;

• Derbi 50cc: Atlantis Bullet 2T 10;

• Derbi 50cc: Atlantis Bullet 1st Edicion 03;

• Derbi 50cc: Atlantis Bullet 3rd Edicion Euro 2 05;

• Derbi 50cc: Atlantis City 1st Edicion 03;

• Derbi 50cc: Atlantis O2 MY 02;

• Derbi 50cc: Atlantis O2 Bullet 2nd Edicion Euro 2 03;

• Derbi 50cc: Atlantis O2 City 03;

• Derbi 50cc: Atlantis O2 (motorizare Piaggio) 3rd Edicion 02;

• Derbi 50cc: Atlantis Red Bullet Euro 2 03;

• Derbi 50cc: Atlantis Two Chic 3rd Edicion Euro 2 05;

• Derbi 50cc: Boulevard 2T Euro 2 09-12;

• Derbi 50cc: GP1 Euro 1 03;

• Derbi 50cc: GP1 Euro 2 03;

• Derbi 50cc: GP1 OPEN 2ver Euro 2 06-08;

• Derbi 50cc: GP1 OPEN 2ver Euro 2 06-09;

• Derbi 50cc: GP1 RACE 2ver Euro 2 05-07;

• Derbi 50cc: GP SERIES 02 Export 01;

• Derbi 50cc: Sonar 2T 09;

• Derbi 50cc: Variant Sport 2T 12;

• Gilera 50cc: DNA 00-02;

• Gilera 50cc: DNA GP Experience 03-04l;

• Gilera 50cc: DNA MY 05;

• Gilera 50cc: DNA 06;

• Gilera 50cc: Easy Moving 95-98;

• Gilera 50cc: Ice 01;

• Gilera 50cc: Runner 97-00;

• Gilera 50cc: Runner Poggiali 99-02;

• Gilera 50cc: Runner Purejet 97-02;

• Gilera 50cc: Runner Purejet 05-06;

• Gilera 50cc: Runner Purejet Race 05-06;

• Gilera 50cc: Runner Purejet Race 06;

• Gilera 50cc: Runner Purejet SC 05;

• Gilera 50cc: Runner Purejet SC 06;

• Gilera 50cc: Runner Purejet ST 08-09;

• Gilera 50cc: Runner Purejet 10-11;

• Gilera 50cc: Runner 50 SP 05;

• Gilera 50cc: Runner 50 SP 05-06;

• Gilera 50cc: Runner 50 SP 07;

• Gilera 50cc: Runner 50 SP 08-09;

• Gilera 50cc: Runner 50 SP 10-12;

• Gilera 50cc: Runner 50 SP Race 05;

• Gilera 50cc: Runner 50 SP SC 06;

• Gilera 50cc: Stalker 97-01;

• Gilera 50cc: Stalker 05-06;

• Gilera 50cc: Stalker 07-08;

• Gilera 50cc: Stalker 08-11;

• Gilera 50cc: Stalker Naked 08;

• Gilera 50cc: Stalker Special Edition 07-08;

• Gilera 50cc: Storm 96-;

• Gilera 50cc: Storm 06-08;

• Gilera 50cc: Storm 07;

• Piaggio 50cc: Diesis 01;

• Piaggio 50cc: Fly 2T 05;

• Piaggio 50cc: Fly 2T 06-07;

• Piaggio 50cc: Fly 2T 10-11;

• Piaggio 50cc: Free 92;

• Piaggio 50cc: Free FL 95-99;

• Piaggio 50cc: Free PPTT 00-01;

• Piaggio 50cc: Liberty 2T 97-04;

• Piaggio 50cc: Liberty 2T RST 97-04;

• Piaggio 50cc: Liberty 2T RST PTT 04-05;

• Piaggio 50cc: Liberty 2T 06;

• Piaggio 50cc: Liberty 2T 07;

• Piaggio 50cc: Liberty 2T 08;

• Piaggio 50cc: Liberty 2T MOC 09-12;

• Piaggio 50cc: Liberty 2T Sport 06;

• Piaggio 50cc: Liberty 2T Sport 07-08;

• Piaggio 50cc: Liberty 2T MOC 09-12;

• Piaggio 50cc: NRG 94-95;

• Piaggio 50cc: NRG 96;

• Piaggio 50cc: NRG Extreme 96-99;

• Piaggio 50cc: NRG MC2 96-97;

• Piaggio 50cc: NRG MC3 01-04;

• Piaggio 50cc: NRG MC3 DD 01-04;

• Piaggio 50cc: NRG MC3 DT 01-04;

• Piaggio 50cc: NRG Power DD 05;

• Piaggio 50cc: NRG Power DD 07-11;

• Piaggio 50cc: NRG Power DD Serie Speciale 07-12;

• Piaggio 50cc: NRG Power DT 05;

• Piaggio 50cc: NRG Power DT 06;

• Piaggio 50cc: NRG Power DT 07-11;

• Piaggio 50cc: NRG Power DT Serie Speciale 07;

• Piaggio 50cc: NRG Power DT Serie Speciale 07-12;

• Piaggio 50cc: NRG Power Purejet 05;

• Piaggio 50cc: NRG Power Purejet 05-06;

• Piaggio 50cc: NRG Power Purejet 07-08;

• Piaggio 50cc: NRG Power Purejet 10-11;

• Piaggio 50cc: NRG Purejet 02-04;

• Piaggio 50cc: Sfera 92-95;

• Piaggio 50cc: Sfera RST 95-97;

• Piaggio 50cc: Typhoon 93-95;

• Piaggio 50cc: Typhoon 96-97;

• Piaggio 50cc: Typhoon X 98-99;

• Piaggio 50cc: Typhoon XR 99-00;

• Piaggio 50cc: Typhoon MY 04;

• Piaggio 50cc: Typhoon 2T Euro 2 06;

• Piaggio 50cc: Typhoon 2T Euro 2 06-08;

• Piaggio 50cc: Typhoon 2T Euro 2 07-08;

• Piaggio 50cc: Typhoon 2T Serie Speciale Euro 2 07-08;

• Piaggio 50cc: Typhoon 2T Euro 2 09-11;

• Piaggio 50cc: Typhoon 2T Euro 2 10-12;

• Piaggio 50cc: Typhoon 2T Euro 3 11;

• Piaggio 50cc: Zip Catalyzed 99;

• Piaggio 50cc: Zip RST 97-99;

• Piaggio 50cc: Zip SP 97-02;

• Piaggio 50cc: Zip SP H2O 99-02;

• Piaggio 50cc: Zip 2T 09-12;

• Piaggio 50cc: Zip SP Euro 2 06-12;

• Piaggio 50cc: Zip 95;

• Piaggio 50cc: Zip Base 92-94;

• Piaggio 50cc: Zip Base 95-98;

• Piaggio 50cc: Zip Fast Rider 93-95;

• Piaggio 50cc: Zip Fast Rider RST 96-99;

• Piaggio 50cc: Zip RST 96-99;

• Piaggio 50cc: Zip SP 96-99;

• Vespa 50cc: Vespa ET2 96-04;

• Vespa 50cc: Vespa ET2 injectie 97-02;

• Vespa 50cc: Vespa LX 2T 05;

• Vespa 50cc: Vespa LX 2T 06-09;

• Vespa 50cc: Vespa LX 2T 06-09;

• Vespa 50cc: Vespa LX 2T 09-12;

• Vespa 50cc: Vespa LX 2T Touring 10-12;

• Vespa 50cc: Vespa LXV 2T 06-09;

• Vespa 50cc: Vespa LXV 2T 07;

• Vespa 50cc: Vespa LXV 2T Navy 07-08;

• Vespa 50cc: Vespa Primavera 2T 13-;

• Vespa 50cc: Vespa S 2T 07;

• Vespa 50cc: Vespa S 2T College 07-12;

• Vespa 50cc: Vespa Sprint 2T 14-.
