Piston for Aprilia AF1 Futura 125cc (54.00mm) Meteor

Description

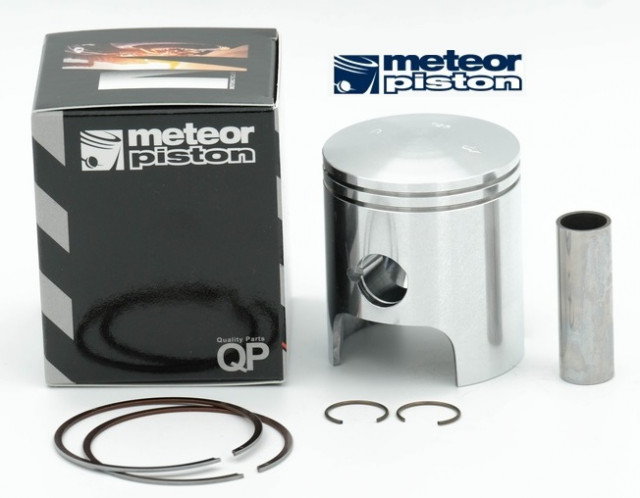

Piston Aprilia AF1 Futura 125cc (54.00mm) Meteor

The kit contains piston, bolt, fuses, segments.

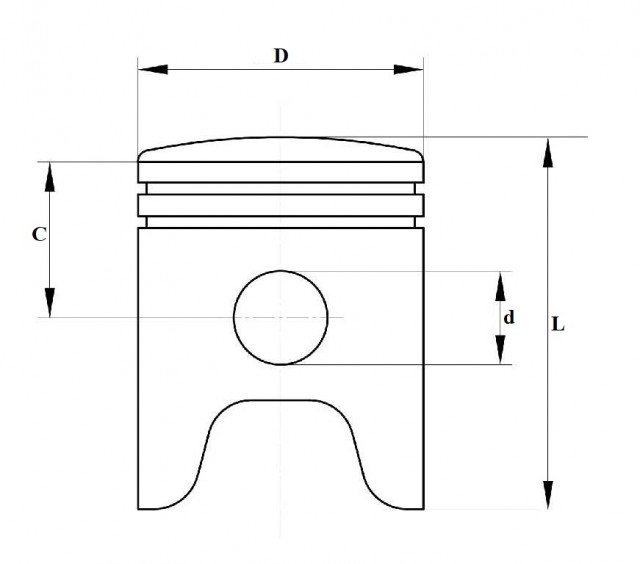

Dimensions - piston dimensions:

• piston diameter (D): 53.96 mm;

• middle bolt - piston head distance (C): 29.20 mm;

• cap: B-3.3 mm;

• total piston length (L): 63.30 mm.

Dimensions - bolt dimensions (d):

• bolt outer diameter: 15 mm;

• inside bolt diameter: 10 mm;

• bolt length: 45 mm.

Dimensions - segment dimensions:

• number of segments: 2;

• segment thickness: 1.2 mm;

• segment type: G30KP;

• closing segments: interior:

• chrome segments.

Compatibilities:

• Aprilia 125cc: AF1 Futura 2T 90-92;

• Aprilia 125cc: Classic 2T 95-99;

• Aprilia 125cc: Climber 2T 90-94;

• Aprilia 125cc: ETX 2T 98-;

• Aprilia 125cc: Pegaso 2T 91-94;

• Aprilia 125cc: RS 2T 95;

• Aprilia 125cc: RS 2T (122cc engine) 96-98;

• Aprilia 125cc: RS 2T (123cc engine) 96-98;

• Aprilia 125cc: RS 2T 99-05;

• Aprilia 125cc: RS Tuono 2T 03-04;

• Aprilia 125cc: RX 2T (122cc engine) 95-98;

• Aprilia 125cc: SX 2T (122cc engine) 95-98.

Manufacturer: Meteor (Italy)
