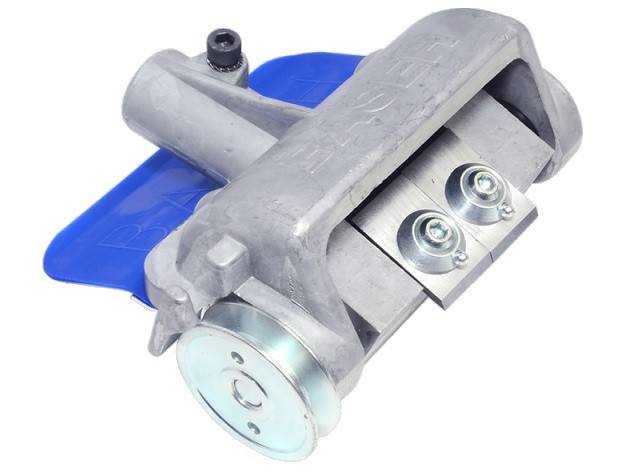

Standard peeling unit (simple)

Description

• *Delivered without arm and pot.

  The device is used for peeling logs, the branches and roots are easily removed.

  The metal limiter (located behind the blades) is constructed to maintain the same distance between the blades and the trunk along its entire length.

  Description: The device can be adapted to different models of chainsaws greater than 1.5 HP. The chainsaw rail must be replaced with the support arm. The clutch housing and rail guard plate must be removed prior to fitting the peeler. The clutch housing must be replaced with the pulley. To stretch the belt, screws are used to adjust the chain tension. Comfortable use on slopes.

  Weight: 2500 g

  It may happen that for certain models it is necessary to make small changes.

  The package contains:

  1 peeling unit,
  Dimensions:

  Main body width: 175mm
  Blade joint width: 120mm
  Blade width: 30mm
  Number of blades: 2
