Peeler for logs for chinese chainsaw 5200 (curved)
Our benefits
Description
Peeler for logs for chinese chainsaw 5200 (curved).
* Delivered with the arm and the dedicated pot for the Chinese chainsaw 5200
For other chainsaw models please contact us.
The device is used for peeling logs, branches and roots are easily removed.
It can be used as a device against wood beetles.
The metal limiter (located behind the blades) is built to maintain the same distance between the blades and the trunk along its entire length.
Description: The device can be adapted to different chainsaw models larger than 1.5 hp. The chainsaw rail must be replaced with the support arm. The clutch housing and rail guard must be removed before mounting the peeler. The clutch housing must be replaced with the pulley. Screws are used to adjust the chain tension to tighten the belt. Comfortable use on slopes.
Weight: 2500 g
It may happen that for some models it will be necessary to make small changes.

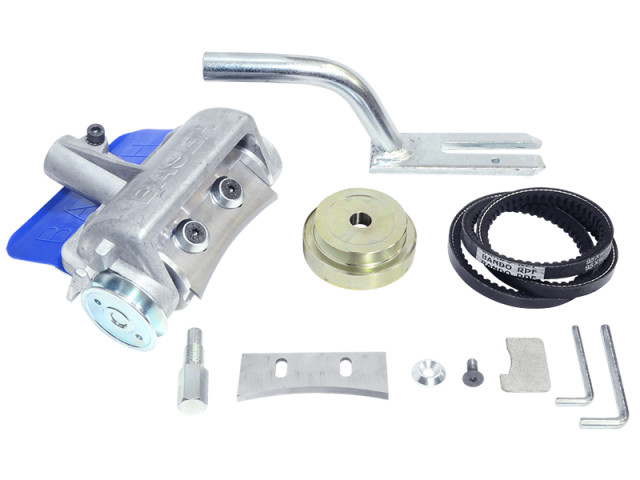

The package contains:
1 peeling unit,
replacement blades,
1 strap,
1 sleeve adapter
1 cylinder lock (tool to help remove the clutch)
Dimensions:
Main body width: 175 mm
Blade joint width: 120 mm
Blade width: 30 mm
Number of blades: 2
Assembly video:
