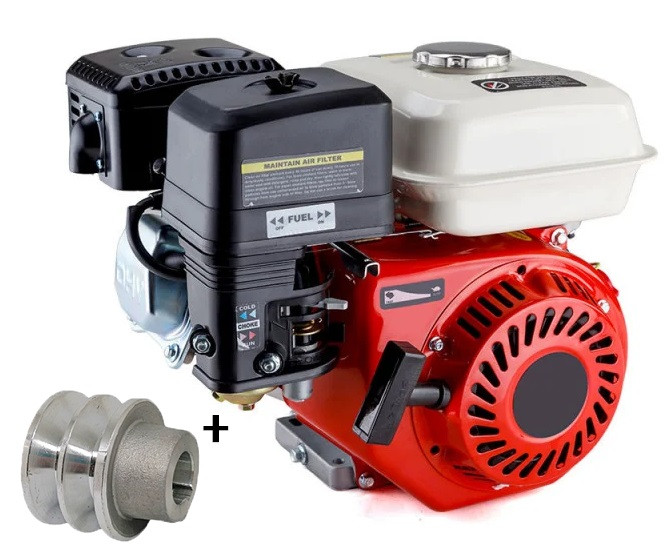

Tiller / motopump / motocultivator engine 6.5 HP

Description

Engine for tillers and other agricultural equipment, water pumps, industrial machines, generators etc.It replaces the engine Honda GX160 (6.5 hp).

Click here for the maintenance manual of this type of engine:

Characteristics:

- Engine: OHV, 4 stroke, 1 cylinder, air cooling, horizontal shaft

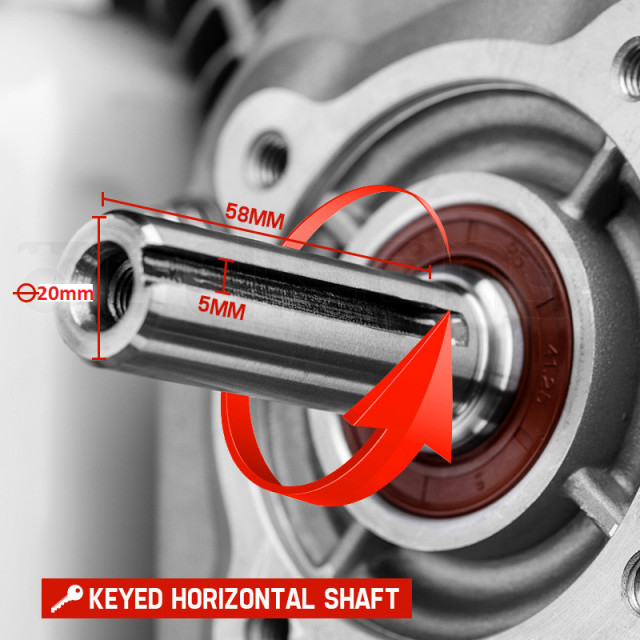

- Axle up, length of the shaft (only the outgoing part): 50mm

- Filter type: Oil filter

- Fuel: Petrol

- Cylindrical capacity: 168 cmc- Power: 6.5 hp 4800W (3600 rpm)

- Starter system: at the rope

- The direction of rotation of the shaft

- Oil bath capacity: 0.8 L

- Capacity of the tank: 3.6 L

- Piston diameter: 68mm;

- Piston stroke: 45mm

- Compression: 8.5: 1

- Consumption: 1l / h - max. 1.4L / h

- Weight: 15 kg

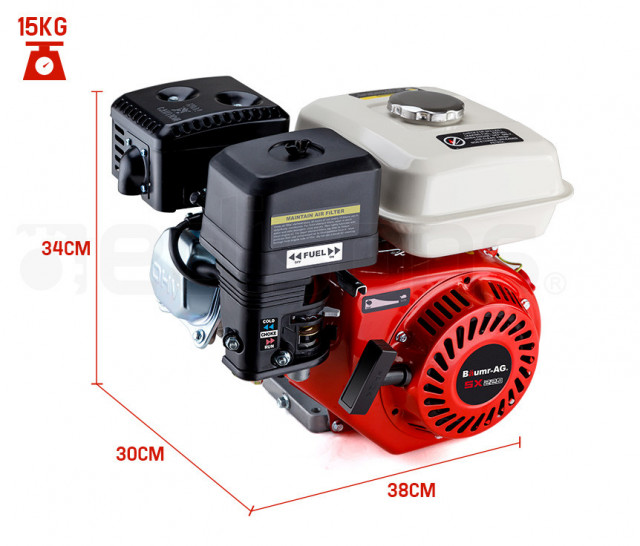

- Dimensions: 312x 362 x 346

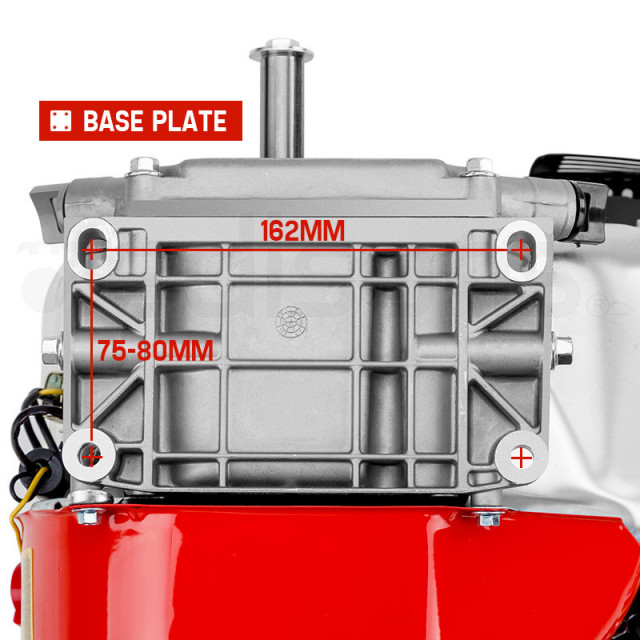

- Distance between clamps 65 mm
