Tiller engine 7HP (ax 20mm) New design
Our benefits
Description
170F gasoline engine with a new design (with splined shaft output, 20mm) 7 HP.
NEW DESIGN is intended for installation on tillers, construction machinery and other devices
Design features

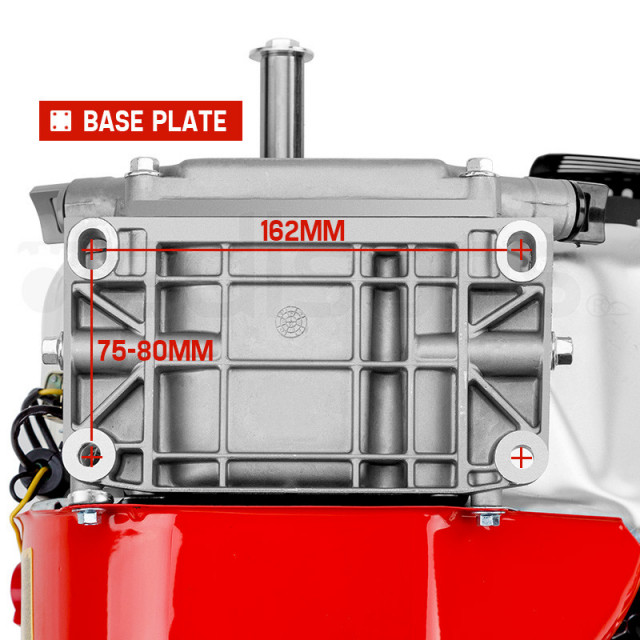

A four-stroke single-cylinder gasoline engine with a horizontal axis allows the installation of various transmission elements, including pulley, clutch, etc. A simple mounting system will allow you to integrate the engine without complex modifications and adapters, which is important for upgrading existing equipment.
Advantages of the model:
The air cooling system does not require complex maintenance. Ensures normal temperature conditions regardless of engine load. Specially shaped air intakes direct airflow to the most thermally stressed components for greater efficiency.
It is delivered without a pulley.
The presented product benefits from a guarantee according to Law no. 449/2003 ONLY IF IT IS MOUNTED IN A SPECIALIZED SERVICE!!
If the product is self-assembled, it NO LONGER BENEFITS FROM THE WARRANTY!!
Technical specifications:
- Engine: OHV, 4 strokes, 1 cylinder, air cooling, horizontal axis
- Spindle on wedge, spindle length (only the protruding part): 50mm, thickness 20mm (3/4)
-double belt pulley size: outer diameter 53mm, width 34mm
- Filter type: Dry filter
- Fuel: Gasoline
- Cylinder capacity: 208 cmc
- Power: 7 HP 5200W (3600 rpm)
- Starting system: on the string
-The direction of rotation of the shaft Counter-clockwise
- Oil sump capacity: 0.6 L, 15w40 oil
- Tank capacity: 3.6 L
- Piston diameter: 70mm;
- Piston stroke: 45mm
- Compression: 8.5:1
- Consumption: 1l/h - max. 1.4l/h
- Weight: 15 kg
- Dimensions: 312 x 362 x 346
Failure to comply with the service schedule will void the warranty!
Any operation performed on the engine will be done in a specialized workshop!
Failure to complete the table / incorrect completion leads to cancellation of the warranty.
Manual:
312 x 362 x 335 mm312 x 362 x 335 m
