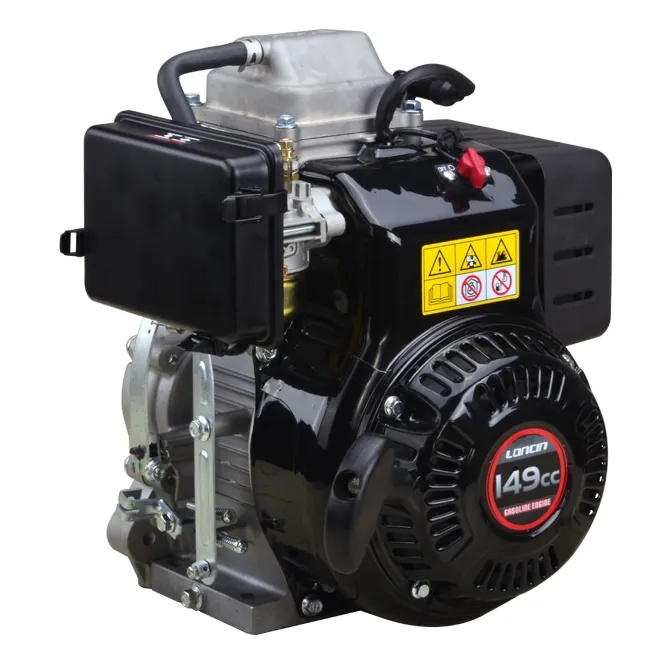

Rammer engine for LONCIN LC165F-3H
Our benefits
Description

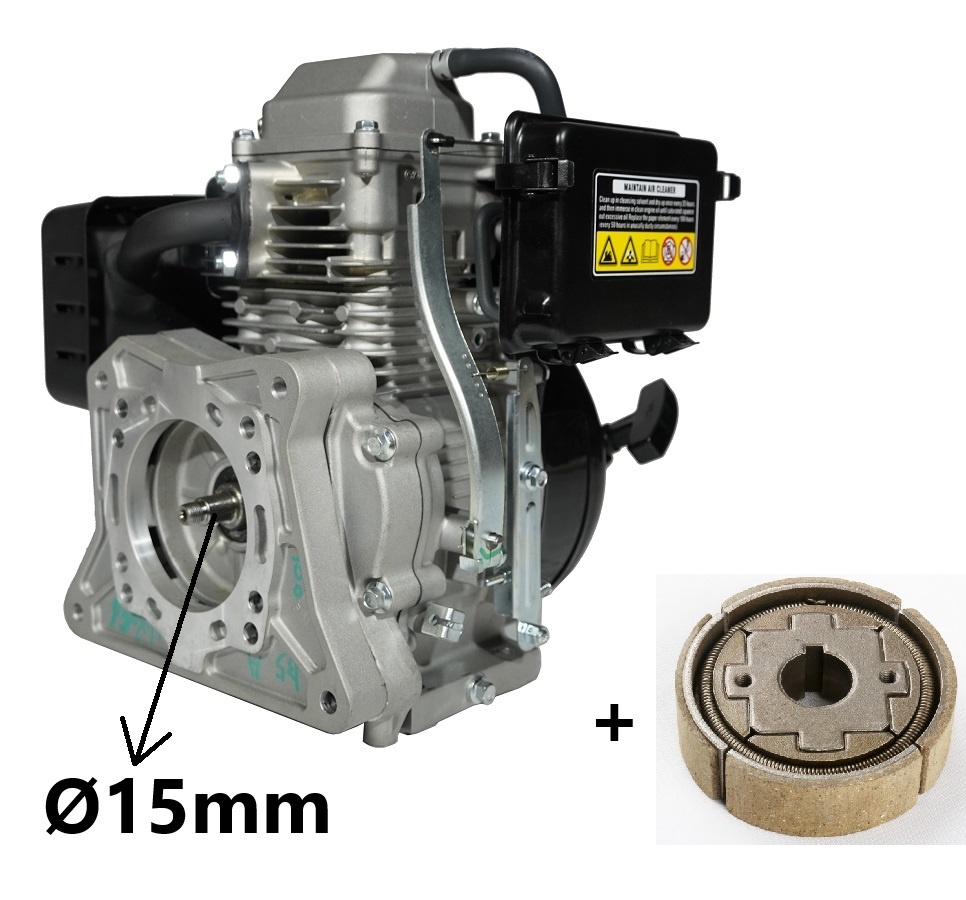

The Loncin LC165F-3H rammer engine is a single-cylinder, four-stroke, air-cooled internal combustion engine. This model is used as a drive device for rammers and vibrating plates. The central clutch allows the spindle to rotate only when the speed increases. The shaft does not rotate during no-load operation.
The LONCIN LC165F-3H engine is equipped with two oil injectors for oil filling, and it is also equipped with a low oil level sensor to protect the device. The improved design of the muffler and air filter ensures that the machine can be used in dusty conditions. To avoid vibrations during operation, the motor must be fixed on a fixed base. The engine is a reliable device, manufactured in accordance with innovative technologies and modern requirements that guarantee many years of trouble-free operation.
Taking into account the cooperation of this engine model with vibrators, vibrators, the components have been significantly improved, namely: tank cover, crankshaft, connecting rod, carburettor, starter. Improved muffler design, light weight and easy starting contribute to this model's excellent compatibility with vibratory hammers.
Technical characteristics:
Engine type: 4 stroke, 1 cylinder, forced air cooling, OHV
cylinder capacity: 149 cm³
Bore x stroke 65 x 45 mm
Maximum power 3.2 kW / 3.6 h.p. / 3600 rpm
Maximum torque 8.8 Nm
Spindle diameter: 25.4 mm
Oil bath volume 0.6 L
Dimensions 336 × 290 × 348 mm
Weight 16 kg
Significant advantages:
Low oil level sensor;
Cast iron cylinder liner;
Easy start;
Forced air cooling;
Low vibration.
