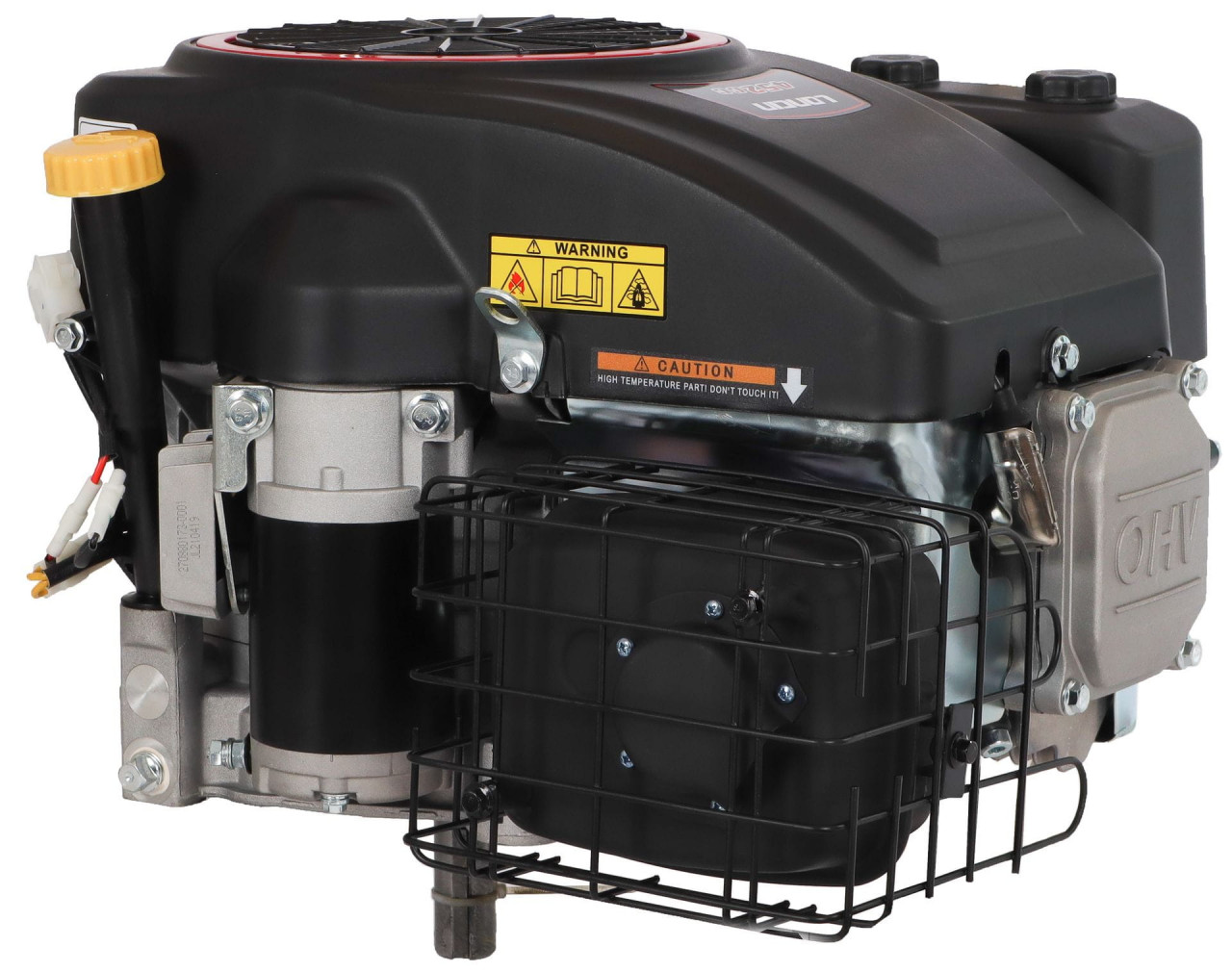

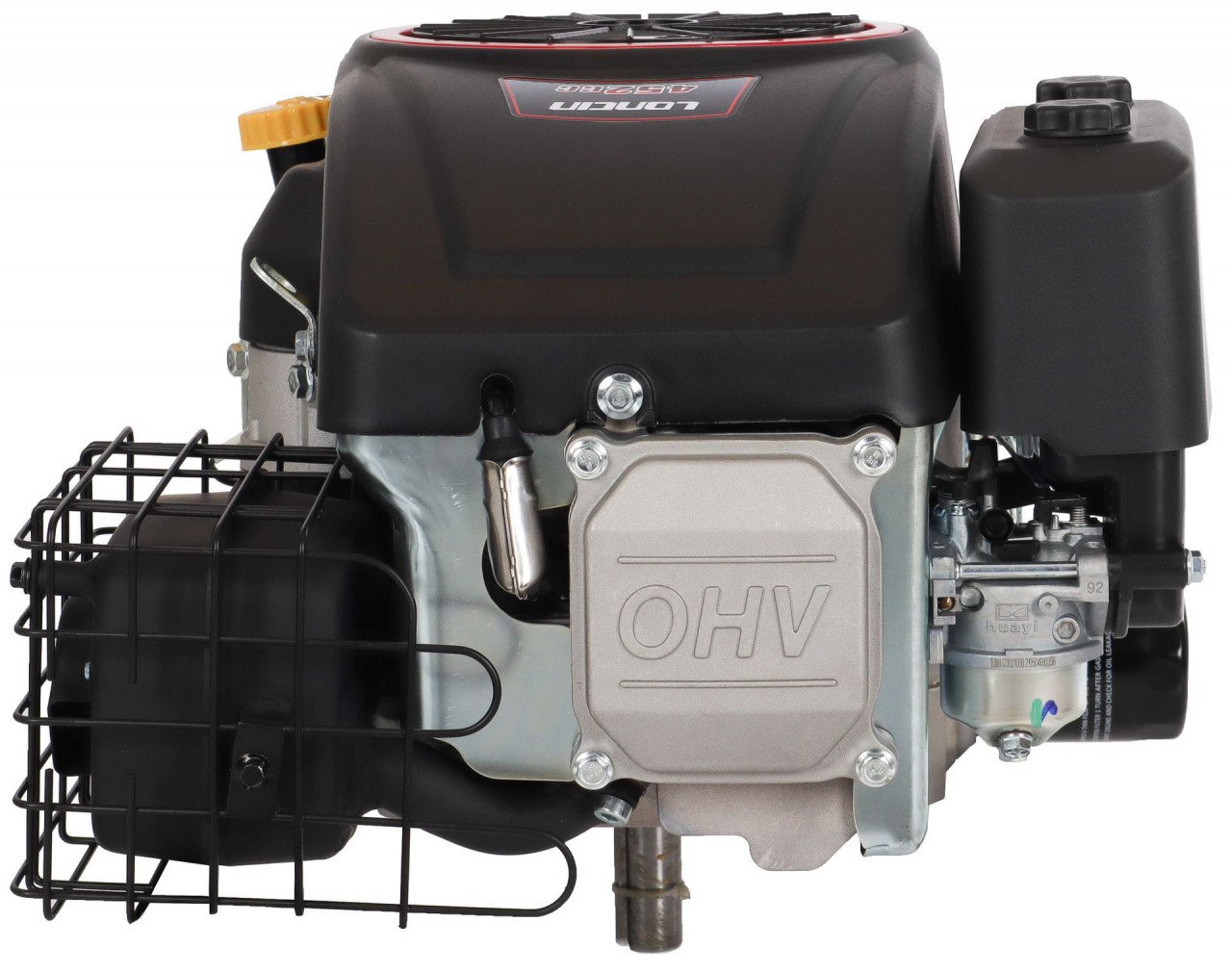

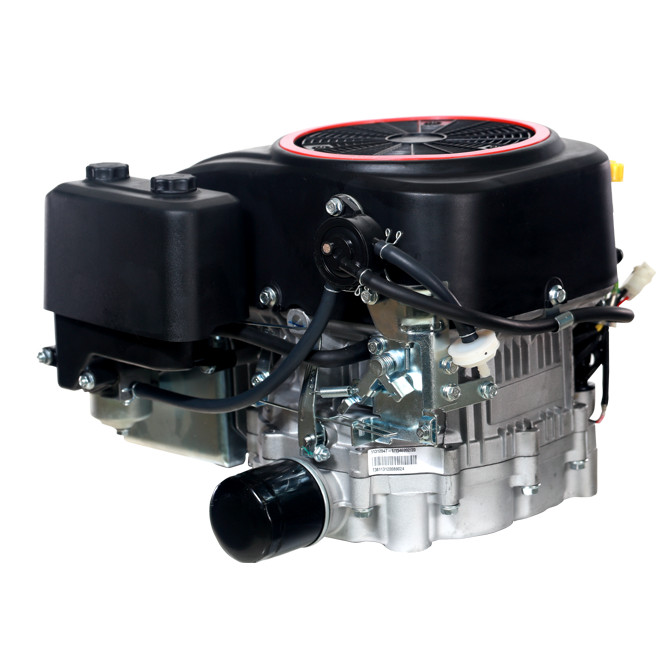

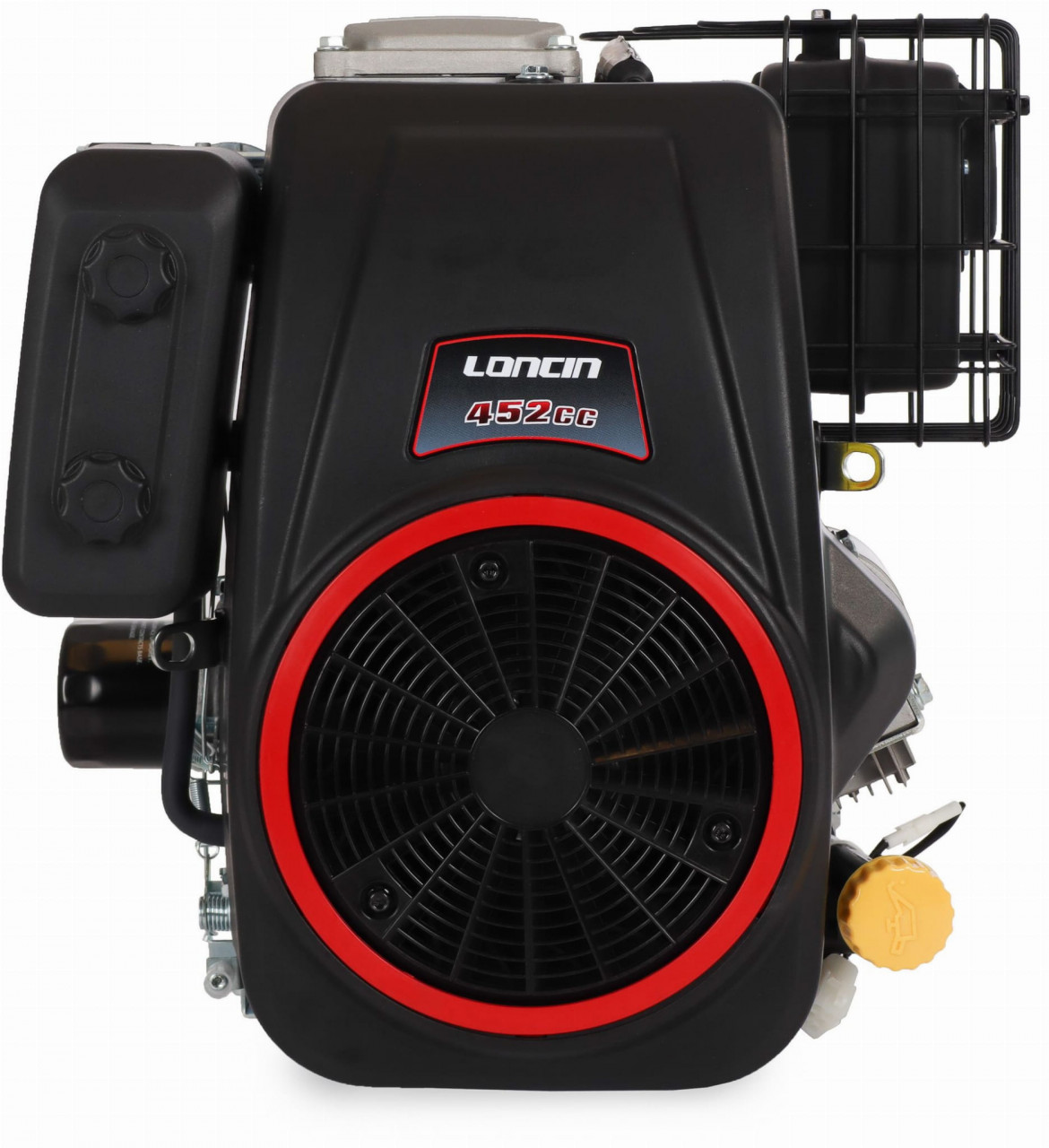

Loncin 12.5 CP tractor engine, vertical shaft (25.4 mm), 452 cc
Our benefits
Description
Loncin 12.5 CP tractor engine, vertical shaft (25.4 mm), 452 cc
Engine used in tractors: Stiga, Oleo-Mac, AL-KO, Alpina, Mountfield, McCulloch, Husqvarna, Stihl, Viking, Jonsered, Emak, Partner, Cedrus, SOLO
Technical specifications:
The Loncin LC1P92F-1 engine is a single-cylinder, four-stroke petrol engine with a power output of 12.5 CP and a displacement of 452 cm³.
The engine delivers a maximum power output of 12.5 CP at 3,600 rpm and a maximum torque of 27 Nm available from 2,600 rpm.

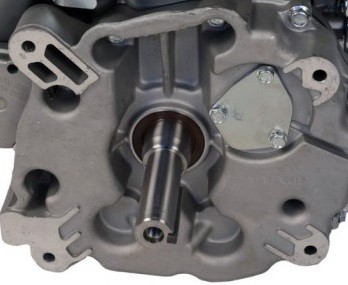

The engine’s crankshaft has a diameter and length of 25.4 x 80 mm.
External dimensions of the engine: length 432 x width 388 x height 300.
Manufacturer – LONCIN
Model: LC1P92F-1
Maximum power: 9.2 kW / 12.5 CP / 3,600 rpm
Engine capacity: 452 cm³
Max. torque: 27 Nm
Bore x stroke: 92 mm x 68 mm
Engine type: vertical shaft

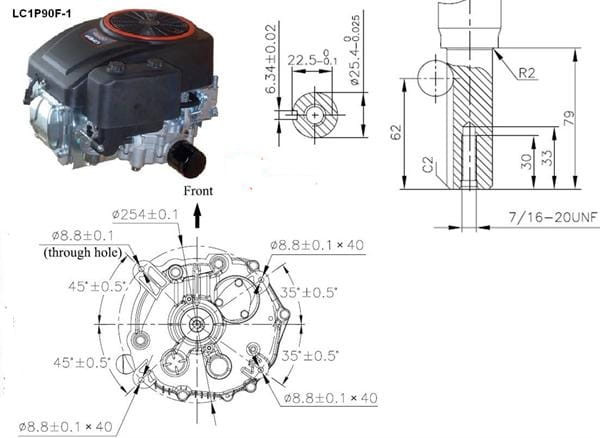

Shaft dimensions: 25.4 mm × 80 mm
Oil sump capacity: 1.2 litres
Engine external dimensions: 432 x 388 x 300 mm
Oil filter: included
Cast iron
cylinder liner Exhaust pipe: included
Electric
starter Alternator
Voltage
regulator Fuel
pump Lubrication system: pressure, oil
pump Crankshaft with double
bearings Starter: electric
Exhaust emissions standard: Euro 5, in accordance with the European
Union directive Weight: 34 kg
The optimised balancing system reduces vibrations and results in smoother running.
• single camshaft (OHV), the best design and lower engine temperatures.
• the secondary oil filtration system improves engine lubrication, which reduces wear and extends the
engine’s service life• The cast-iron liners not only ensure efficient lubrication but also make the engine more resistant to abrasion, thereby extending its service life.
• The robust engine casing and reinforced crankshaft make the engine more reliable and durable.
Manufacturer: Loncin
