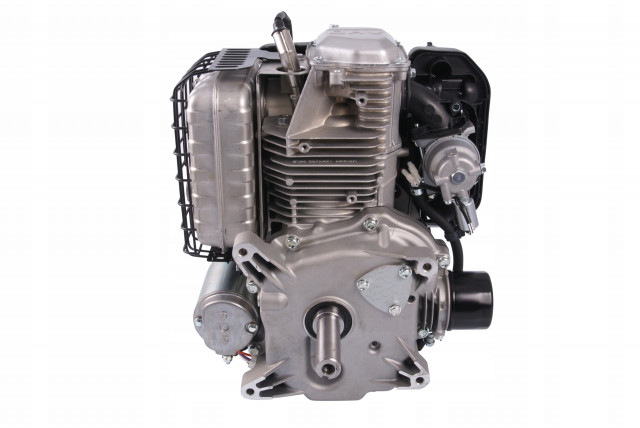

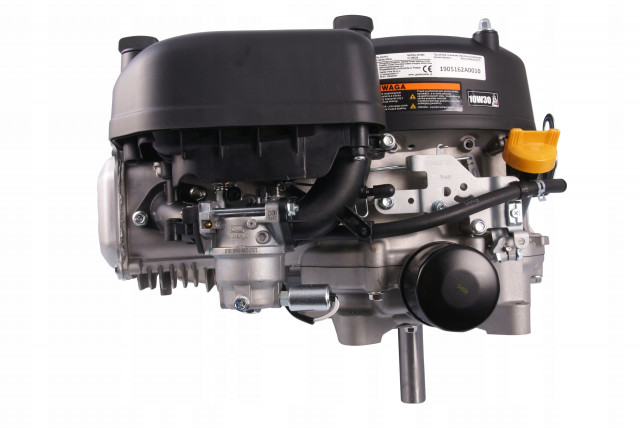

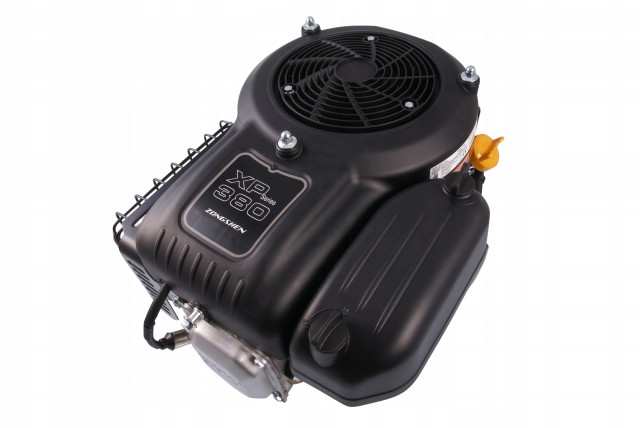

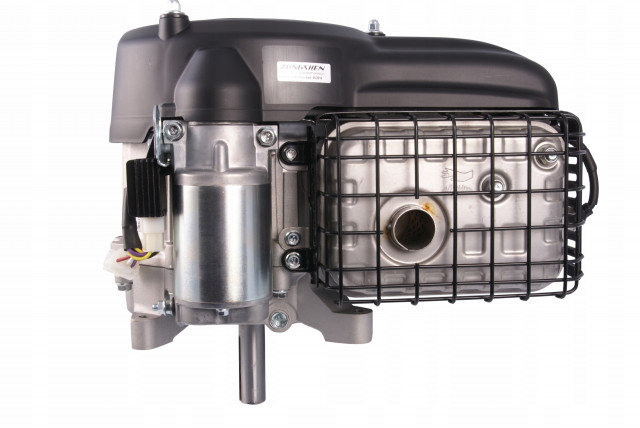

Engine with vertical ax Zongshen XP380A (ax 25.4 Ø - 87mm) 11.5 HP (for tractors)
Our benefits
Description
Zongshen XP380A vertical axle motor (25.4 Ø - 87mm axle) 11.5 hp (for tractors)
Benefit from free shipping on this product!
Characteristics:
Manufacturer - ZONGSHEN
Model - XP380A
Engine capacity - 380 cc
Max power - 11.5 hp / 3600 rpm
Max torque - 24.5 N.m / 2750 rpm
Lubrication - stammering system
Cast iron cylinder liner yes
Carburetor with electromagnetic nozzle
Oil filter - yes
Silent
Start - electric
Electric motor - yes
Voltage regulator - yes
Fuel pump
Oil bath capacity - 1.4 L

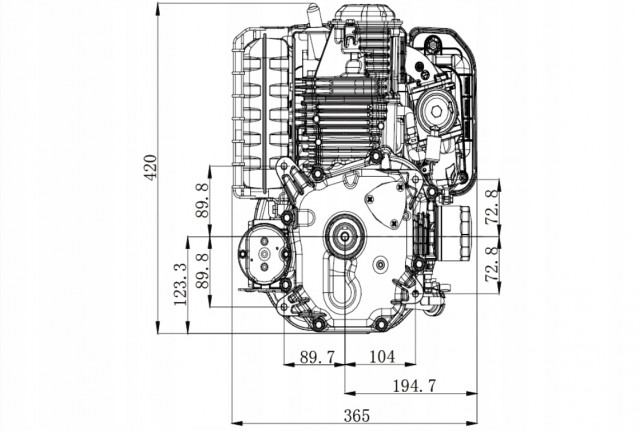

Dimensions - (L x W x H) 420 x 365 x 362 mm
* For other sizes please consult the product images
Frame mounting - 4 screws

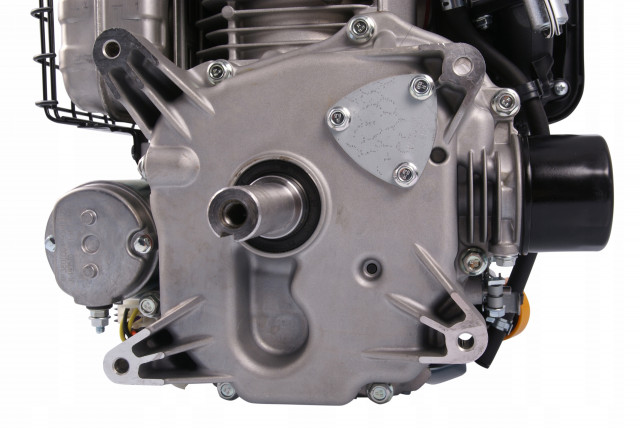

Shaft diameter - 25.4 mm
Shaft length - 80 mm (from shaft 87 mm)
Weight - 26 kg
The engine is delivered without oil!
* There are no threads in the holes that secure the frame motor - you have to make them yourself when mounting (screws not included)
The biggest advantage of the XP380A engine is its compact size, so it can be installed even on the smallest tractors. Despite the fact that it is not much bigger than its lawn mowers, it is fully equipped with oil filter, voltage regulator, carburetor with electromagnetic nozzle, silencers, electric motor.
The Zongshen XP380A engine is widely used in agricultural equipment, such as small tractors.
Robust and reliable engine, suitable for professional use, which is also characterized by low fuel consumption.
Zongshen engines are of high quality and reliability obtained thanks to an extensive research and development department.
312 x 362 x 335 m
