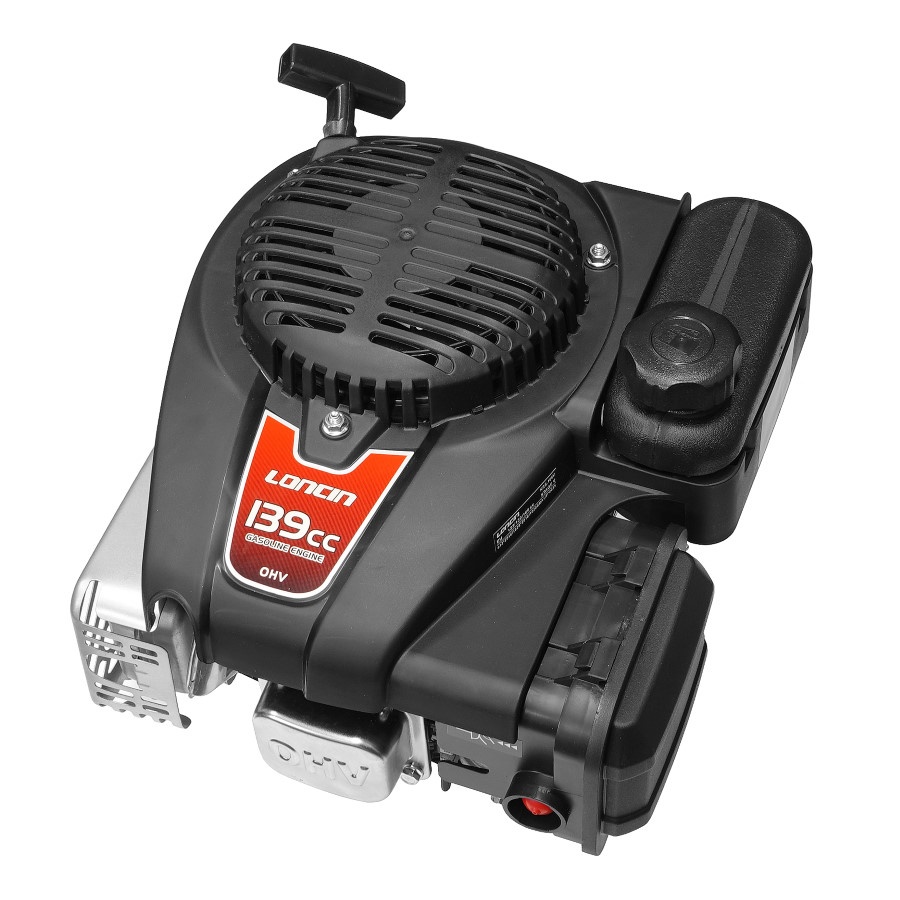

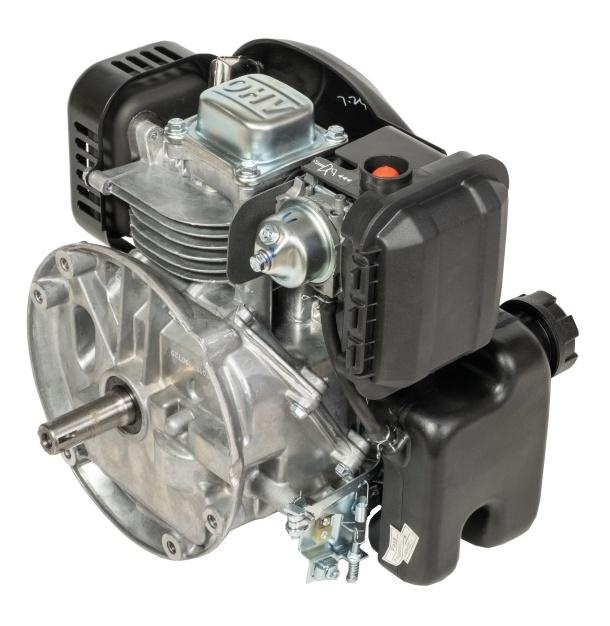

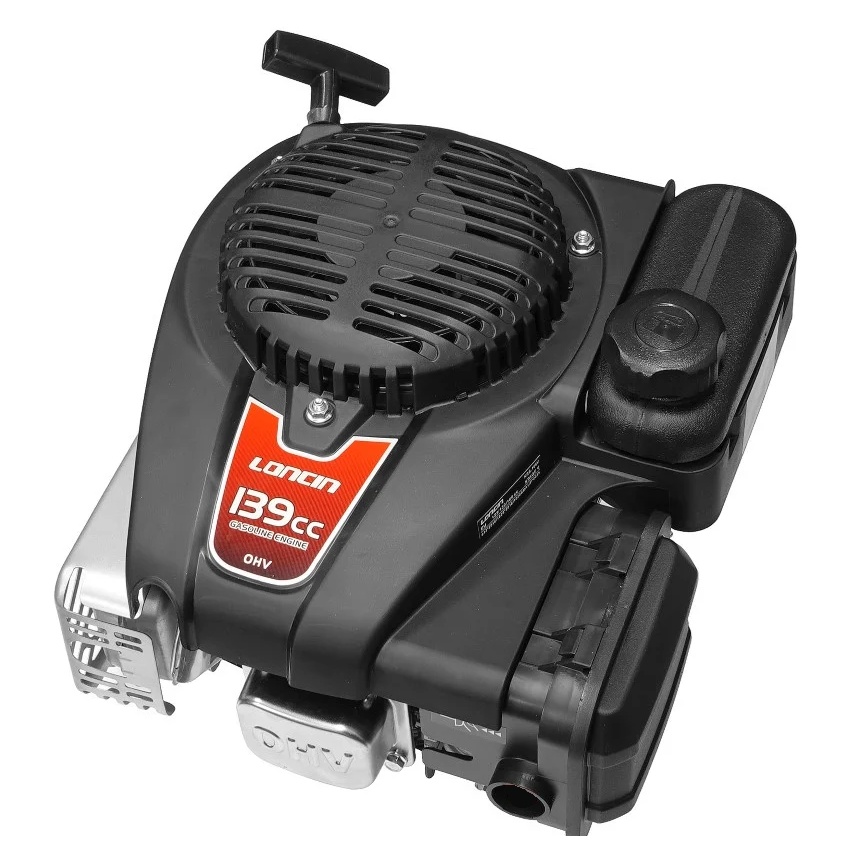

Engine Loncin LC1P65FE-F 4 HP vertical axle (22.2mm x 70mm)

Description

Engine Loncin LC1P65FE-F- 2.7 kW/3600 rpm - shaft 22,2mm x 70mm - EURO 5 (with primer)

Motor for cultivators, motor pumps, agricultural equipment, water pumps, industrial machinery, generators, etc. Loncin 20 HP vertical axis.

Technical specifications:

Shaft: Cylinder, Straight

Shaft diameter: Ø22 x 70mm

Model: LC1P65FE-B

Oil Bath Capacity (l): 0.55

Spark Plug Gap: 0.7-0.8 mm

Spark Plug: F7RTC

Idling speed (rpm): 1800±15

Oil Change (First Review): 10 hours

Power(HP): 4

Power (KW): 2.7

Speed ​​(RPM): 3600

Engine Type: Mono cylinder, 4T, air cooling, OHV

Maximum Torque (Nxm/rpm): 8.8/2500

Fuel consumption (g/Kwh): 395

Fuel Tank (L): 1.2

Transmission: Pinions in the oil sump

Bore x Stroke(mm): 65x48

Cylinder capacity (cmc): 139

Compression Ratio: 8.7:1

Starting: Recoil starter

Valve: Inlet: 0.1~0.15mm Outlet: 0.15~0.20mm

Filter: Semi Wet, in an oil bath

Net Weight (Kg): 12

Dimensions (mm): 430x380x380

Noise (db(A)): -

Manufacturer: Loncin
