Engine for tiller Zongshen GB200 6.5 HP (AX CONIC)

Description

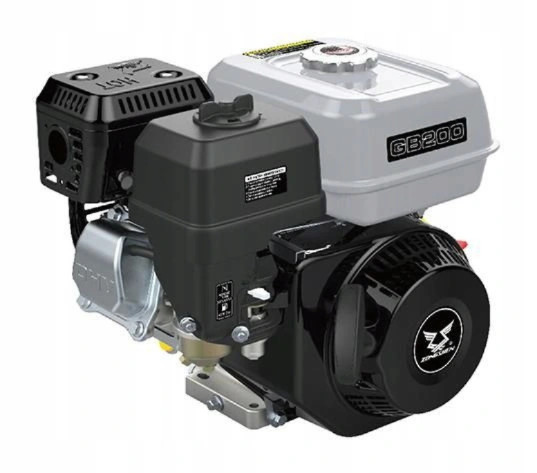

Motor Zongshen GB200

Manufacturer - Zongshen; Model - GB200 (AX CONIC) - for generator;

Technical specifications:

Engine type - petrol, single-cylinder, four-stroke, OHV, air-cooled
Power - 6.5 hp / 3600 rpm
Torque - 10.7 / 2500 N.m / rpm
Cylindrical capacity - 196 cm3
Lubrication system capacity - 0.6 L
Fuel tank capacity - 2.6 L

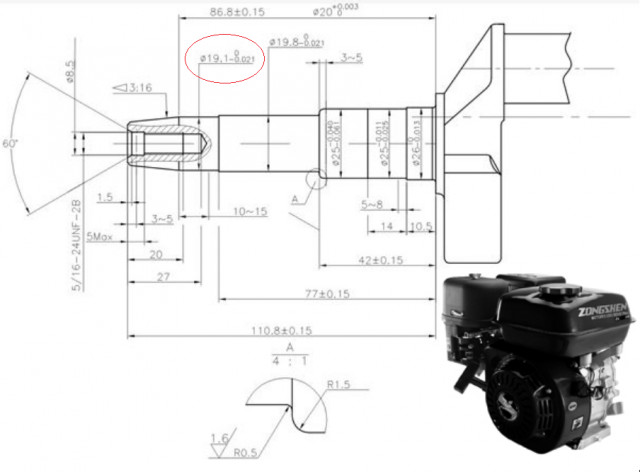

Conical shaft (for dimensions please consult the product images)
Seal shaft length - 110 mm

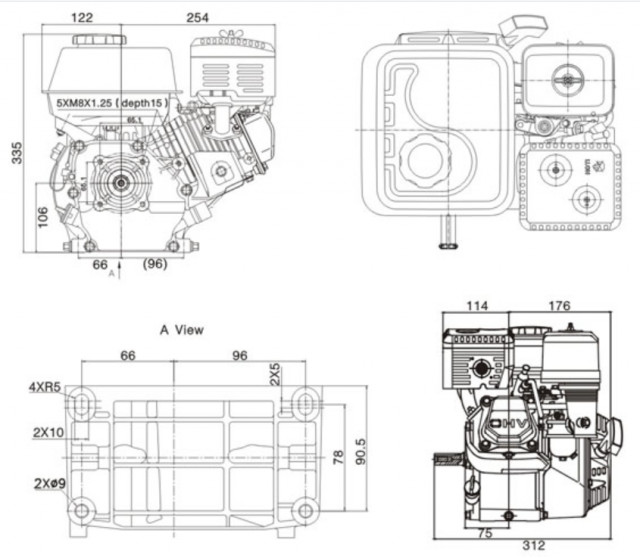

Dimensions - 415 x 365 x 380 mm
Weight without oil or gasoline - 15 kg
Oil level sensor - yes
Contact switch - yes
Air filter: paper + sponge
Manual start (on the string)
* The engine is delivered without oil!

The Zongshen GB200 engine is a more compact version of the 168FB engine, which is widely used in

constructions, such as power generators.

Its design is based on the Honda GX160 engines, but the muffler and air filter are slightly smaller, which makes it more effective.

easy to adapt to the car when space is limited.

Robust and reliable engine, suitable for professional use, which is also characterized by low fuel consumption. Especially recommended for construction companies.

Zongshen engines are of high quality and reliability obtained thanks to an extensive research and development department.
