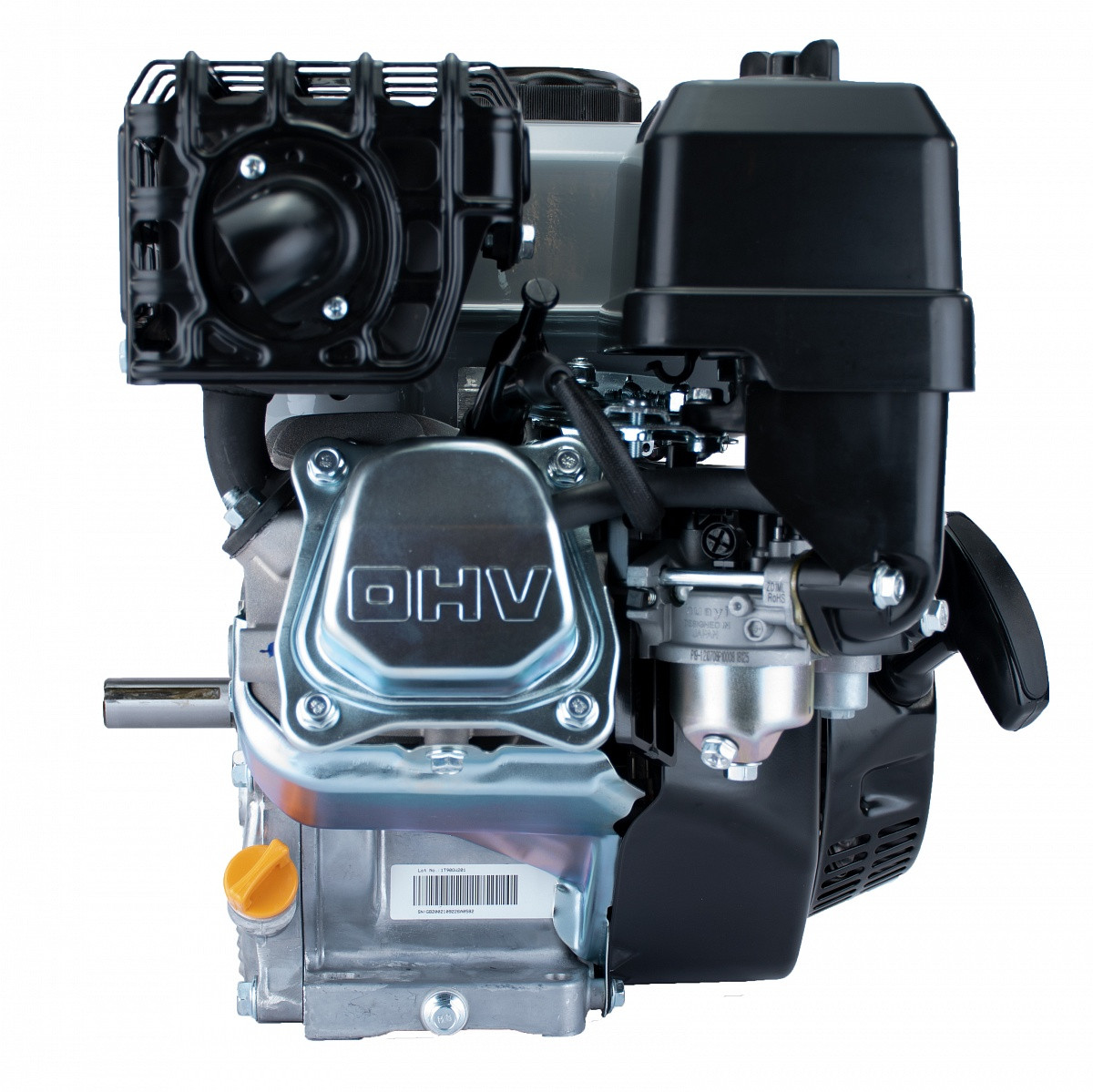

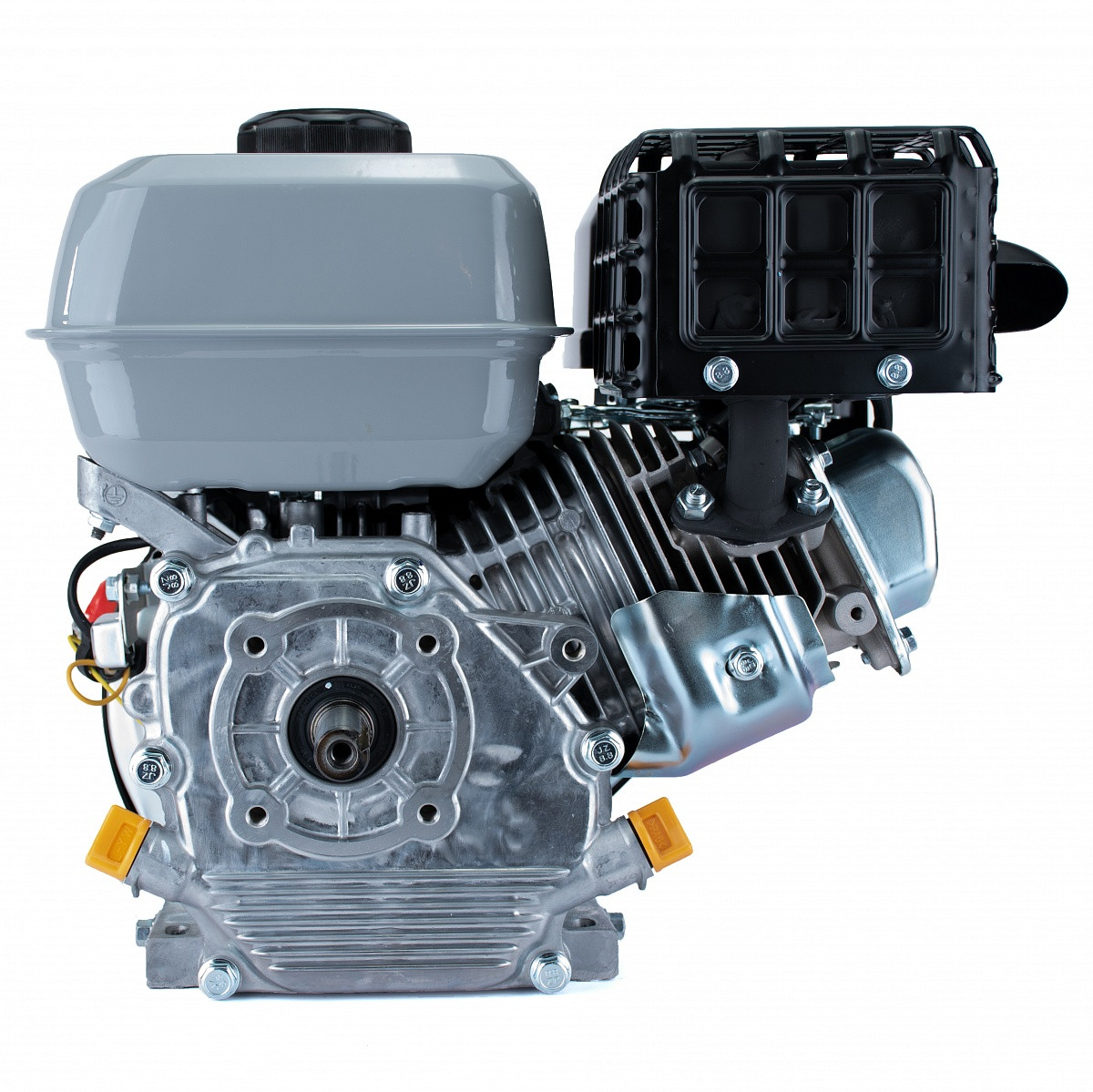

Engine for tiller Zongshen GB200 6.5 HP (ax: 20 x 56mm)
Description
Motor Zongshen GB200
Manufacturer - Zongshen; Model - GB200
Technical specifications:
Engine type - petrol, single-cylinder, four-stroke, OHV, air-cooled
Power - 6.5 hp / 3600 rpm
Torque - 10.7 / 2500 N.m / rpm
Cylindrical capacity - 196 cm3
Lubrication system capacity - 0.6 L
Fuel tank capacity - 2.6 L
Shaft diameter - 20 mm
Seal shaft length - 56 mm
Dimensions - 415 x 365 x 380 mm
Weight without oil or gasoline - 15 kg
Wedge channel - rectangular along the entire length of the shaft, width 4.78 mm
Oil level sensor - yes
Contact switch - yes
Air filter: paper + sponge
Manual start (on the string)
* The engine is delivered without oil!
The Zongshen GB200 engine is a more compact version of the 168FB engine, which is widely used in
constructions such as compactors, motor pumps, chainsaws.
Its design is based on the Honda GX160 engines, but the muffler and air filter are slightly smaller, which makes it more effective.
easy to adapt to the car when space is limited.
Robust and reliable engine, suitable for professional use, which is also characterized by low fuel consumption. Especially recommended for construction companies.
Zongshen engines are of high quality and reliability obtained thanks to an extensive research and development department.
