Engine for tiller / motor pump / cultivator 7 HP (with key start!)

Description

Motor for cultivators, motor pumps, agricultural equipment, water pumps, industrial equipment, generators, etc.

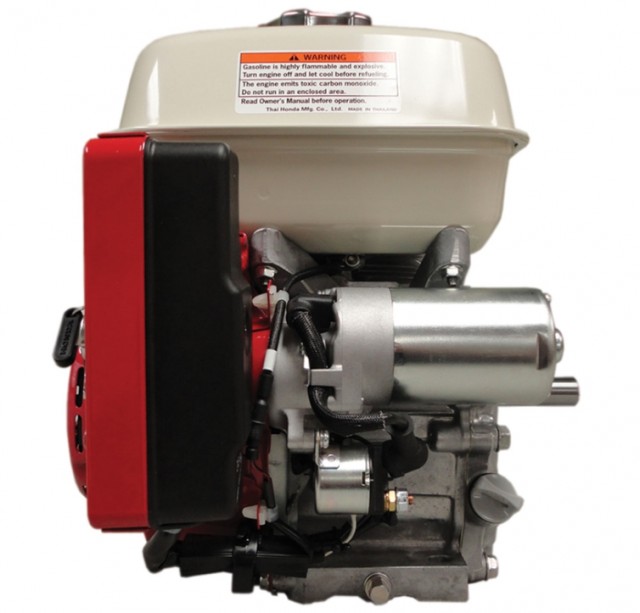

This engine is equipped with a flywheel, electric motor and control panel which means that it starts from the key.

Click here for the maintenance manual of this type of engine:

We specify that the engine control panel is delivered disassembled (for safety reasons during transport)

* We would also like to point out that this engine does NOT come with a battery. (a 12V min 5 Ah battery can be used)

Replace the engine on Chinese or Honda GX200 generators (7 hp).

Replace the engine on Chinese or Honda GX200 generators (7 hp).

You get free shipping on this product!

Characteristics:

- Engine: OHV, 4 stroke, 1 cylinder, air cooling, horizontal shaft

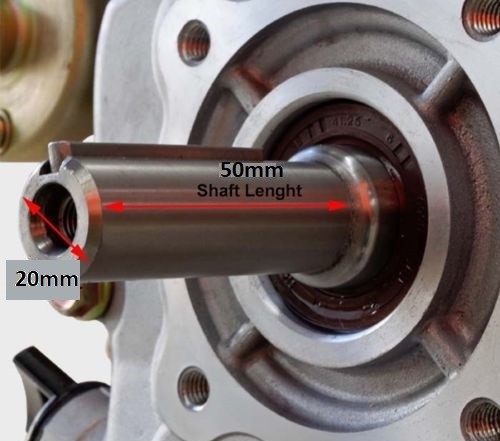

- Shaft on the wedge, shaft length (only the protruding part): 50mm, thickness 20mm
- Filter type: Dry filter
- Fuel: Gasoline
- Cylindrical capacity: 208 cm3
- Power: 7 hp 5200W (3600 rpm)
- Starting system: on the rope

- Delivered without oil (for logistical reasons)

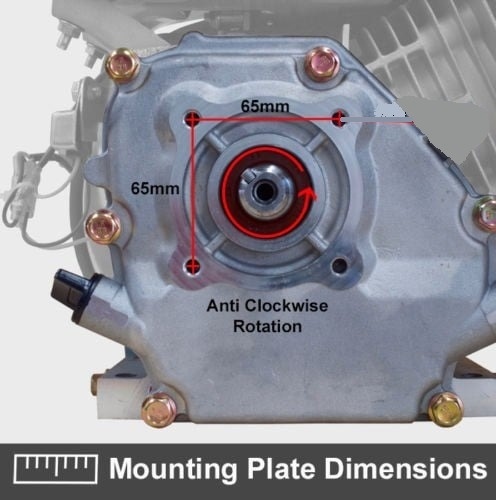

-The direction of rotation of the counterclockwise shaft
- Oil bath capacity: 0.6 L, 15w40 oil
- Tank capacity: 3.6 L

- Piston diameter: 70mm;

- Piston stroke: 45mm

- Compression: 8.5: 1

- Consumption: 1l / h - max. 1.4l / h
- Weight: 15 kg

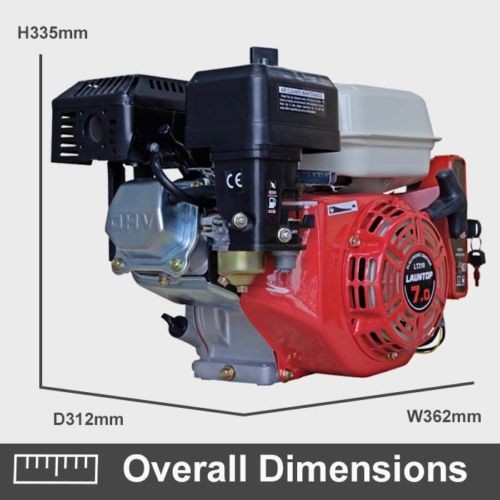

- Dimensions: 312x 362 x 346

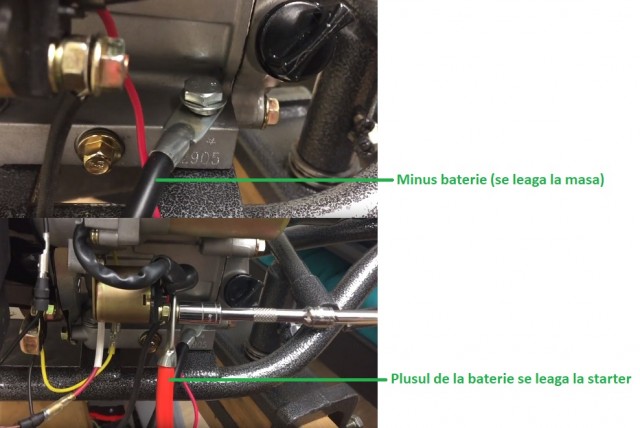

Below you can see the connections of the wires from the battery:
