Engine for tiller / motor pump / cultivator 13 HP (with key start!)

Description

Motor for cultivators, motor pumps, agricultural equipment, water pumps, industrial equipment, generators, etc.

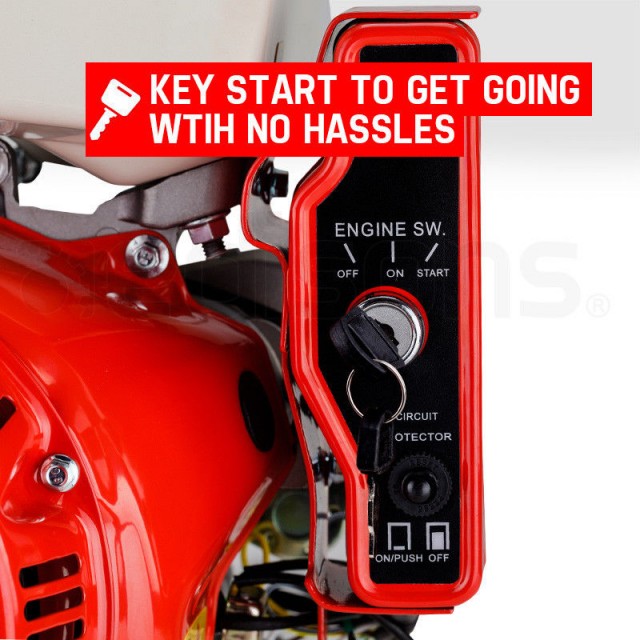

This engine is equipped with a flywheel, electric motor and control panel which means that it starts from the key.

Click here for the maintenance manual of this type of engine:

Replace the engine on the Chinese or Honda GX 390 (13 hp) generators.

You get free shipping on this product

Characteristics:

- Engine: OHV, 4 stroke, 1 cylinder, air cooling, horizontal shaft

Model: 188 F
Engine: OHV, 4 stroke, 1 cylinder, air cooling, horizontal shaft
Filter type: Dry filter
Fuel: Gasoline
Cylindrical capacity: 389 cm3
Cylinder: 88x64 mm
Compression ratio: 8.0: 1
Power: 13 hp / 3600 rpm
Starting system: on the rope
Oil bath capacity: 1.1 L
Tank capacity: 6.5 L

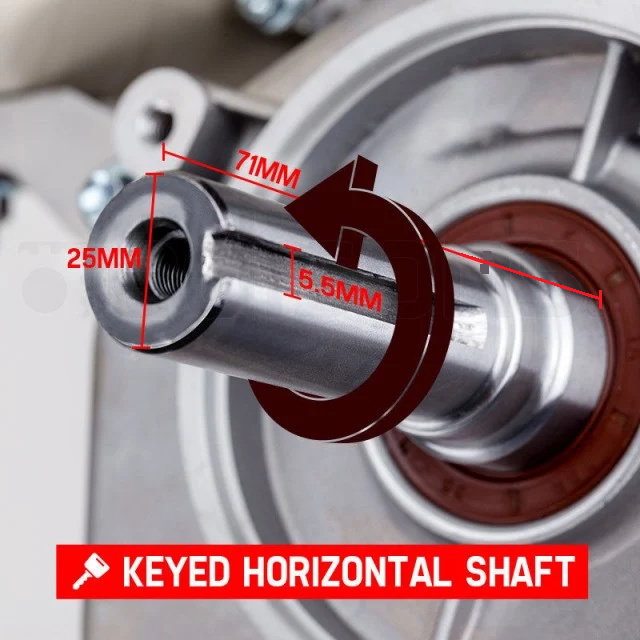

Clamping type: wedge shaft (cylindrical) - Shaft diameter 25mm, Shaft length 65mm

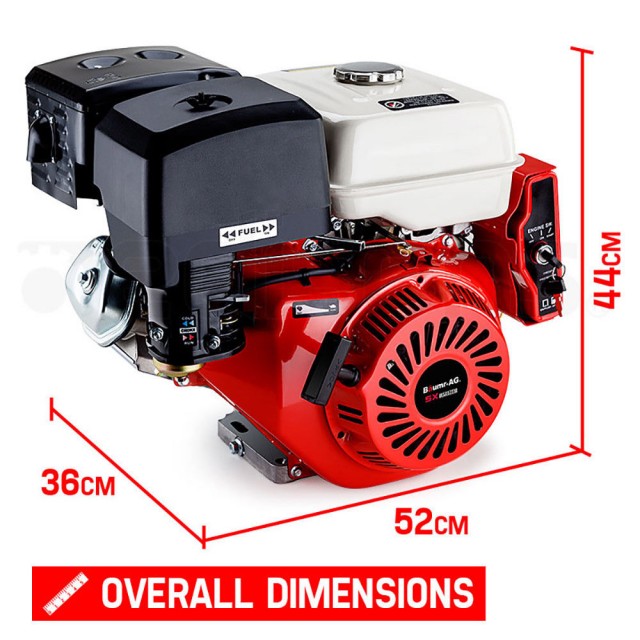

Dimensions: 490x430x530 mm
Weight: 29 kg.312 x 362 x 335 mm

Below you can see the connections of the wires from the battery:

* Does not come with battery!
