Engine for tiller 7 HP (with wet air filter)

Description

Motor for cultivators, motor pumps, agricultural equipment, water pumps, industrial equipment, generators, etc. (with humid air filter)

Replace the engine on Chinese 170F or Honda GX200 (7 hp) machines.

This engine comes with a humid air filter (in an oil bath) which gives the engine extra protection as dust particles are stopped from entering the engine. This makes this engine ideal for use in agricultural applications (chainsaws, cultivators)

Click here for the maintenance manual of this type of engine:

You get free shipping on this product

Characteristics:

- Engine: OHV, 4 stroke, 1 cylinder, air cooling, horizontal shaft

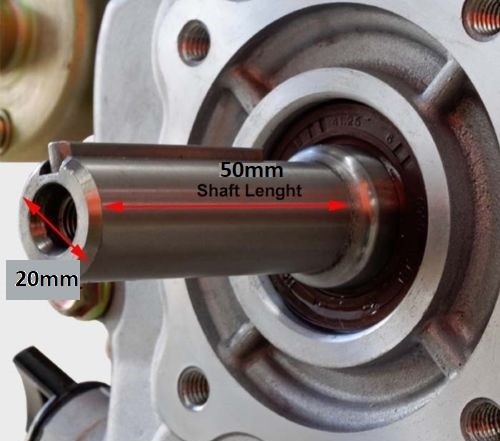

- Shaft on the wedge, shaft length (protruding only): 50mm, thickness 20mm (3/4)
- Air filter type: Oil filter with oil
- Fuel: Gasoline
- Cylindrical capacity: 208 cm3
- Power: 7 hp 5200W (3600 rpm)
- Starting system: on the rope

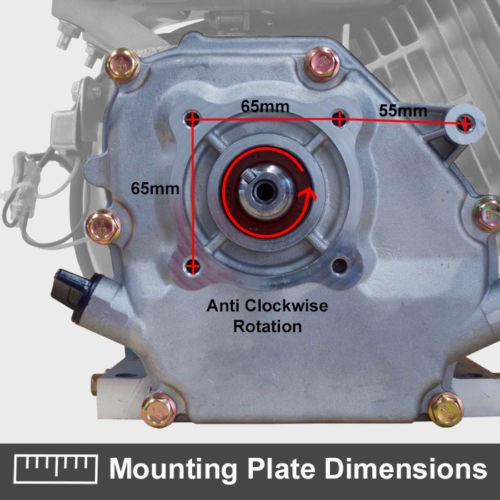

-The direction of rotation of the counterclockwise shaft
- Oil bath capacity: 0.6 L, 15w40 oil
- Tank capacity: 3.6 L

- Piston diameter: 70mm;

- Piston stroke: 45mm

- Compression: 8.5: 1

- Consumption: 1l / h - max. 1.4l / h
- Weight: 15 kg
- Dimensions: 312x 362 x 346

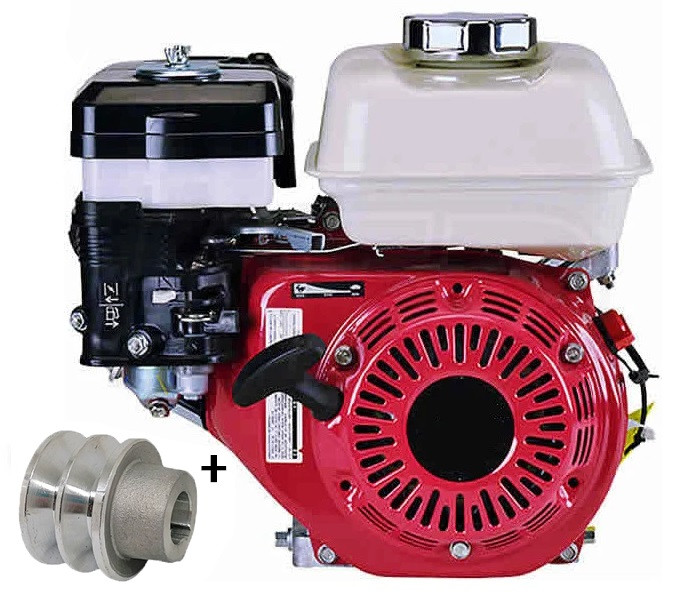

It is not delivered with pulley!

312 x 362 x 335 mm
