Engine for tiller 13 HP (with wet air filter)
Our benefits
Description

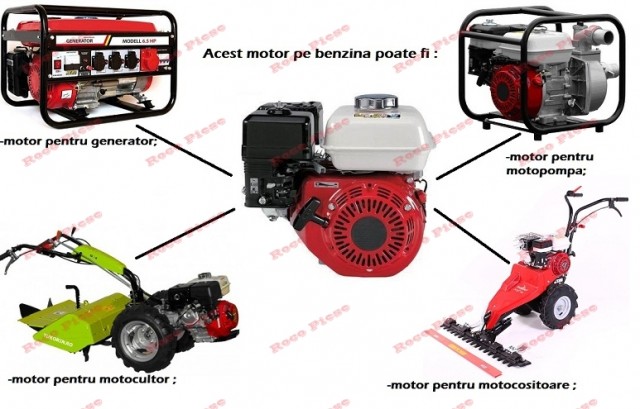

Gasoline engine for cultivators, motor pumps, agricultural equipment, water pumps, industrial equipment, generators, etc. (with humid air filter)
This engine comes with a humid air filter (in an oil bath) which gives the engine extra protection as dust particles are stopped from entering the engine. This makes this engine ideal for use in agricultural applications (chainsaws, cultivators)
Replace the engine on Chinese or Honda GX 390 generators (13 horsepower).
Click here for the maintenance manual of this type of engine:
* With this engine the transport is free.
You get free shipping on this product!
Characteristics:
- Engine: OHV, 4 stroke, 1 cylinder, air cooling, horizontal shaft
Model: WM 188 F
Engine: OHV, 4 stroke, 1 cylinder, air cooling, horizontal shaft
Filter type: Filter
Fuel: Gasoline
Cylindrical capacity: 389 cm3
Cylinder: 88x64 mm
Compression ratio: 8.0: 1
Power: 13 hp / 3600 rpm
Starting system: on the rope
Oil bath capacity: 1.1 L
Tank capacity: 6.5 L
Clamping type: wedge shaft (cylindrical) - Shaft diameter 25mm, Shaft length 65mm
Dimensions: 490x430x530 mm
Weight: 29 kg.312 x 362 x 335 mm
Caution: Cannot be used on asphalt / concrete cutters or rammers.
