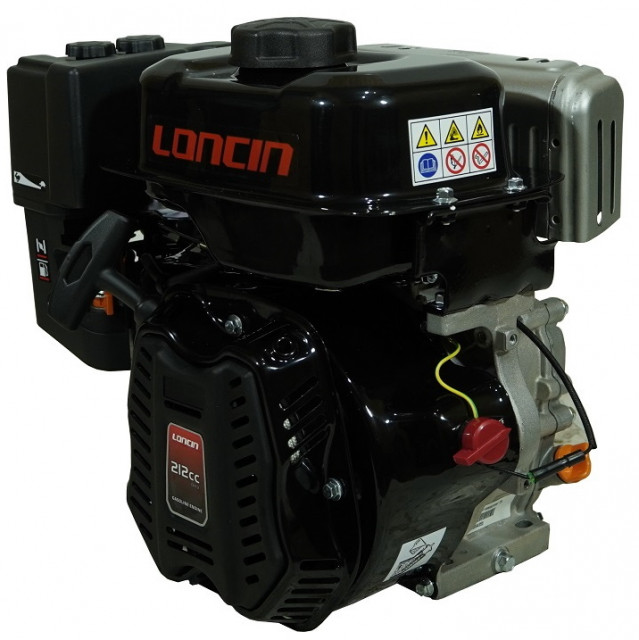

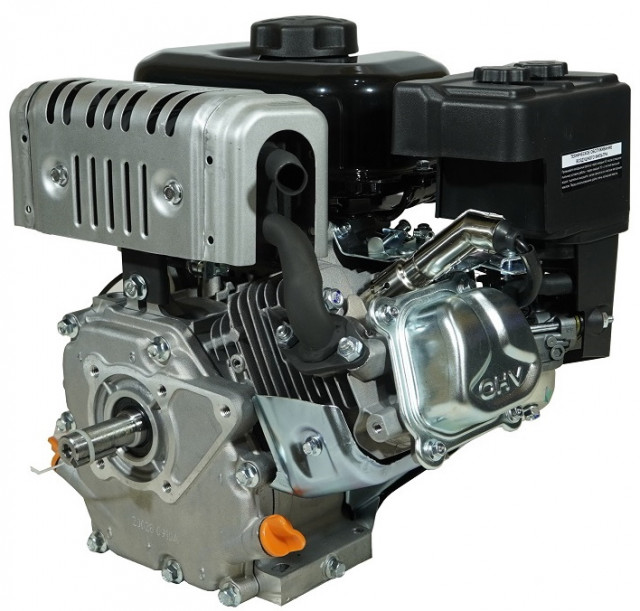

Engine for generator / motor pump/ cultivator LONCIN LC170FA (axle 20mm)

Description

Engine for motor cultivators, motor pumps, agricultural equipment, water pumps, industrial machinery, generators, etc.

The presented product benefits from a guarantee according to Law no. 449/2003 ONLY IF IT IS MOUNTED IN A SPECIALIZED SERVICE!!

If the product is self-assembled, it NO LONGER BENEFITS FROM THE WARRANTY!!

Failure to comply with the service schedule will void the warranty!
Any operation performed on the engine will be done in a specialized workshop!
Failure to complete the table / incorrect completion leads to cancellation of the warranty.
Service manual:

The Loncin LC170FA engine is a reliable aid for agricultural machinery, which you want to use in the household, but also on farms and in field work.

With a power of 7 HP this engine is extremely efficient in giving life to any machine, to ensure a long and efficient use. Moreover, with a net weight of 16 kg, 19 kg with a full tank and dimensions of 381x325x336mm, it does not contribute to the difficulty of using the agricultural machine on which it is mounted.

Added to this benefit is the reduced consumption of consumables, given the fact that it includes a 70x55mm cylinder with a capacity of 212cc, a 3L fuel tank and an oil bath with a capacity of 0.6L.

Loncin brand.

Type LC170FA.

With this product you benefit from free shipping!

Characteristics:

- Engine: OHV, 4 strokes, 1 cylinder, air cooling, horizontal axis

- Shaft on the wedge, length of the shaft (only the part that comes out): 50mm
- Filter type: Oil filter
- Fuel: Gasoline
- Cylinder capacity: 212 cmc
- Power: 7 HP
- Starting system: on the string

- Direction of rotation of the shaft Counter-clockwise
- Oil bath capacity: 0.6 L
- Tank capacity: 3 L

- Compression: 8.5:1

- Consumption: 1l/h - max. 1.4l/h

- Arm shaft thickness: 20mm

output shaft Ø20mm, lever shock control, dual air filter, standard muffler, without oil warning

312 x 362 x 335 mm
