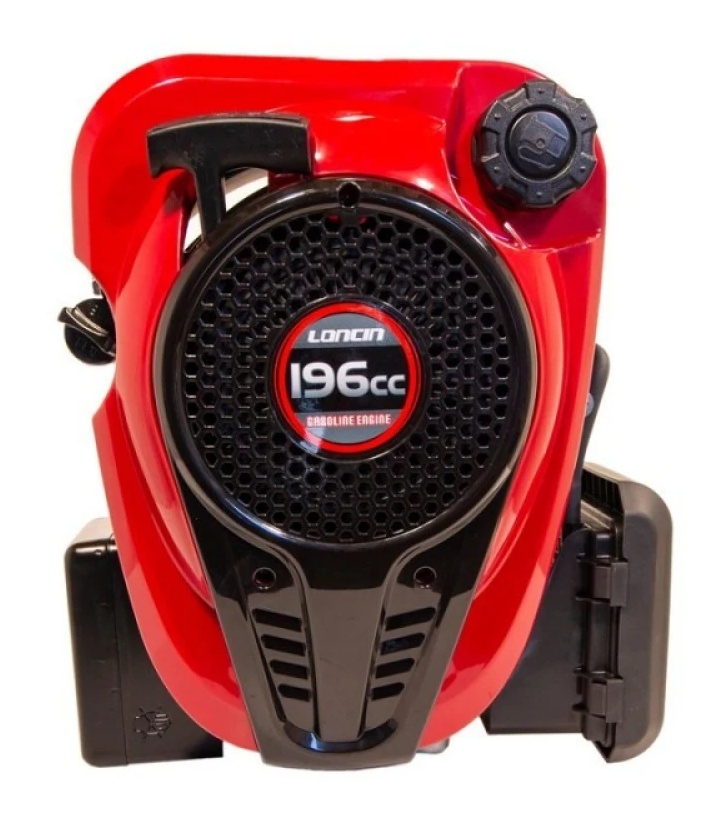

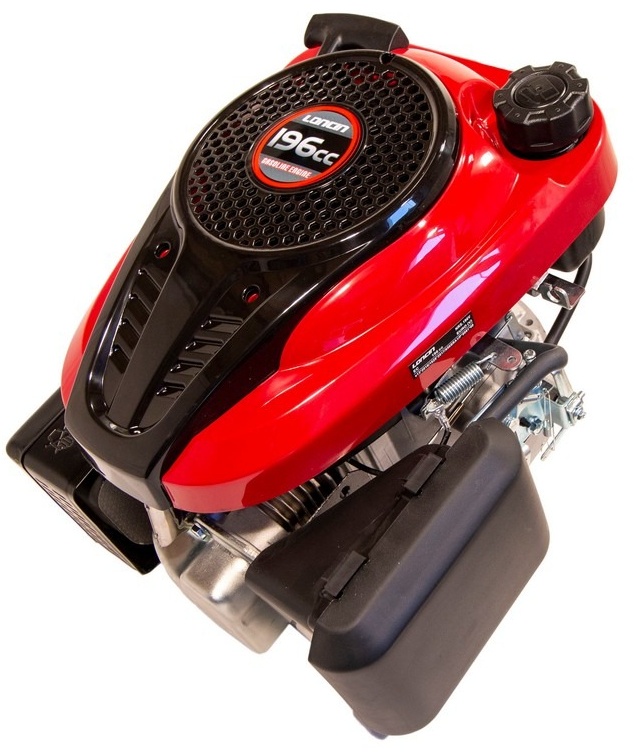

Engine for generator / motor pump / cultivator Loncin 6.5 HP vertical axis (22.2 X 67mm axis)

Description

Motor for cultivators, motor pumps, agricultural equipment, water pumps, industrial equipment, generators etc. Loncin 6.5 HP vertical axis (LC1P70FA).
Technical specifications:

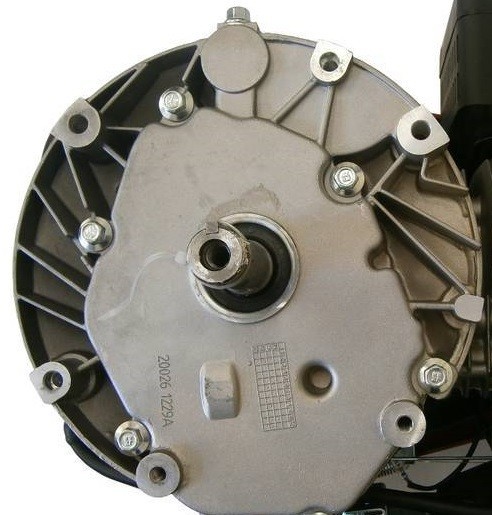

Shaft: Cylinder, Right

Shaft diameter: Ø 22.2
Model: LC1P90F-1
Oil Bath Capacity (l): 1.2
Spark Plug Gap: 0.6-0.8 mm
Spark Plug: RC12YC
Idle speed: 1800 ± 150 rpm
Oil Change (First Revision): 5 hours
Power (CP): 6.5
Power (KW): 4
Speed (RPM): 3600
Engine type: Single cylinder, 4T, air cooling, OHV
Maximum torque (Nxm / rpm): 26/2600
Fuel Consumption (g / Kwh): 395
Fuel Tank (L): -
Transmission:
Caliber x Stroke (mm): 80 x 76
Cylindrical capacity (cm3): 196
Compression Rate: 8.7: 1
Valve: Inlet: 0.1 ~ 0.15mm outlet: 0.15 ~ 0.20mm
Filter: Semi Dry, Double
Net Weight (Kg): 42
Dimensions (mm): 466x480x356
Noise (db (A)): 85

Manufacturer: Loncin
