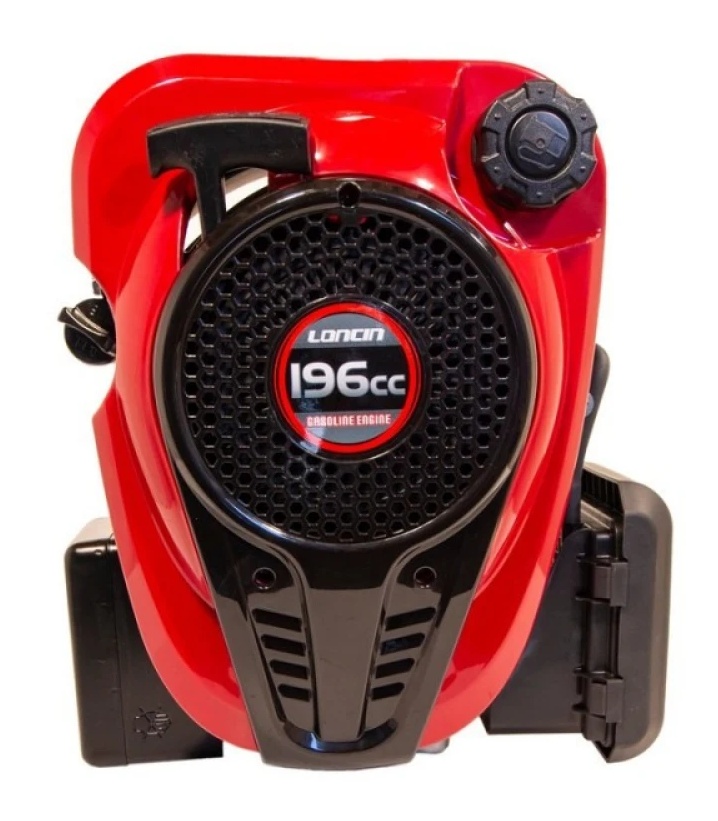

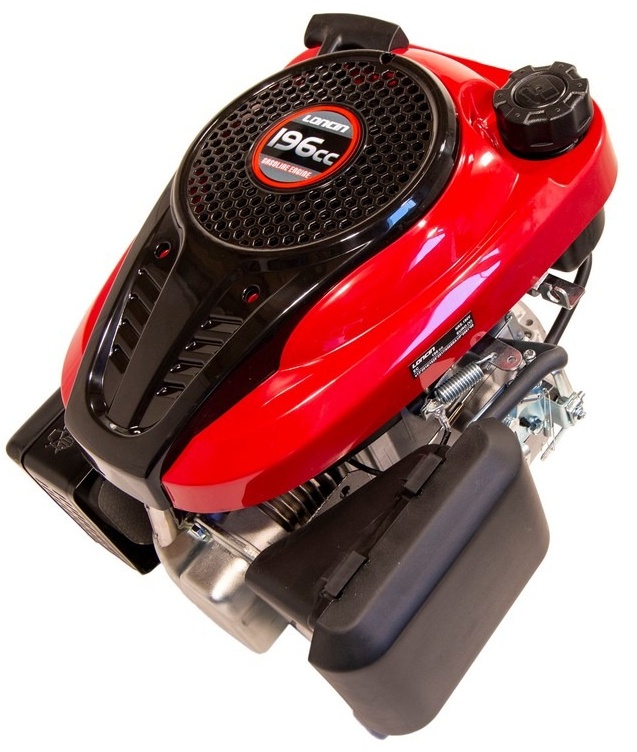

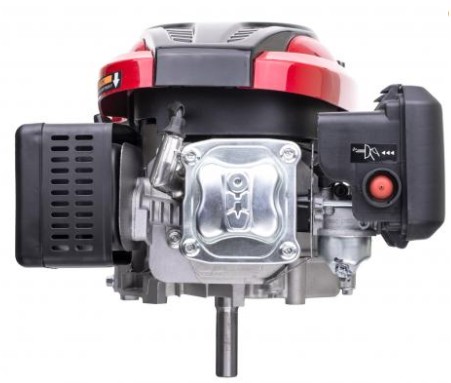

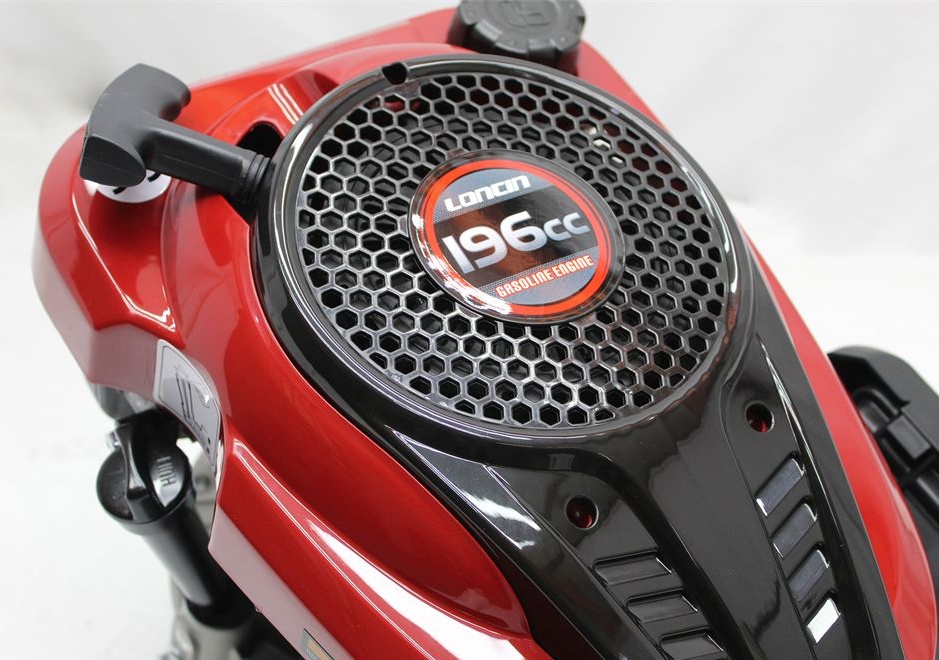

Engine for generator / motor pump / cultivator Loncin 6.5 CP ax vertical (ax 25 X 80mm)

Description

Engine for motor cultivators, motor pumps, agricultural equipment, water pumps, industrial machinery, generators etc. Loncin 6.5 HP vertical shaft (LC1P70FA-E).
The product presented benefits from a warranty according to Law no. 449/2003 ONLY IF IT IS INSTALLED IN A SPECIALIZED SERVICE!!

If the product is installed by yourself, it NO LONGER BENEFITS FROM A WARRANTY!!

Failure to comply with the service schedule will void the warranty!
Any operation performed on the engine will be done in a specialized workshop!
Failure to complete the table / incorrect completion will void the warranty.
Service Chart:

Technical Specifications:

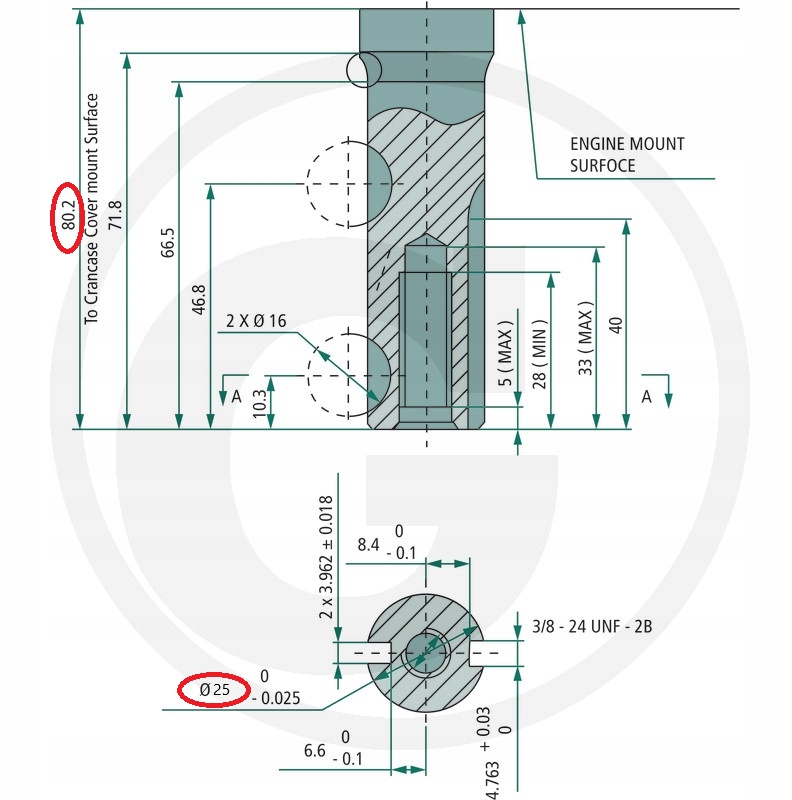

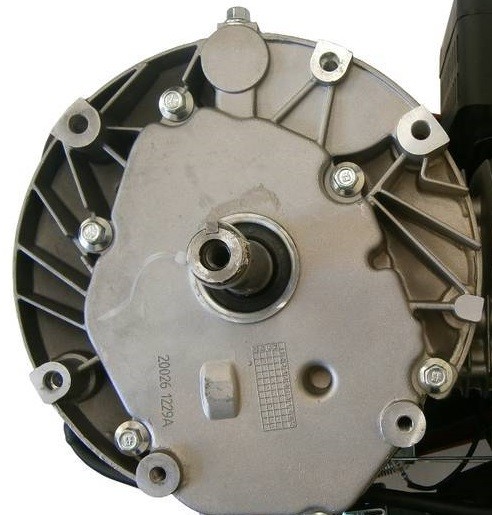

Axle: Cylinder, Straight

Axle Diameter: Ø 25mm
Model: LC1P70FA-E
Oil Pan Capacity(l) : 1.2
Spark Plug Gap: 0.6-0.8 mm
Spark Plug: RC12YC
Idle Speed: 1800±150 rpm
Oil Change(First Service): 5 hours
Power(HP): 6.5
Power(KW): 4
Speed(RPM): 3600
Engine Type: Single Cylinder, 4T, Air Cooling, OHV
Maximum Torque(Nxm/rpm): 26/2600
Fuel Consumption(g/Kwh): 395
Fuel Tank(L): -
Transmission:
Bore x Stroke(mm): 80 x 76
Displacement(cc): 196
Compression Ratio: 8.7:1
Valve: Inlet: 0.1 ~0.15mm Outlet: 0.15~0.20mm
Filter: Semi-Dry, Double
Net Weight(Kg): 12
Dimensions(mm): 466x480x356
Noise(db(A)): 85

Manufacturer: Loncin
