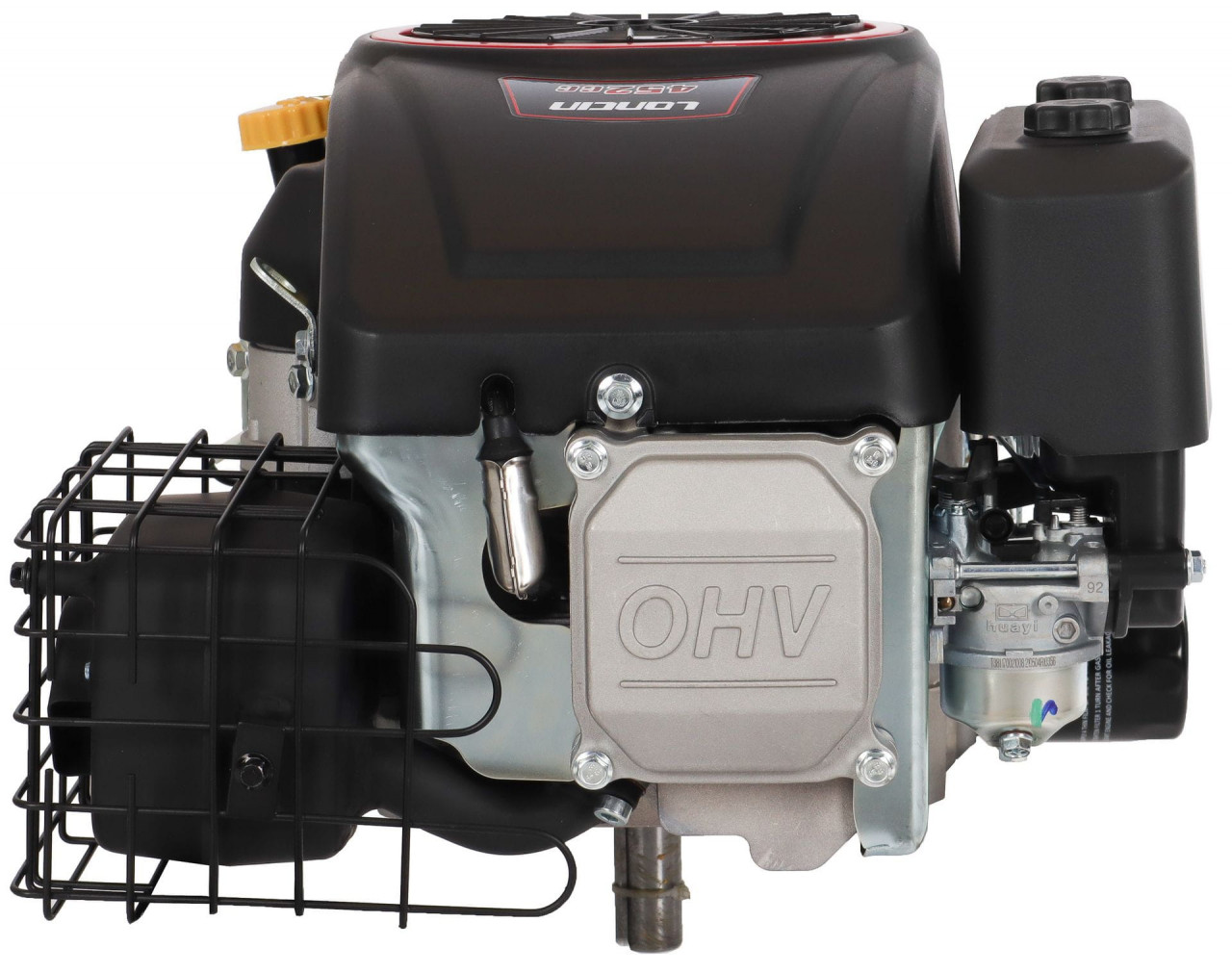

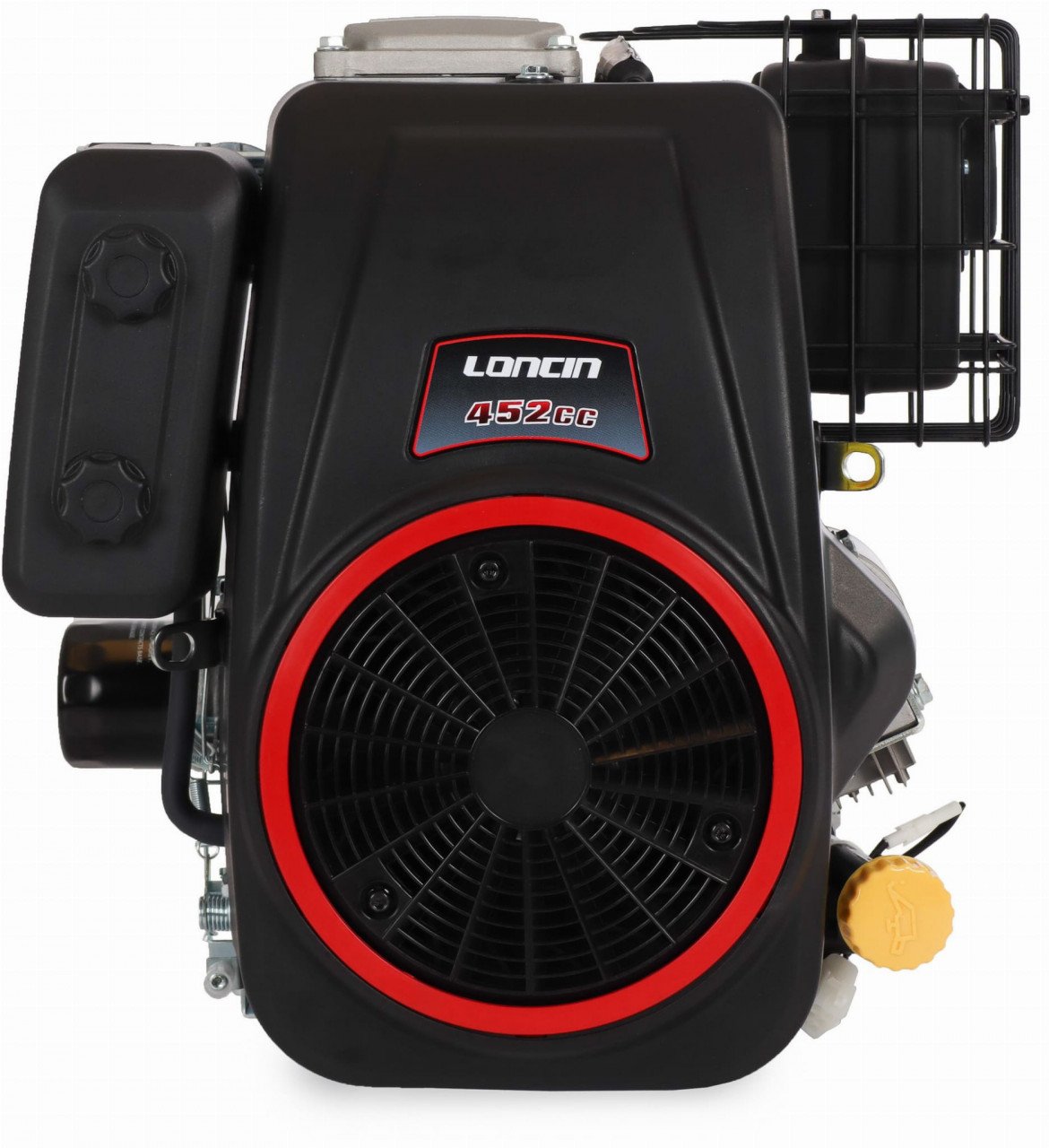

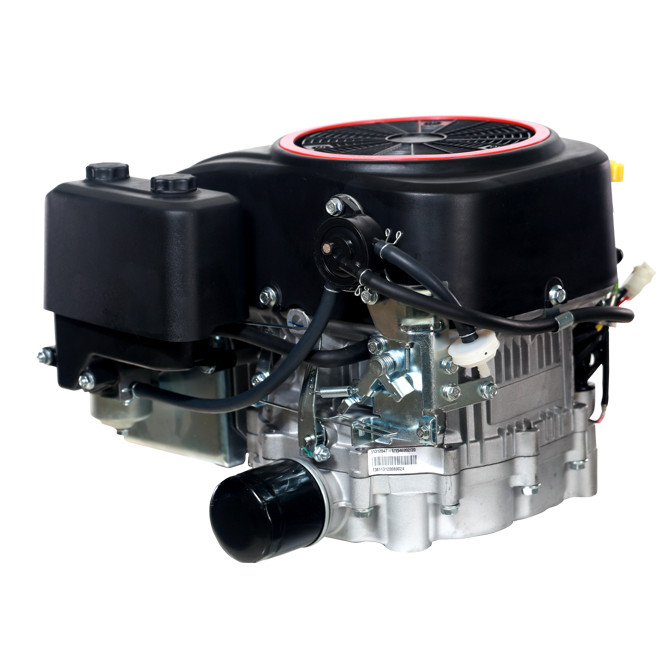

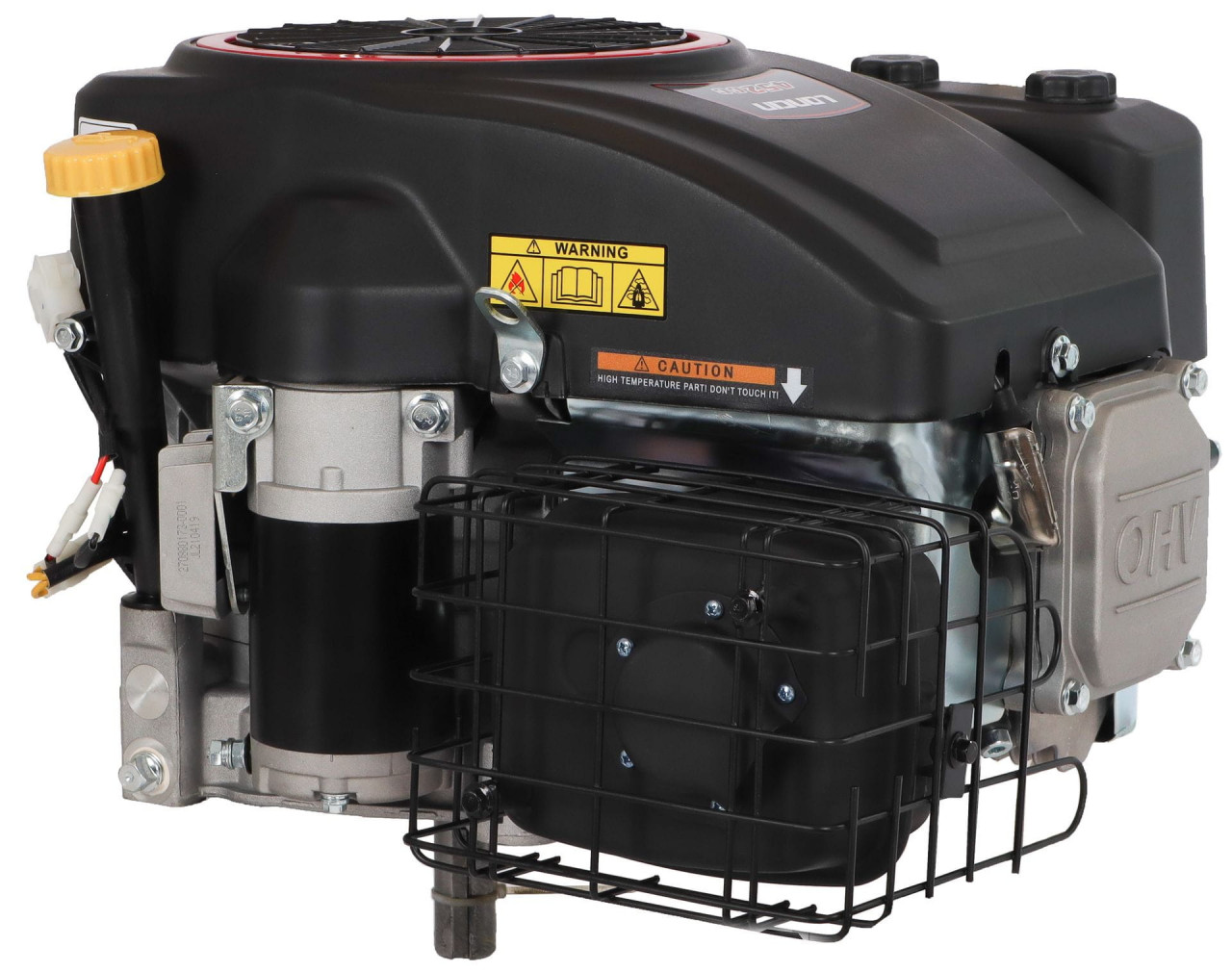

Engine for generator / motor pump / cultivator Loncin 16 HP axle vertical
Description
Motor for cultivators, motor pumps, agricultural equipment, water pumps, industrial equipment, generators etc. Loncin 16 HP vertical axis.
Technical specifications:

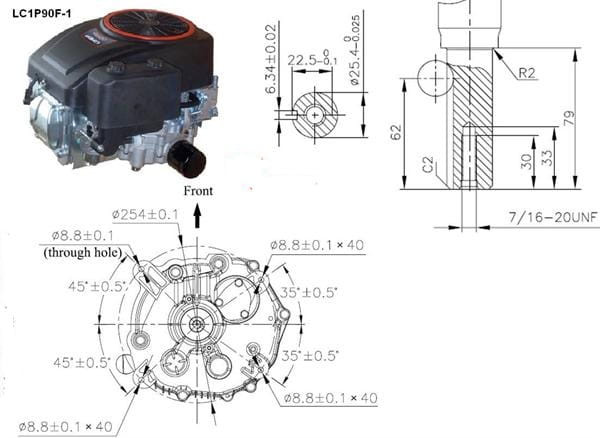

Shaft: Cylinder, right
Shaft diameter: Ø25
Model: LC1P90F-1
Oil Bath Capacity (l): 1.2
Spark Plug Gap: 0.6-0.8 mm
Spark Plug: RC12YC
Idle speed (rpm): 1800 ± 150
Oil Change (First Revision): 5 hours
Power (CP): 16
Power (KW): 12
Speed (RPM): 3600
Engine type: Single cylinder, 4T, air cooling, OHV
Maximum torque (Nxm / rpm): 26/2600
Fuel Consumption (g / Kwh): 395
Fuel Tank (L): -
Transmission:
Caliber x Stroke (mm): 96 x 68
Cylindrical capacity (cm3): 452
Compression Rate: 8.7: 1
Start: Electric
Valve: Inlet: 0.1 ~ 0.15mm outlet: 0.15 ~ 0.20mm
Filter: Semi Dry, Double
Net Weight (Kg): 31
Dimensions (mm): 432x388x300
Noise (db (A)): 80
Manufacturer: Loncin
