Engine for generator (conic axle) 6.5 HP (without reservoir)

Description

6.5 HP petrol engine for conical shaft generators (delivered without petrol tank)

You get free shipping on this product!

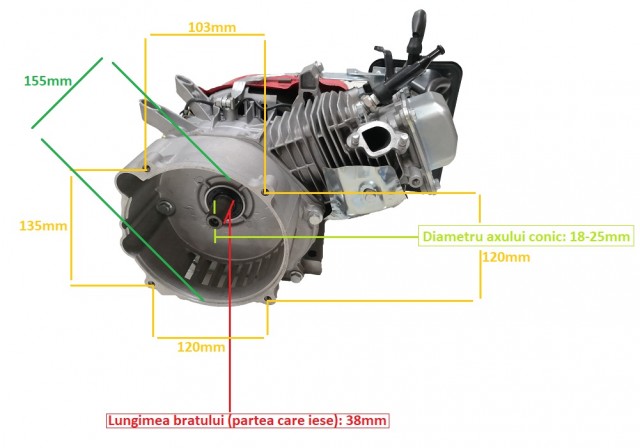

For dimensions please see the image below:

Characteristics:
4-stroke engine type, OHV, on petrol with horizontal shaft
Air cooling system
1-cylinder cast iron cylinders, inclined at 25º
Bore X Race 68 x 45 mm
Cylinder 168 cm3
8.5: 1 compression ratio
Maximum net power 3.6 kW (6.5 hp) / 3600 rpm
Maximum torque 10.3 Nm / 1.05 kgm / 2500 rpm
The direction of rotation of the counterclockwise shaft
Electronic ignition system
Manual start system
Carburetor type Horizontal with float
Bubble lubrication system
Oil bath capacity 0.6 l
Maximum hourly consumption 1.4 l / h at 3600 rpm
size
Length 312 mm
Width 362 mm
Height 346 mm

Tapered shaft size: diameter 18mm-25mm / length (protruding part) 38mm

Cylindrical capacity 163 cm3, Pmax.6.5 HP Mmax.net: 10.3 Nm (1.05 kgm) at 2500rpm, max. 1.4 l / h, manual starter start, forced air cooling, 4 stroke, OHV (cylinder head valves), transistorized ignition, horizontal tapered crankshaft

Ø20mm output shaft, lever shock control, dual air filter, standard muffler, no oil-free warning

312 x 362 x 335 m
