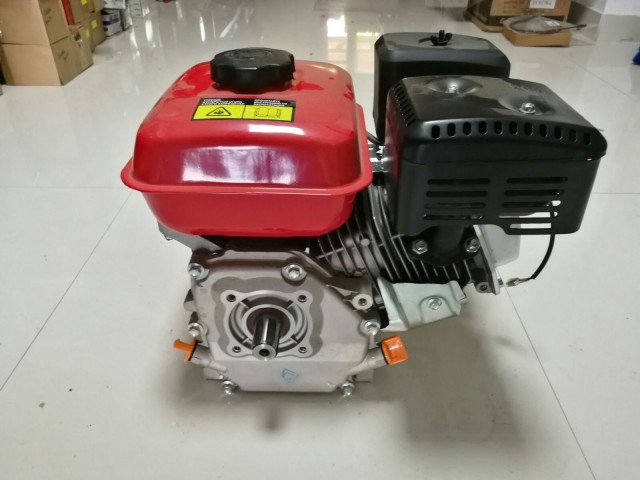

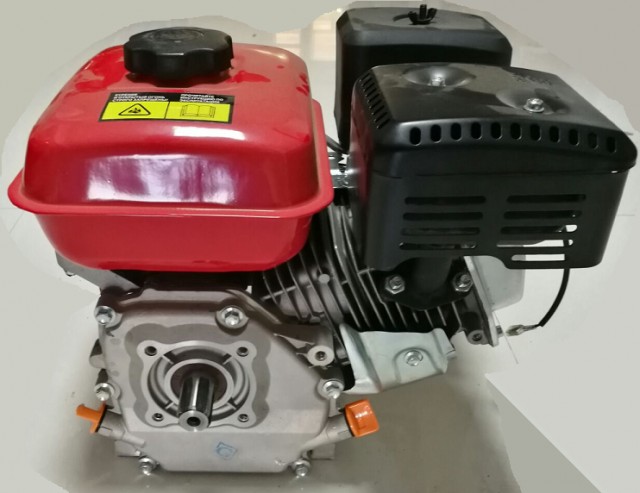

Engine for cultivator / tiller 6.5 HP (grooved shaft) 25MM

Description

Engine for cultivator, agricultural equipment.

You get free shipping on this product!

Click here for the maintenance manual of this type of engine:

Characteristics:

- Engine: OHV, 4 stroke, 1 cylinder, air cooling, horizontal shaft

- Grooved shaft (6 grooves), shaft length (only the protruding part): 35mm

- Filter type: Dry filter
- Fuel: Gasoline
- Cylindrical capacity: 168 cm3
- Power: 6.5 hp 4800W (3600 rpm)
- Starting system: on the rope

- Clockwise rotation of the clockwise direction
- Oil bath capacity: 0.8 L
- Tank capacity: 3.6 L

- Piston diameter: 68mm;

- Piston stroke: 45mm

- Compression: 8.5: 1

- Consumption: 1l / h - max. 1.4l / h
- Weight: 15 kg
- Dimensions: 312x 362 x 346

- Distance between clamps 65 mm

- Arm shaft thickness: 25mm

CHARACTERISTICS
4-stroke engine type, OHV, on petrol with horizontal shaft
Air cooling system
1-cylinder cast iron cylinders, inclined at 25º
Bore X Race 68 x 45 mm
Cylinder 168 cm3
8.5: 1 compression ratio
Maximum net power 3.6 kW (6.5 hp) / 3600 rpm
Maximum torque 10.3 Nm / 1.05 kgm / 2500 rpm
The direction of rotation of the counterclockwise shaft
Electronic ignition system, without breaker
Manual start system
Carburetor type Horizontal with float
Bubble lubrication system
Oil bath capacity 0.6 l
Fuel tank capacity 3.1 l
Maximum hourly consumption 1.4 l / h at 3600 rpm
size
Length 312 mm
Width 362 mm
Height 346 mm
Empty mass 15 kg

Cylindrical capacity 163 cm3, Pmax.6.5 HP Mmax.net: 10.3 Nm (1.05 kgm) at 2500rpm, max. 1.4 l / h, starting with manual starter, forced air cooling, 4 stroke, OHV (cylinder head valves), tank capacity 3.1 l, transistorized ignition, weight 15 kg, horizontal crankshaft

Ø25mm output shaft, lever shock control, dual air filter, standard muffler, no oil-free warning

312 x 362 x 335 mm
