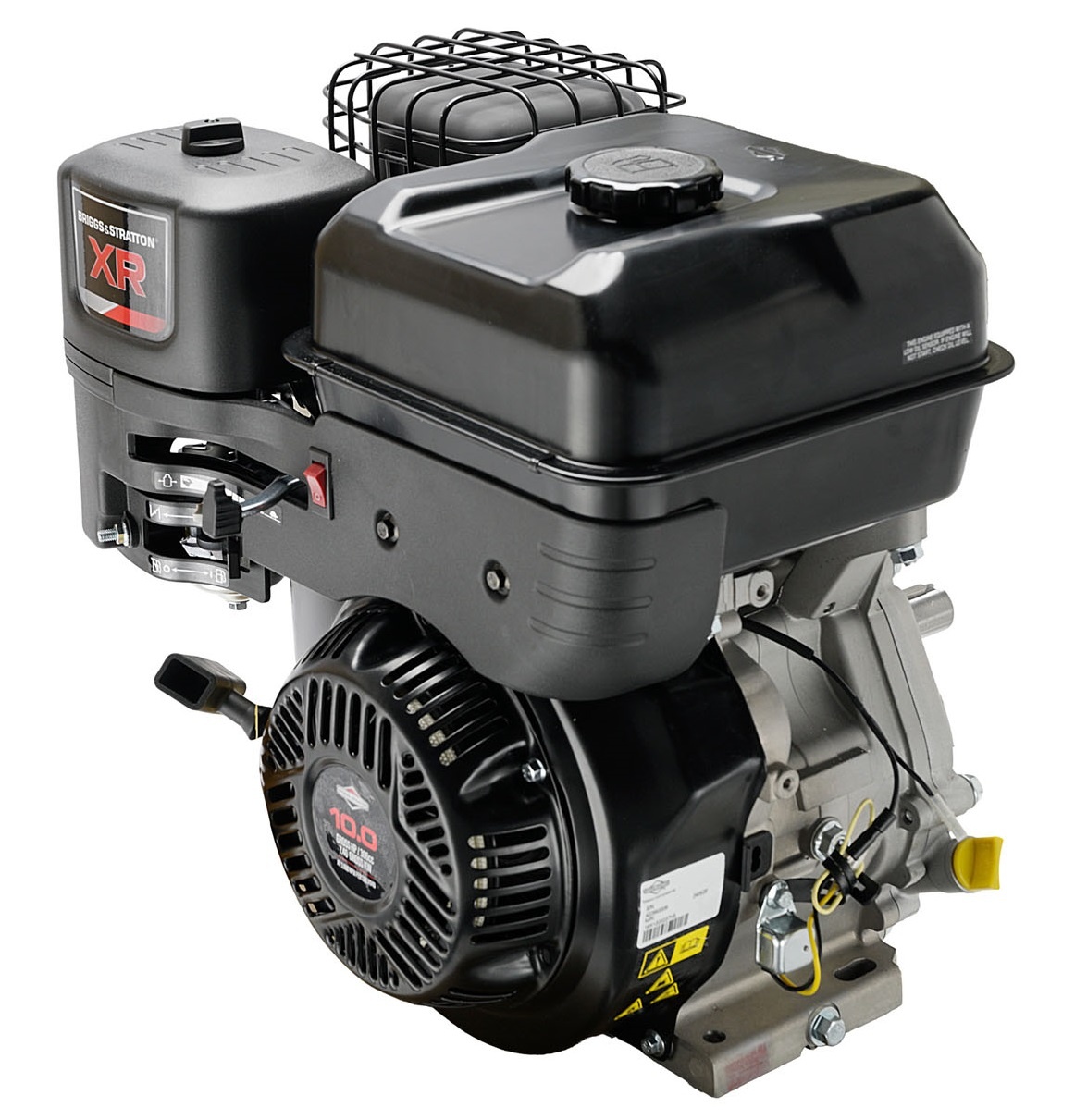

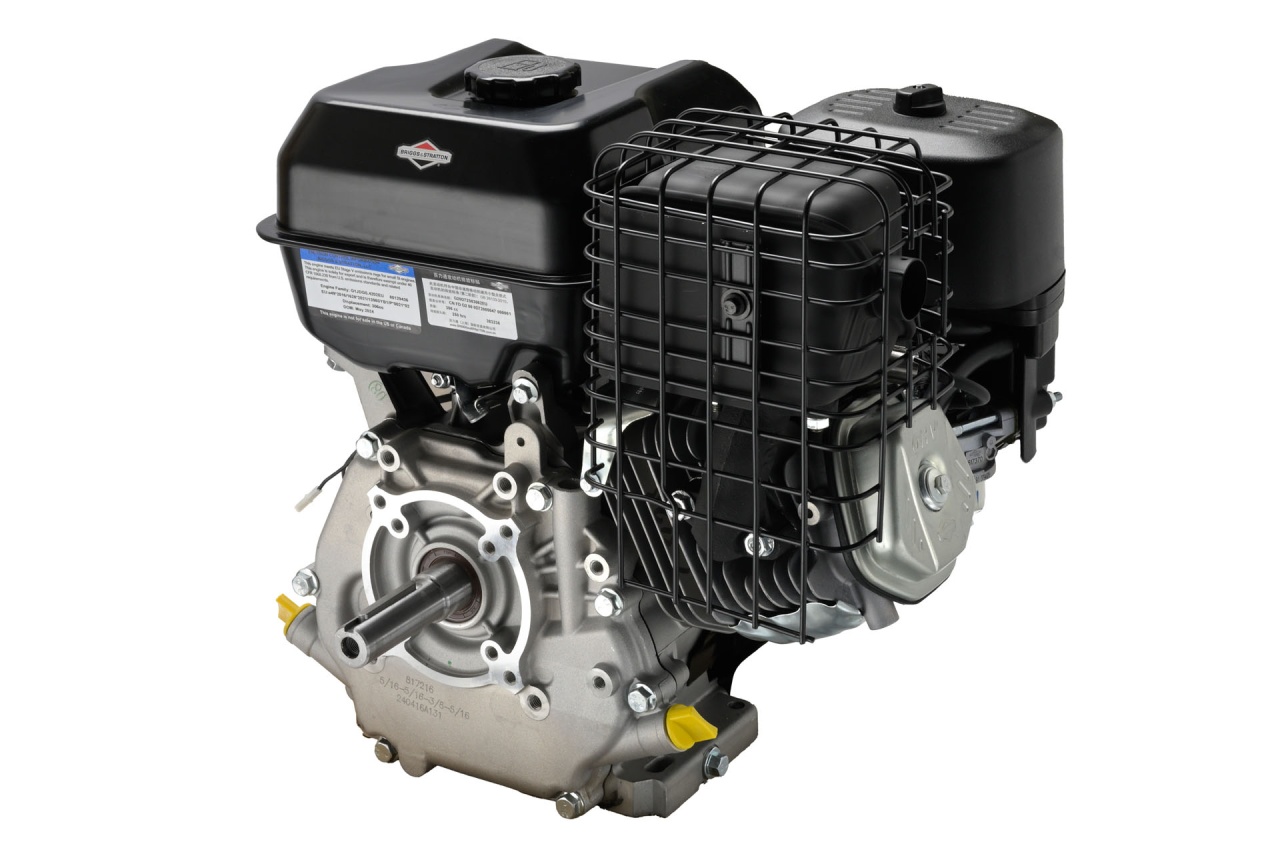

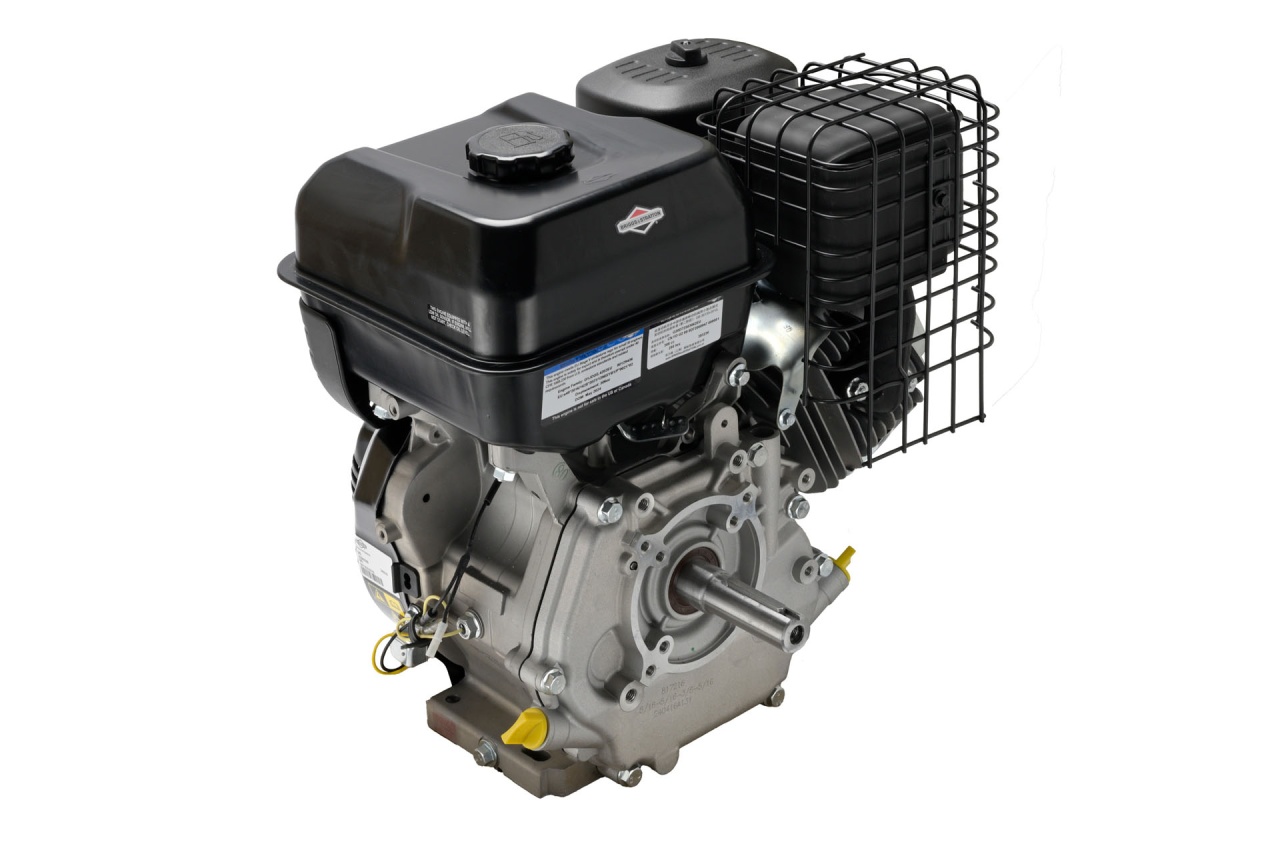

Engine Briggs & Stratton 10CP (starter) 88mm - Ø 25.4mm

Description

Briggs & Stratton XR1450 Series - shaft diam. 25,4 mm, lenght 88 mm

Technical characteristics:

• Engine technology: single cylinder, 4-stroke, air-cooled, OHV (valve in cylinder head)

• Starter: starter (on rope)
• Model number: 19N1

• Gross torque* (Nm) at 2600 rpm: 19.66

• Displacement (cc): 306

• Cylinder: Cast iron sleeve

• Bore (mm): 82.0

• Stroke (mm): 58.0

• Fuel tank capacity (litres): 5.3

• Oil capacity (litres): 1.1

• Own weight (kg): 26,0

• Dimensions Length (mm): 323

• Dimensions Width (mm): 438

• Dimensions Height (mm): 424

Original product Briggs & Straton
