Electric bicycle display LCD KT4

Description

Electric bicycle display LCD KT4.

User manual:

//s.cdnmpro.com/129517438/content/manual%20de%20utilizare/manua%20de%20utilizare%20display%20KT-LCD4.pdf

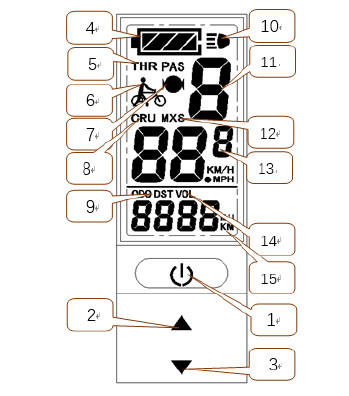

1. Data display ： shows travel speed, mileage and cumulative mileage, travel time, assistance level, engine power and ambient temperature, voltage and battery charge status, brake status.

2. This mileage reflects the battery charge level, records real-time power consumption

3. Setting parameters ： with a number of functions for setting user parameters, motor parameters, speed measurement parameters, speed limit parameters, power parameters, power assist control parameters, minimum controller voltage and current parameters maximum and other operating models;

4. Viewing data ： Users can view historical data and delete accordingly, view single or cumulative travel time, mileage, top speed and average trip speed;

5. Cadence function ： In assist mode, the display will show the number of revolutions per minute (RPM) of the pedal;

6. Cruise and constant speed: With the setting and display of cruising speed, you can automatically maintain the speed of the bike so that it travels at a constant speed;

7. Setting the password ： With the startup password set to three bits;

8. The 24V, 36V, 48V supply voltage can be automatically identified and compatible.
