Electric bicycle battery 36 V 16A (Luggage compartment type)
Description
36V electric bicycle battery

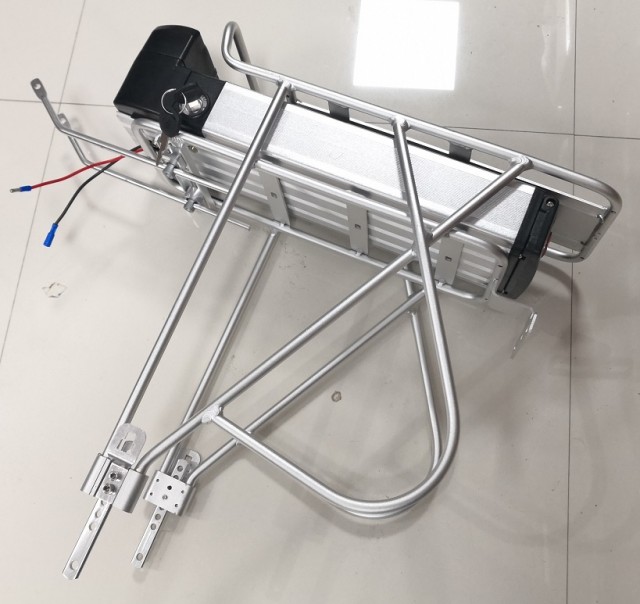

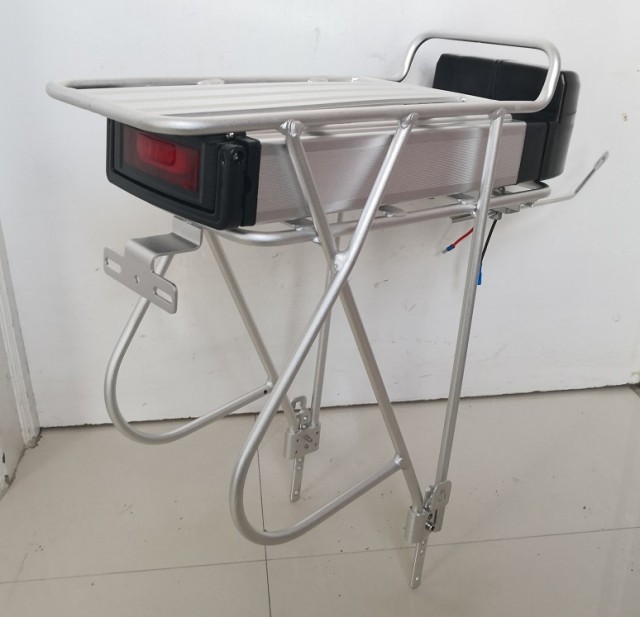

The battery comes with holder (trunk) and key (for example, the holder can remain on the bike to take the battery to charge it at home)
Technical specifications:
Luggage rack material: aluminum
Capacity: 16 A
Charging current: 2 A
Autonomy on a kit of 36v 500w with pedaling assistance 40-50 Km
Battery type: LI-ION
Cell resistance (mΩ): 40 mΩ
Cell specifications: 3.7V 2.6AH 18650 cells
Charging voltage (V): 42V
Charging time: 5h
Optimal loading temperature: 0 - 45 ° C
Optimal discharge temperature: -10 - 60 ° C
Weight: 7.8kgs
Life expectancy: 700 full charge cycles
This battery can be used on electric bicycles with motors of maximum 500w or 1000w power.
This battery can be used for the following electric bike conversion kits:
https://www.generalmotor.ro/cumpara/kit-conversie-bicicleta-electrica-36v1000w-roata-fata-26-inch-fara-7758368
https://www.generalmotor.ro/cumpara/kit-conversie-bicicleta-electrica-36v-350w-roata-fata-26-inch-fara-7758367
https://www.generalmotor.ro/cumpara/kit-conversie-bicicleta-electrica-36v-500w-roata-fata-26-inch-fara-7758366
The charger for this battery can be found in the following link:
https://www.generalmotor.ro/cumpara/incarcator-baterie-bicicleta-electrica-36-v-7757839

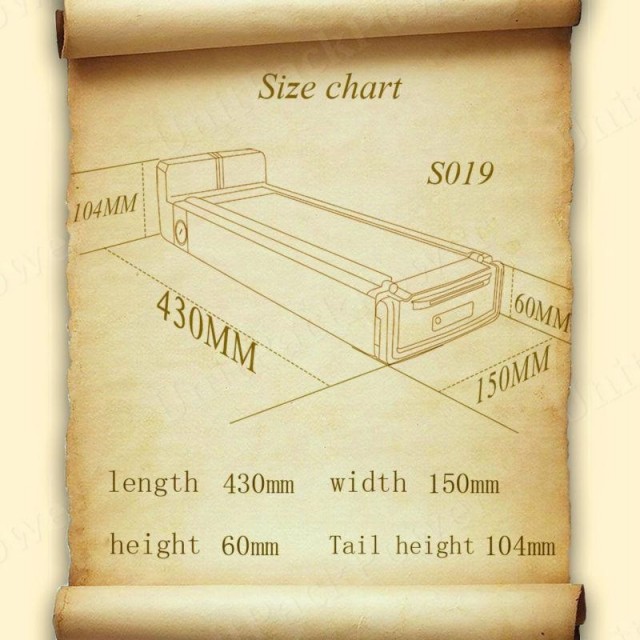

For dimensions please see the image below:
The charger for this electric bicycle battery can be found below:
https://www.generalmotor.ro/cumpara/incarcator-baterie-bicicleta-electrica-36v-model-2-7758370
