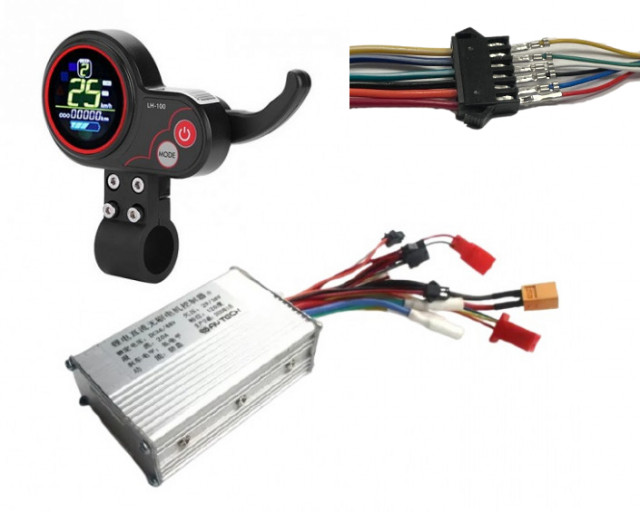

Display + Controller LH-100 24V (for 350W engine)

Description

Display + Controller LH-100 24V (for 350W motor)

Voltage: 24V DC

Current: 18A

Controller dimensions: 9cm x 5cm

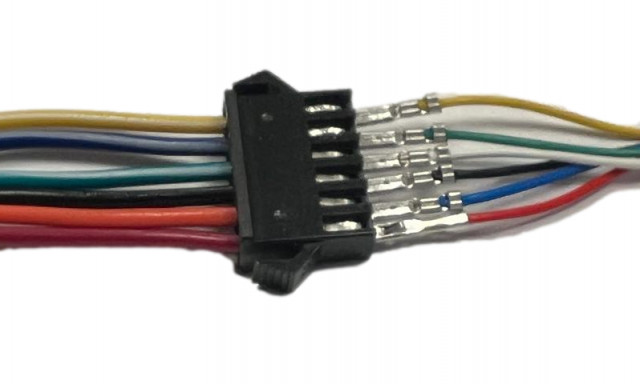

*Careful!! Keep the cable connections according to the product diagram:

-Yellow-Yellow

-Blue-Green

-Green-White

-Black-Black

-Orange-Blue

-Red-Red

This controller has the self learning function.

Step 1. Make sure the battery is closed

Step 2. Connect the 2 gray cables of the controller.

Step 3. Turn on the battery. at this moment you can see that the engine is spinning (without the accelerator being used)

If the motor rotates in the opposite direction, disconnect and connect the gray cables. (repeat this procedure until the motor rotates in the correct direction). When the motor rotates in the right direction, disconnect the gray cables.

*Supplied with cable!
