Fodder chopper with turbine 40024T without engine
Our benefits
Description

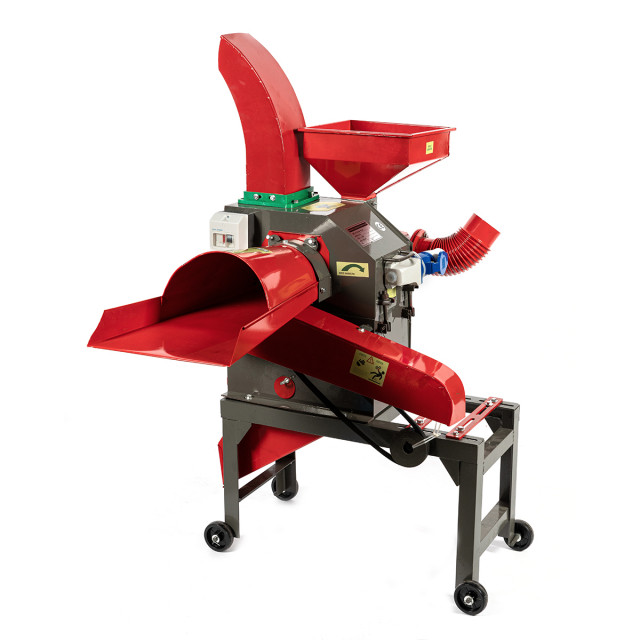

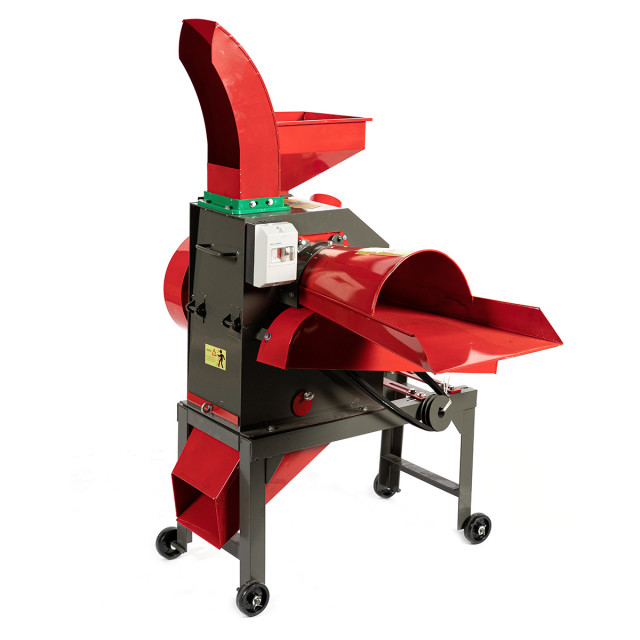

Fodder chopper with turbine 40024T without engine.
Technical specifications
The fodder chopper without motor and cyclone GF-2022 is a household product for shredding fodder residues from corn (chocolate), sunflower, straw, alfalfa, barley, rye, etc. or the grinding of wheat, oat, corn, etc. grains.
For an efficient and loss-free operation, it is recommended that the fodder residues be dried very well in the sun a few days after harvesting.

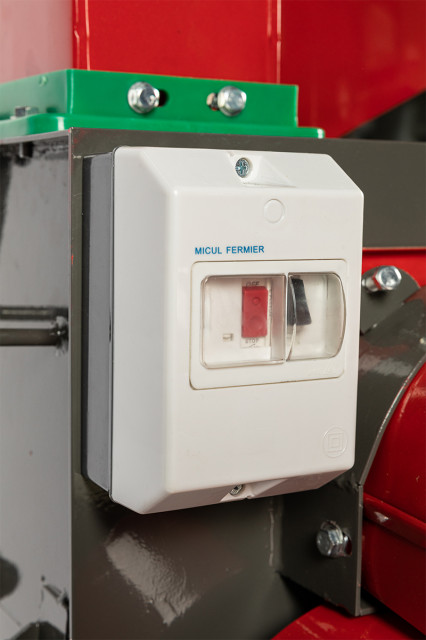

This chopper is delivered without a motor and is pre-equipped with a START/STOP controller and a transmission pulley/belt set.

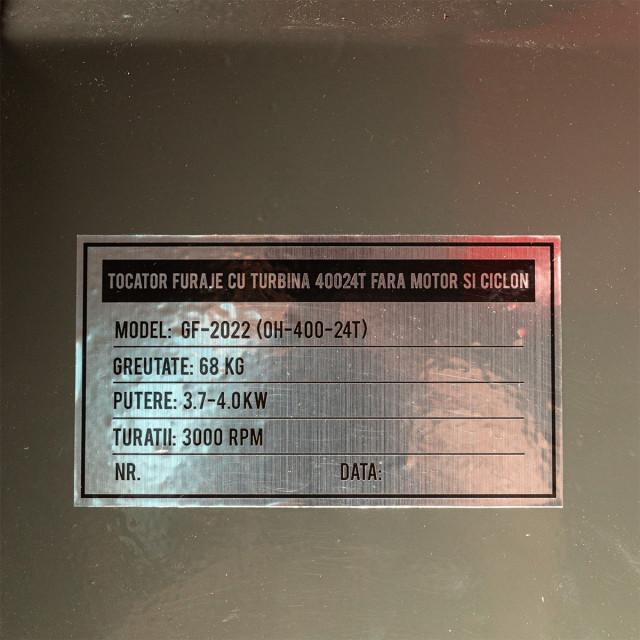

The forage chopper, GF-2022 can be equipped with a single-phase electric motor 3.7kw or 4.0kw, 3000rpm, 220V or with a three-phase electric motor 3.7kw or 4.0kw, 3000rpm, 380V.
The forage chopper with turbine 40024T without engine GF-2022 has the following characteristics:
•Ergonomic design for easy handling and added comfort.
•Ensures the significant reduction of the chopping time of the fodder residues or grains from the household. Very high grinding productivity of up to 500kg/hour for fodder and 1000kg/hour for cereals;
• The chopper has two capacious feeding troughs, one for grain and the other for fodder, which allow fast and efficient feeding directly from the bucket or bag;

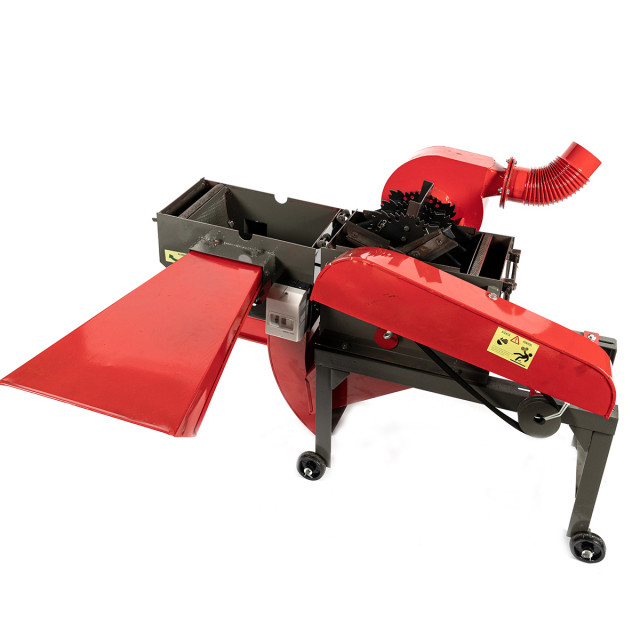

• The chopper allows quick access to the grinding mechanism through a quick-clamp system.

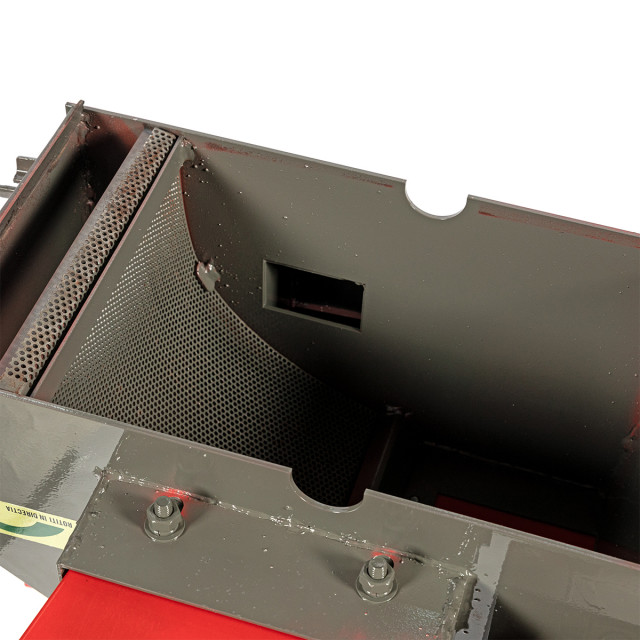

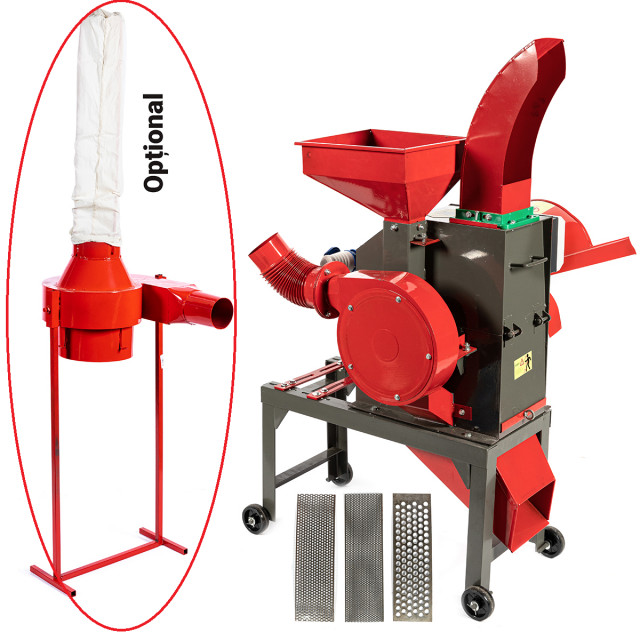

• The chopper is delivered with a complete set of 4 filter sieves with perforations of 3mm, 5mm, 8mm and 20mm.
• Constructed of the best quality manufacturing materials, light and resistant for an extended life span;
•Product with excellent price/quality ratio.
Package contents:
• Pre-assembled chopper GF-2020 - 1 pc;
•Complete set of hammer knives and lamellar knives;
• Set of 4 filter sieves with perforations of 3mm, 5mm, 8mm and 20mm;
• Cereal food mouth;
• Mouth feeding fodder;
• Hexagon key and mounting screw set;
•Transport/storage box.
Grinding capacity 500 kg/hour for fodder and 1000 kg/hour for cereals
Frequency 50 Hz
Weight 90 kg
No. lamella knives 3 lamella port knives
No. segment knives 6 segment knives
No. disc type knives with hammers 3 disc knives with 4 axes carry hammers
Number of hammers 24 grinding hammers
Compatible engine power (not included) 4 KW
Compatible motor voltage (not included) 220
Manual/centrifugal loading/unloading type
Product type Shredders without motor
Compatible engine speed (not included) 3000 rpm
Exhaust turbine to cyclone Yes
