Fodder chopper with turbine 350T without engine / cyclone
Our benefits
Description
Fodder chopper with turbine 350T without engine / cyclone.
Technical specifications:
The 350T turbine fodder chopper without motor/cyclone GF-2019 is a household product for shredding fodder residues from corn (chocolate), sunflower, straw, alfalfa, barley, rye, etc. or the grinding of wheat, oat, corn, etc. grains.
For an efficient and loss-free operation, it is recommended that the fodder residues be dried very well in the sun a few days after harvesting.

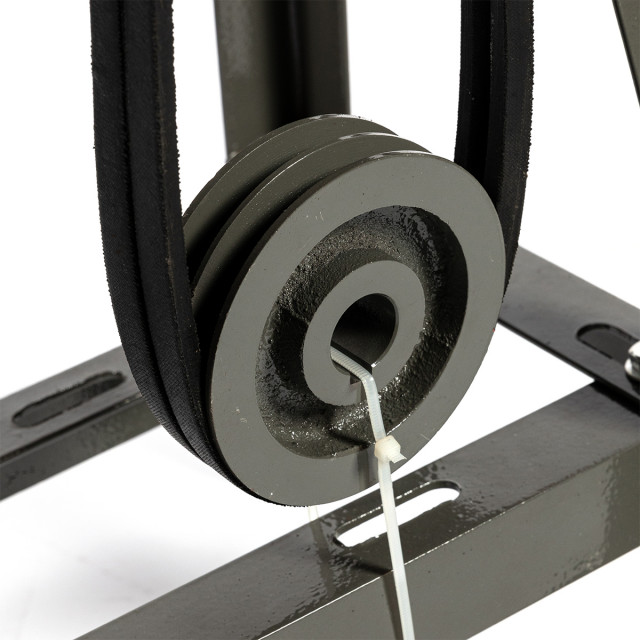

This chopper is delivered without engine but equipped with exhaust turbine, START/STOP controller and a set of pulleys and transmission belt.
The 350T forage chopper can be equipped with a 3.0kw, 3000rpm, 220V single-phase electric motor and a cyclone-type turbine for dust separation and collection.
Fodder chopper with turbine 350T without motor/cyclone GF-2019 has the following characteristics:
•Ergonomic design for easy handling and added comfort.
•Ensures the significant reduction of the chopping time of the fodder residues or grains from the household.
•Very high grinding productivity of up to 200kg/hour for fodder and 500kg/hour for cereals;
• The chopper has two capacious feeding troughs, one for grain and the other for fodder, which allow fast and efficient feeding directly from the bucket or bag;
• The chopper allows quick access to the grinding mechanism through a quick-clamp system.
• The chopper is delivered with a complete set of 4 filter sieves with perforations of 3mm, 5mm, 8mm and 20mm.
• Constructed of the best quality manufacturing materials, light and resistant for an extended life span;
Package contents:
• Pre-assembled chopper GF-2019 - 1 pc;
•Complete set of hammer knives and lamellar knives;
• Set of 4 filter sieves with perforations of 3mm, 5mm, 8mm and 20mm;
• Cereal food mouth;
• Mouth feeding fodder;
• Hexagon key and mounting screw set;
•Transport/storage box.
Grinding capacity 200 kg/hour for fodder and 500 kg/hour for cereals
Field of use Chopping fodder and plant residues
Frequency 50 Hz
Weight 55 kg
No. segment knives 3 blade port knives
No. disc type knives with hammers 3 disc knives with 4 axes carry hammers
Number of hammers 12 hammers
Power KW/W 3 KW
Voltage 220 V
Product type Shredders without motor
Engine speed (rpm) 3000 rpm
