Fodder chopper with turbine 30C without engine and cyclone
Our benefits
Description

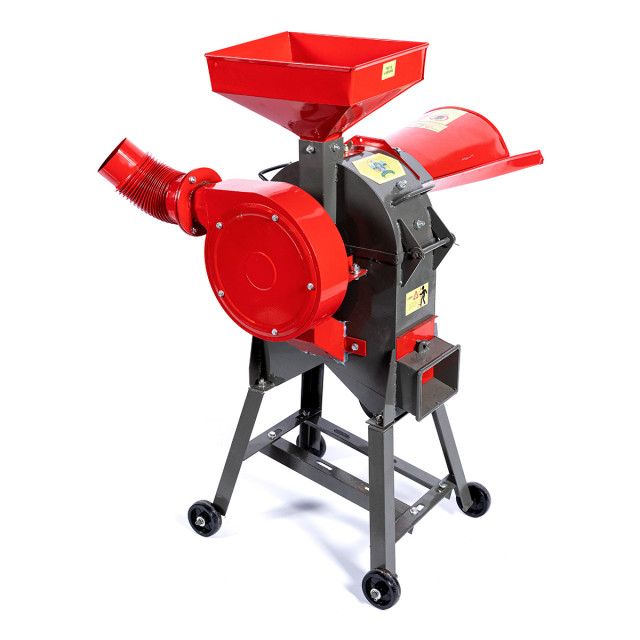

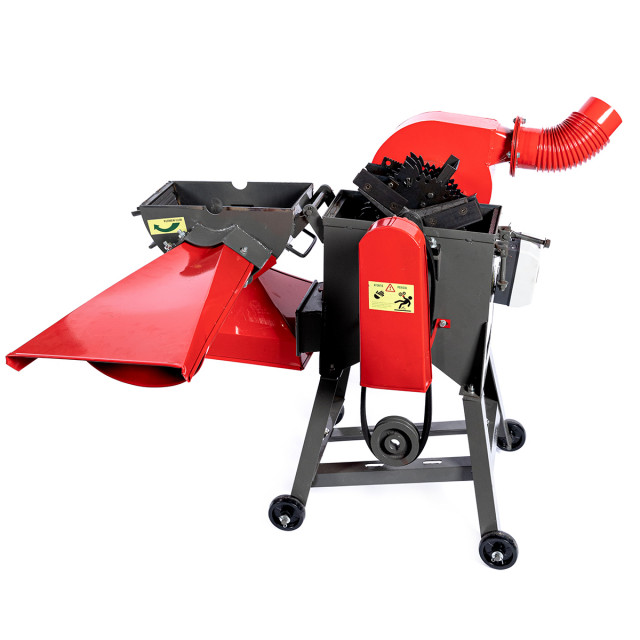

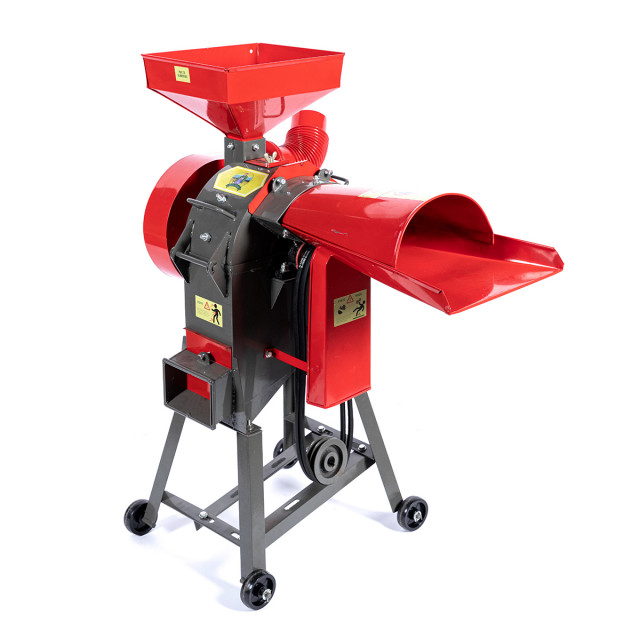

Fodder chopper with turbine 30C without engine and cyclone.
Technical specifications
The fodder chopper without motor and cyclone GF2023(30C) is a household product for shredding fodder residues from corn (- corn), sunflower, straw, alfalfa, barley, rye, etc. or the grinding of wheat, oat, corn, etc. grains.
For an efficient and loss-free operation, it is recommended that the fodder residues be dried very well in the sun a few days after harvesting.

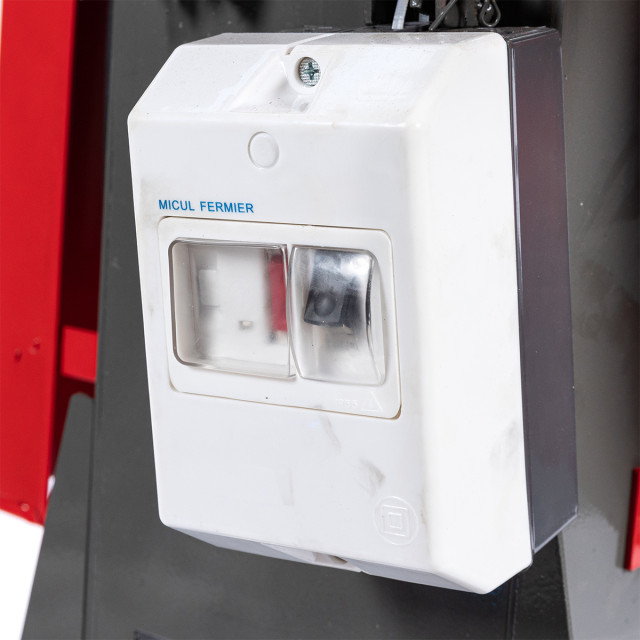

This chopper is delivered without an engine, without an exhaust turbine, but it has a START/STOP controller and a transmission pulley/belt set.

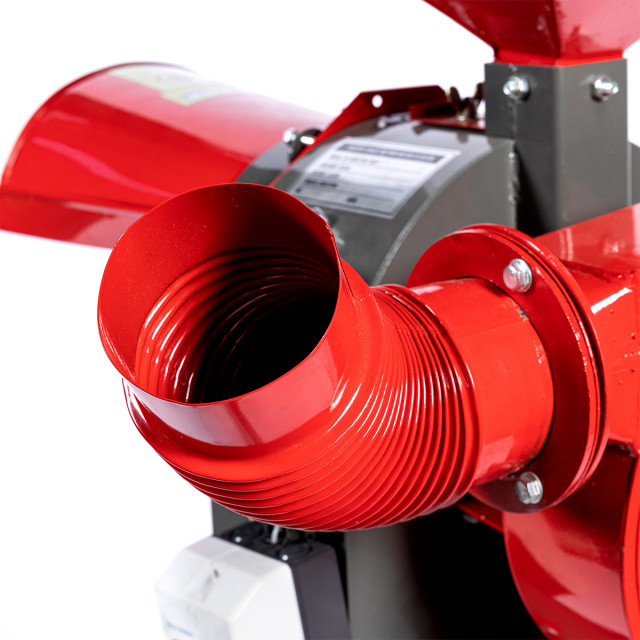

The GF-2023(30C) fodder chopper can be equipped with a 3.0kw, 3000rpm, 220V single-phase electric motor. This model is equipped with a turbine that allows optional coupling to a cyclone for dust separation and collection.
The feed chopper with 30C turbine without motor and cyclone GF-2023 has the following characteristics:
⦁ Ergonomic design for easy handling and added comfort.
⦁ Ensures the significant reduction of the chopping time of the fodder residues or grains from the household. Very high grinding productivity of up to 200kg/hour for fodder and 500kg/hour for cereals;
⦁ The chopper has two spacious feeding troughs, one for grain and the other for fodder, which allow fast and efficient feeding directly from the bucket or bag
⦁ The chopper allows quick access to the grinding mechanism through a quick-clamp system.

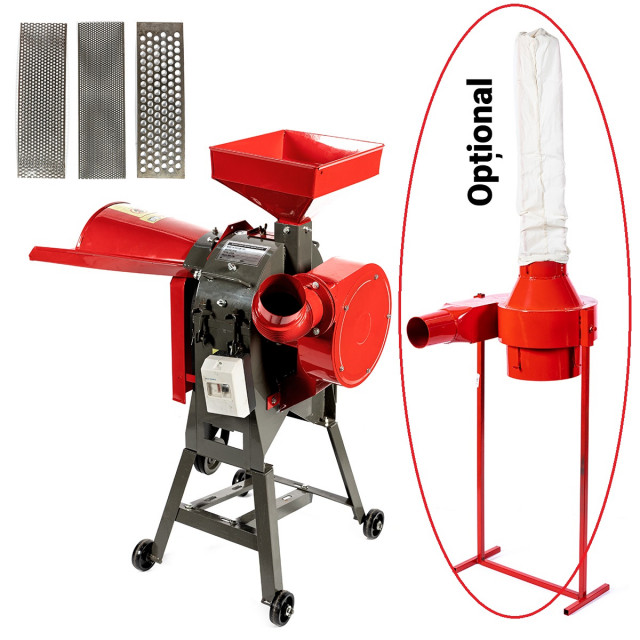

• The chopper is delivered with a complete set of 4 filter sieves with perforations of 3mm, 5mm, 8mm and 20mm.
⦁ Constructed of the best quality manufacturing materials, light and resistant for an extended life span;
⦁ Product with excellent price/quality ratio.
Package contents:
⦁ Pre-assembled chopper GF-2020 - 1 pc;

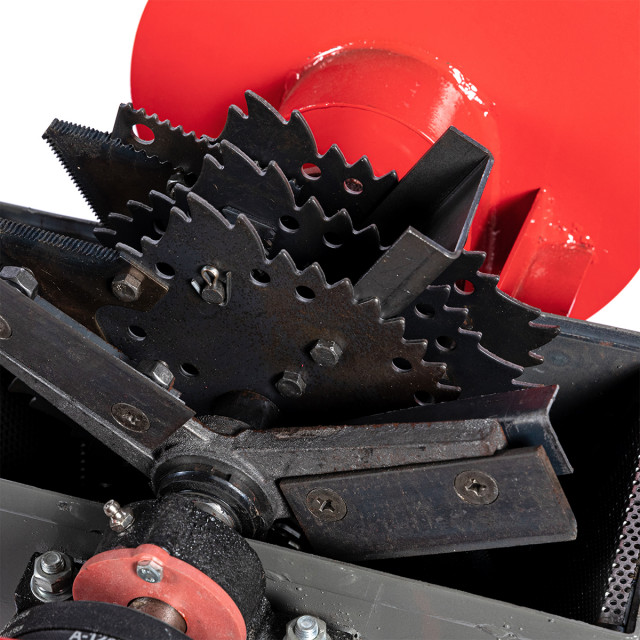

⦁ Complete set of hammer knives and lamellar knives;
⦁ Set of 4 filter sieves with perforations of 3mm, 5mm, 8mm and 20mm;
⦁ Cereal food mouth;
⦁ Feed mouth;
⦁ Hexagon key and mounting screw set;
⦁ Transport/storage box.
Grinding capacity 500 kg/hour
Frequency 50 Hz
Weight 50 kg
No. lamella knives 3 lamella port knives
No. disc type knives with hammers 3 disc knives with 4 axes carry hammers
Number of hammers 12 hammers
Compatible engine power KW/W (not included) 3 KW
Voltage 220 V
Manual/centrifugal loading/unloading type
Product type Shredders without motor
Compatible engine speed (rpm) (not included) 3000 rpm
Instruction manual:
