Fodder chopper 360 (without engine and cyclone)
Our benefits
Description
Fodder chopper 360 (without engine and cyclone).
Technical specifications
The 360 fodder chopper without motor and cyclone GF2020 is a household product for shredding fodder residues from corn (chocolate), sunflower, straw, alfalfa, barley, rye, etc. or the grinding of wheat, oat, corn, etc. grains.
For an efficient and loss-free operation, it is recommended that the fodder residues be dried very well in the sun a few days after harvesting.

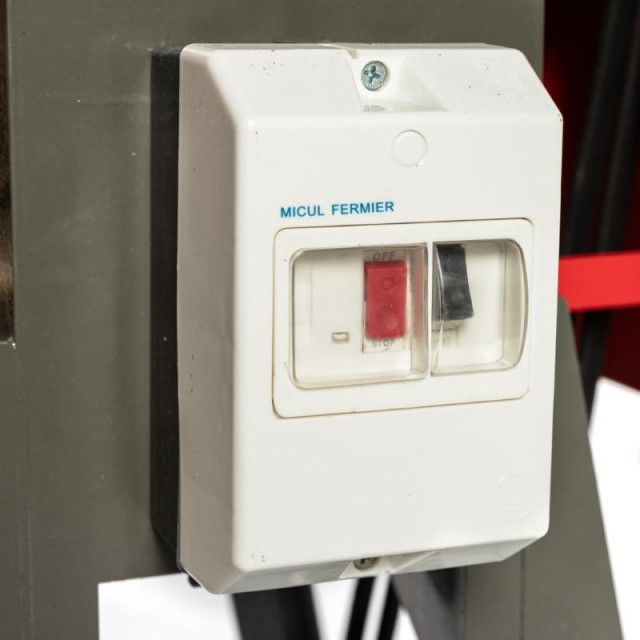

This shredder is delivered without an engine, without an exhaust turbine, but it has a START/STOP controller and a transmission pulley/belt set.
The 360 fodder chopper, without motor and cyclone GF-2020 can be equipped with a 3.0kw, 3000rpm, 220V single-phase electric motor. This model cannot be equipped with a cyclone type turbine for dust separation and collection.
The 360 fodder chopper without motor and cyclone GF2020 has the following features:
•Ergonomic design for easy handling and added comfort.
•Ensures the significant reduction of the chopping time of the fodder residues or grains from the household. Very high grinding productivity of up to 200kg/hour for fodder and 500kg/hour for cereals;
• The chopper has two capacious feeding troughs, one for grain and the other for fodder, which allow fast and efficient feeding directly from the bucket or bag;
• The chopper allows quick access to the grinding mechanism through a quick-clamp system.
• The chopper is delivered with a complete set of 4 filter sieves with perforations of 3mm, 5mm, 8mm and 20mm.
• Constructed of the best quality manufacturing materials, light and resistant for an extended life span;
•Product with excellent price/quality ratio.
Package contents of the 360 fodder chopper without motor and cyclone GF2020:
• Pre-assembled chopper GF-2020 - 1 pc;

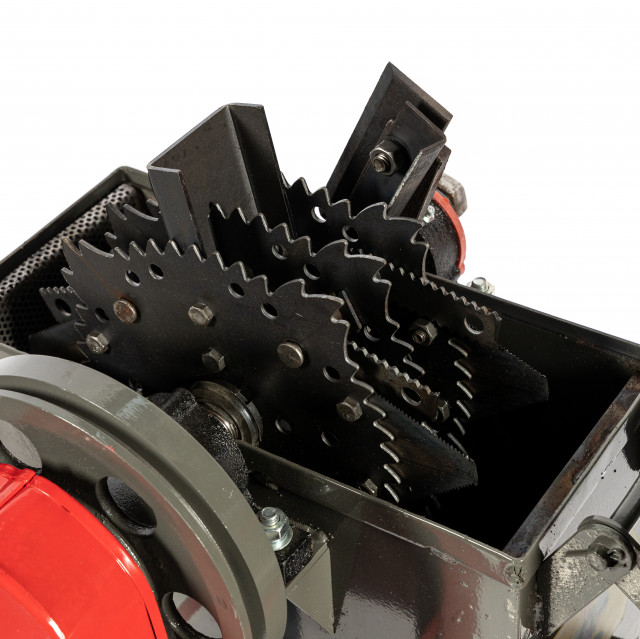

•Complete set of hammer knives and lamellar knives;
• Set of 4 filter sieves with perforations of 3mm, 5mm, 8mm and 20mm;
• Cereal food mouth;
• Mouth feeding fodder;
• Hexagon key and mounting screw set;
•Transport/storage box.
Grinding capacity 200 kg/hour for fodder and 500 kg/hour for cereals
Protection class IP55
Electrical protection class Double insulated II
Dimensions 640 x 540 x 450 mm
Frequency 50 Hz
Frequency (Hz) 50 Hz
Gross weight 50 kg
Weight 50 kg
Net weight 45kg
No. lamella knives 3 lamella port knives
No. disc type knives with hammers 3 disc knives with 4 axes carry hammers
Number of hammers 12 hammers
Power KW/W compatible (not included) 3 KW
Voltage 220 V
Manual/centrifugal loading/unloading type
Product type Shredders without motor
Compatible engine operating speed (not included) 3000rpm
Compatible engine speed (rpm) (not included) 3000 rpm
Instruction manual:
