Holzfforma® G3120 chainsaw (without guide bar and chain) 118.8cc
Description
Holzfforma® G3120 chainsaw – 118.8 cm³, 5.8 kW
High power for demanding forestry work. The Holzfforma G3120 is a high-capacity petrol chainsaw, fitted with a 118.8 cm³ 2-stroke engine and delivering 5.8 kW (approximately 8 CP) of power.
Designed for cutting large logs and for forestry work requiring high power and a high cutting capacity.

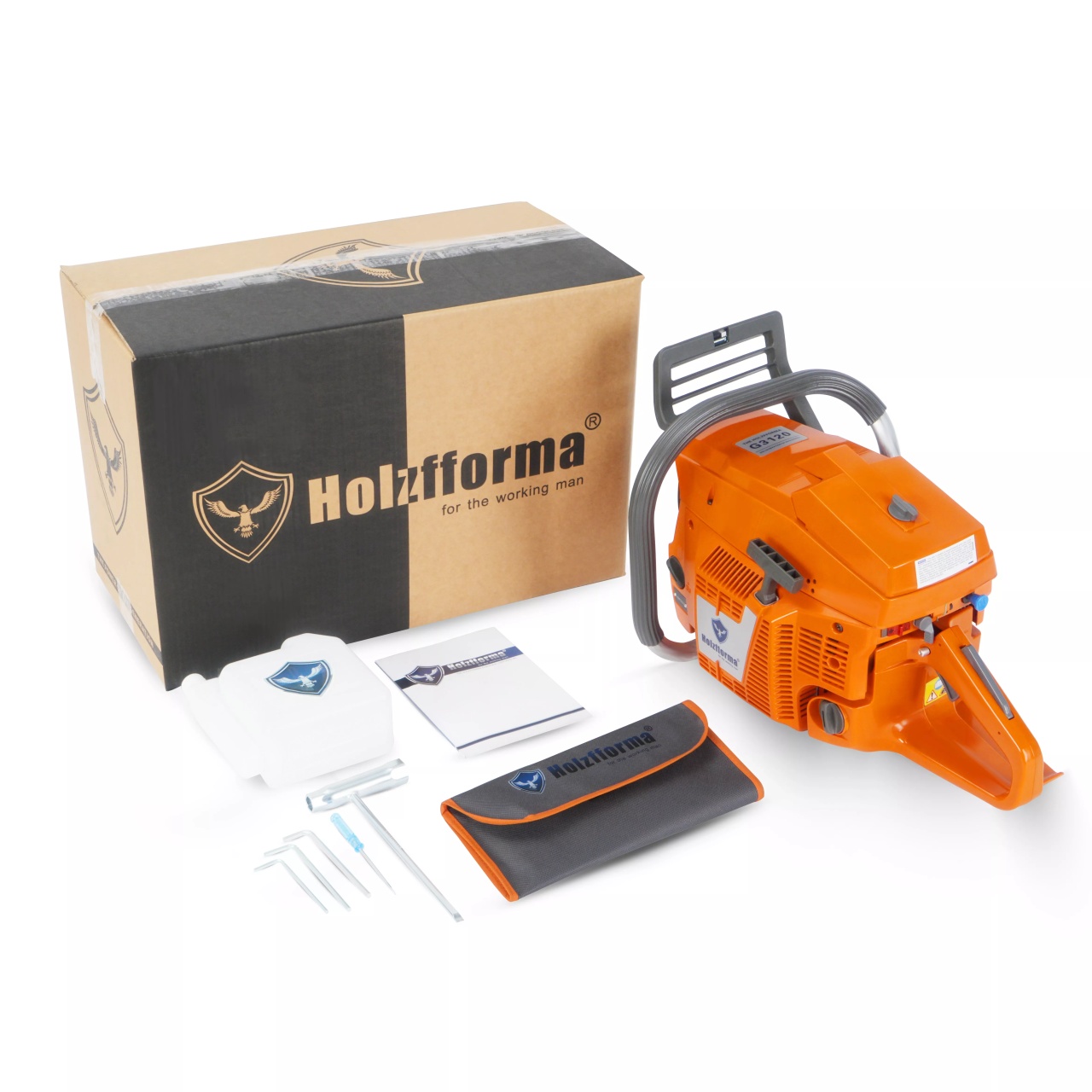

✓ Fully assembled
The Holzfforma G3120 chainsaw is supplied fully assembled.
Unlike the semi-assembled version, there is no need to fit the chainsaw’s main components.
To use the chainsaw, you will need to purchase and fit a compatible guide bar and chain, as well as carry out the fueling and safety checks set out in the manual.
⚠️ Please note: supplied without a blade or chain
The product is supplied without a blade or cutting chain.
These accessories must be purchased separately. Below you will find a compatible configuration for the Holzfforma G3120.
🪚 Complete your chainsaw with a blade and chain
For the Holzfforma G3120, you can choose the 91 cm cutting configuration, with a pitch of .404" and a thickness of 1.6 mm.
104DL • pitch .404" • 1.6 mm
Holzfforma guide bar and chain for the G3120 chainsaw.
The blade and chain are not included in the price of the chainsaw. Before fitting, check that the blade, chain and drive sprocket are compatible.

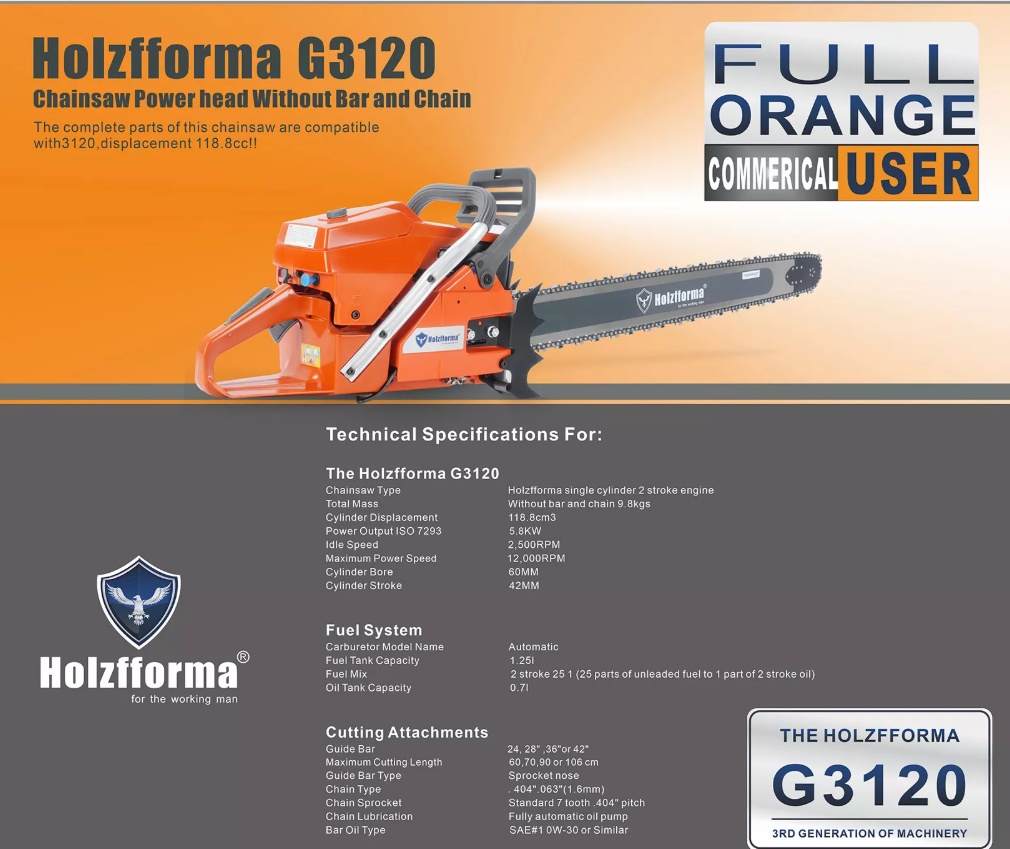

⚙️ Holzfforma G3120 technical specifications
| Feature | Specification |
|---|---|
| Model | Holzfforma G3120 |
| Delivery condition | Assembled, without blade and chain |
| Engine | 2-stroke, single-cylinder |
| Engine capacity | 118.8 cm³ |
| Power | 5.8 kW (approx. 8 CP) |
| Idle speed | 2,500 rpm |
| Maximum speed | 12,000 rpm |
| Cylinder bore | 60 mm |
| Piston stroke | 42 mm |
| Weight without blade and chain | 9.8 kg |
| Carburettor | Automatic |
| Fuel | Unleaded petrol, minimum 90 RON |
| Fuel mixture | 25:1 as per the product data sheet |
| Fuel tank | 1.25 litres |
| Recommended blade lengths | 24", 28", 36", 42" |
| Chain pitch | .404" |
| Chain thickness | 1.6 mm (.063") |
| Drive sprocket | 7 teeth, pitch .404" |
| Chain lubrication | Automatic |
| Oil reservoir | 0.70 litres |
| Recommended blade oil | SAE 10W-30 or equivalent |
🌲 Key features
📚 Documentation and instructions
Please consult the user manual before first use for information on fuel, lubrication, adjustments, maintenance and safe operation.
Why choose the pre-assembled Holzfforma G3120?
The Holzfforma G3120 is designed for users who need a powerful chainsaw with a large engine capacity and the option to fit long cutting attachments.
The fully assembled version eliminates the need to fit the main components, whilst the separate purchase of the blade and chain allows you to choose the right configuration for your planned work.
118.8 cm³ engine • Power 5.8 kW • Automatic lubrication system • Blade and chain not included
