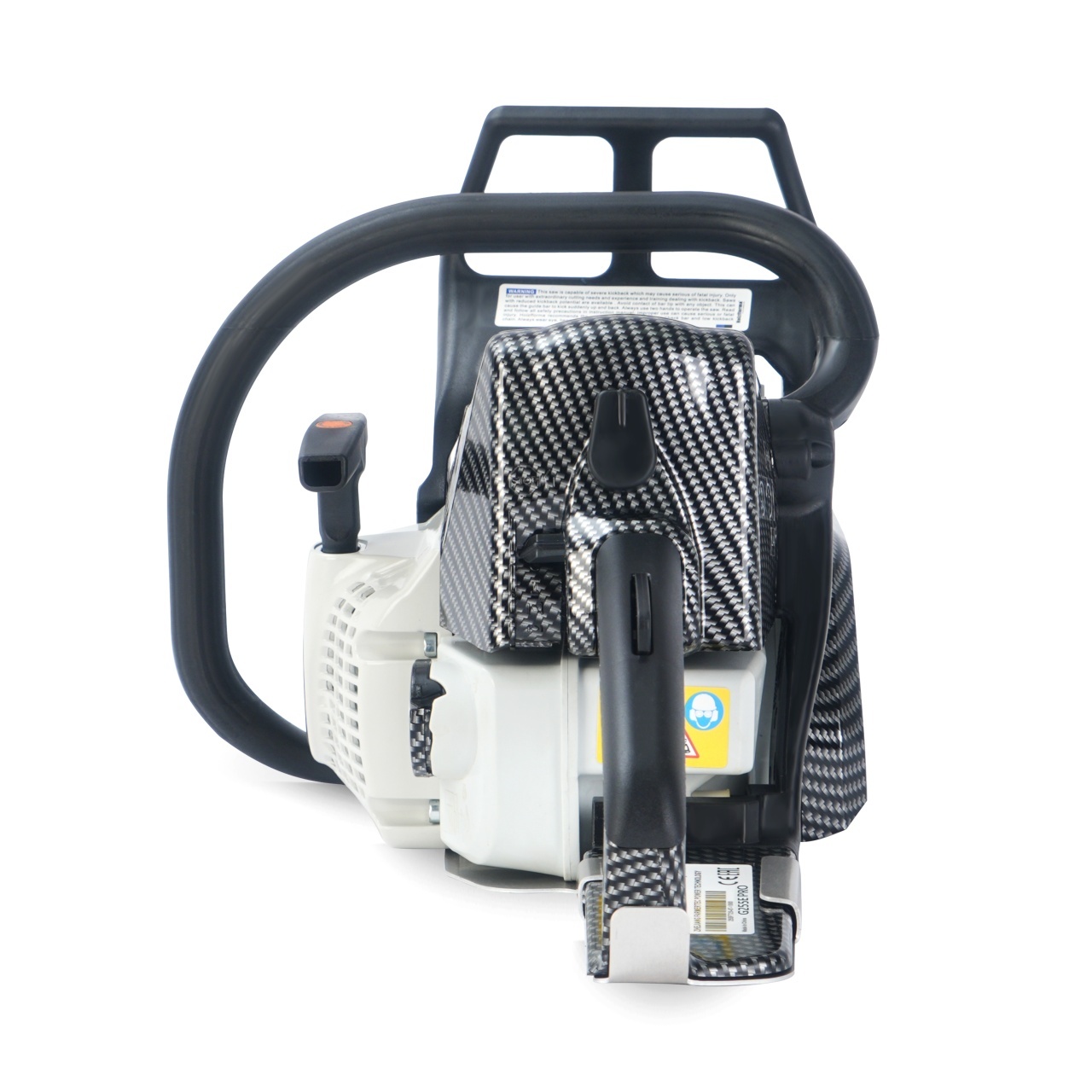

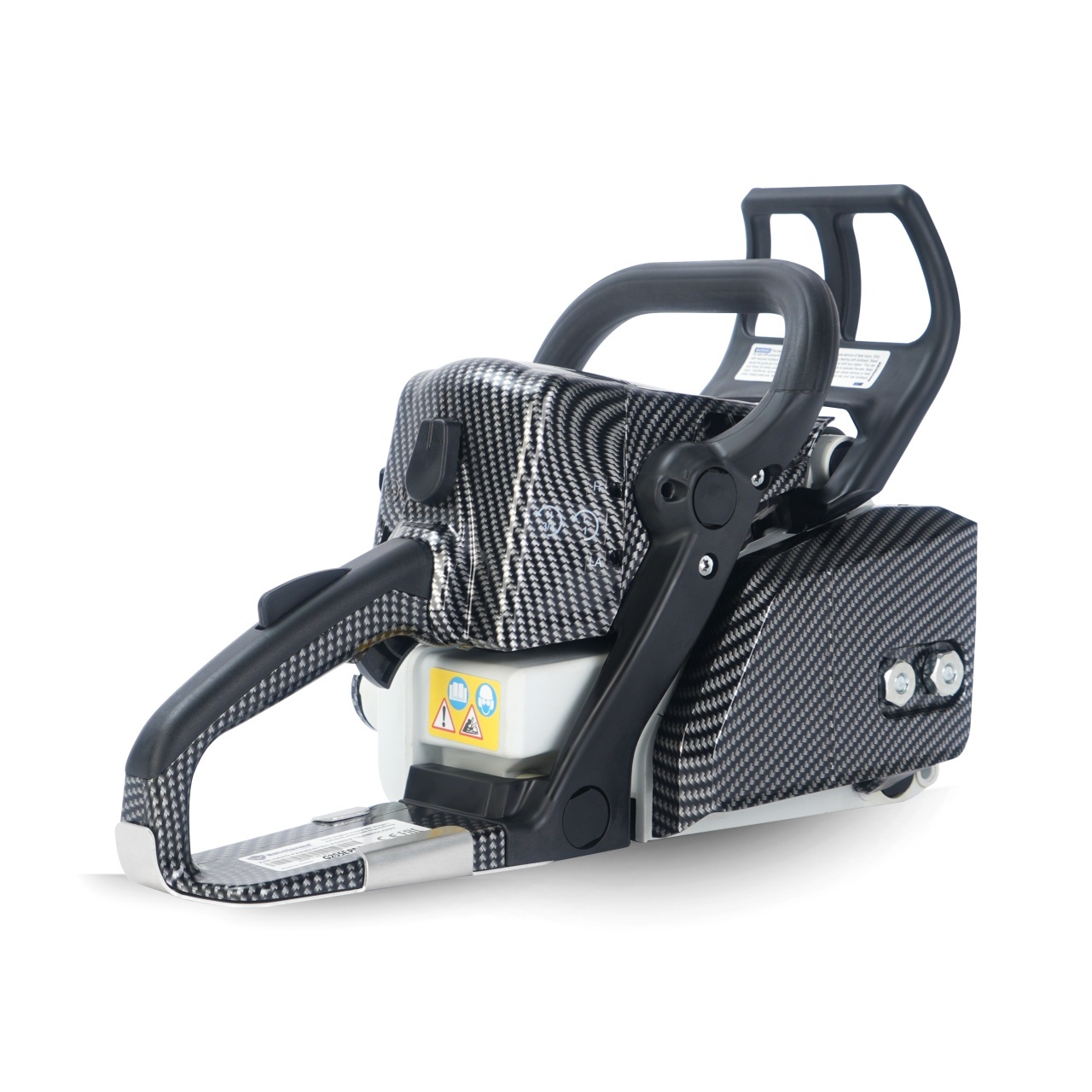

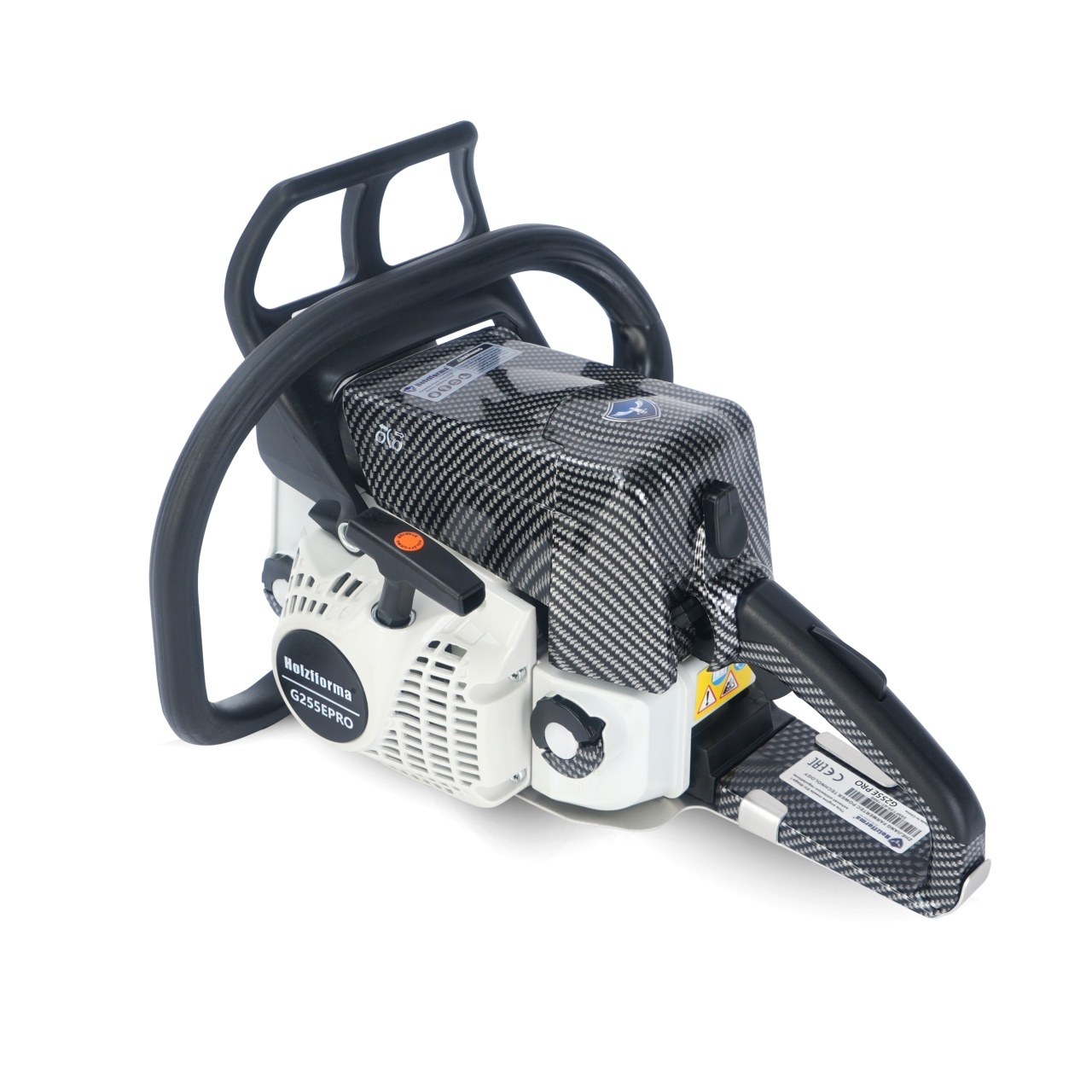

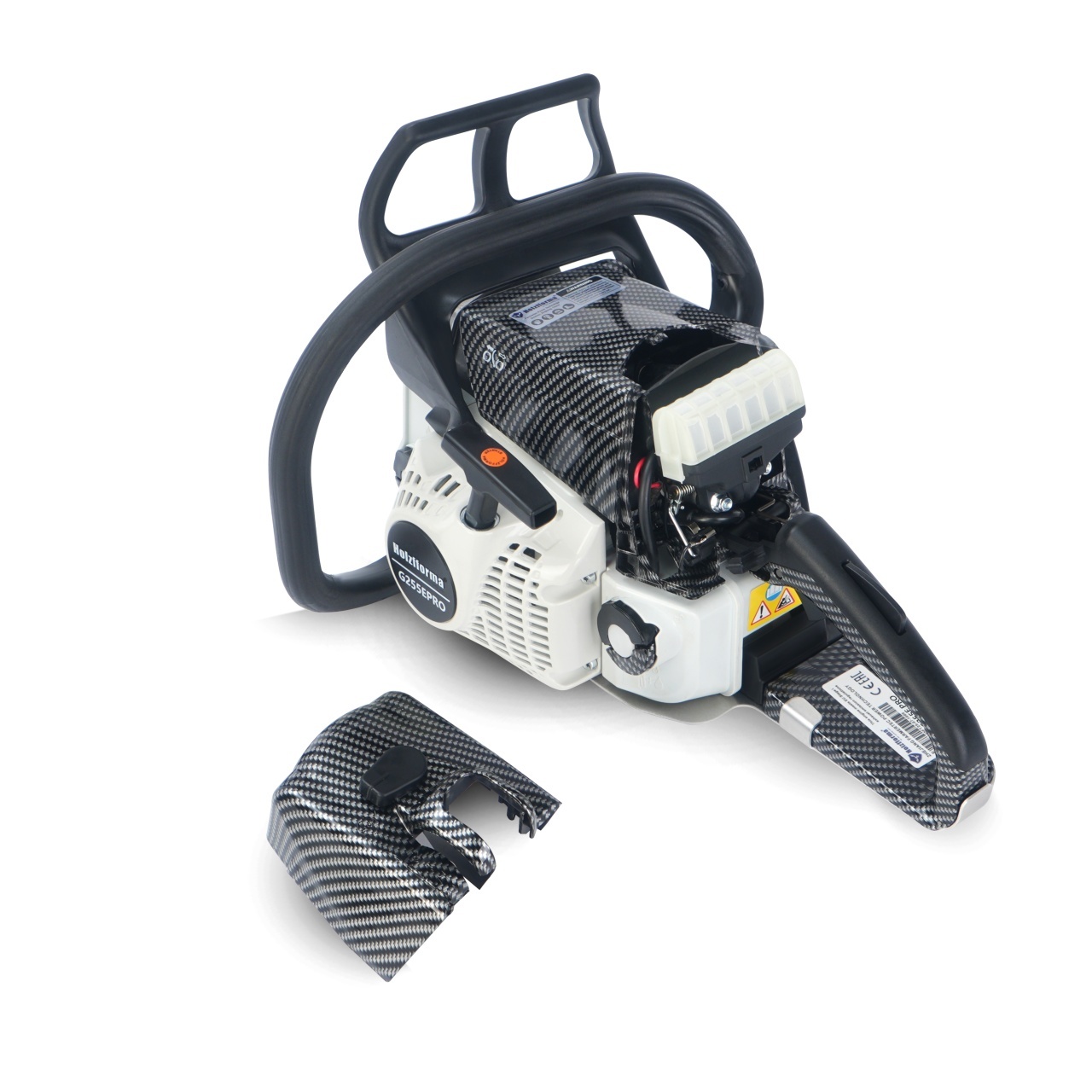

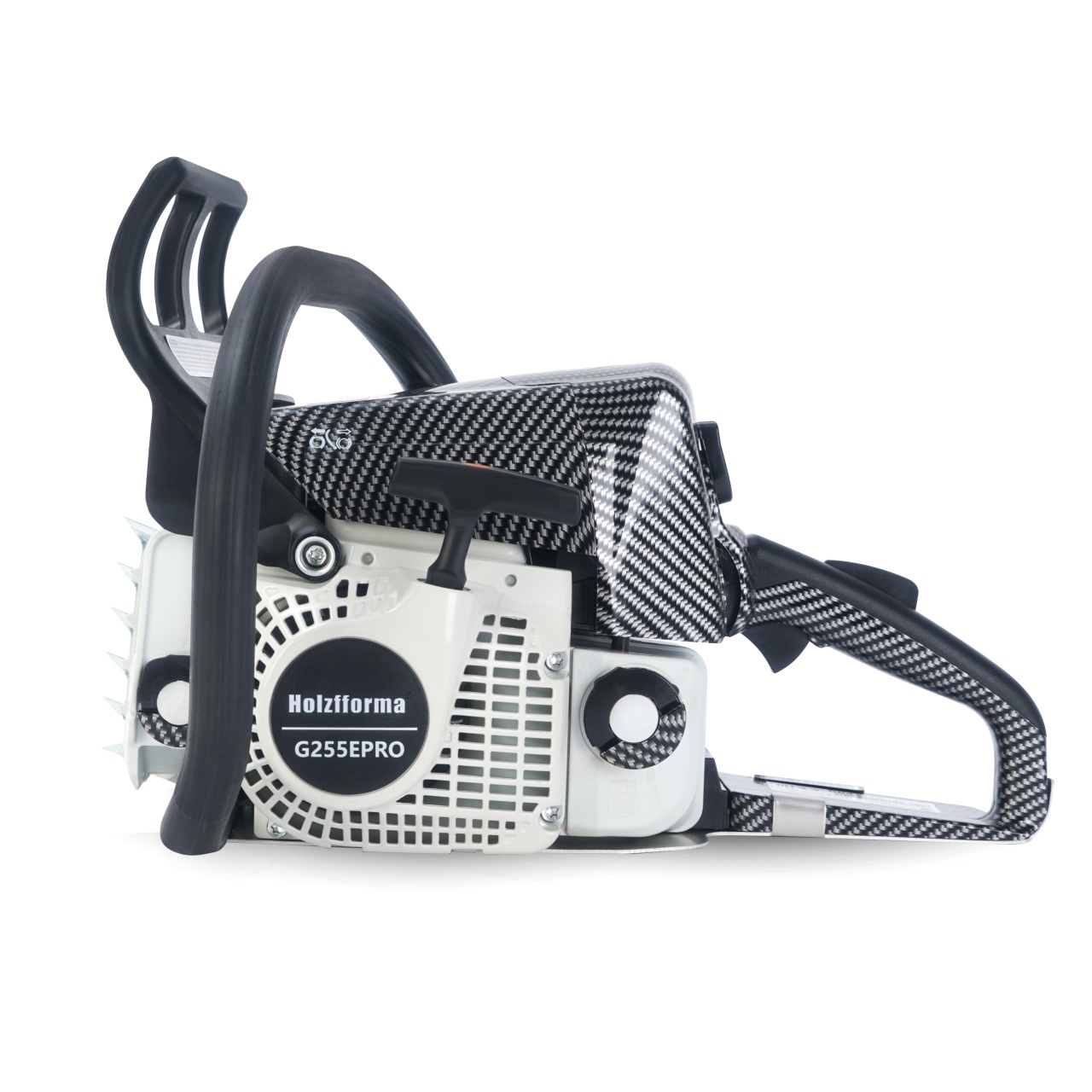

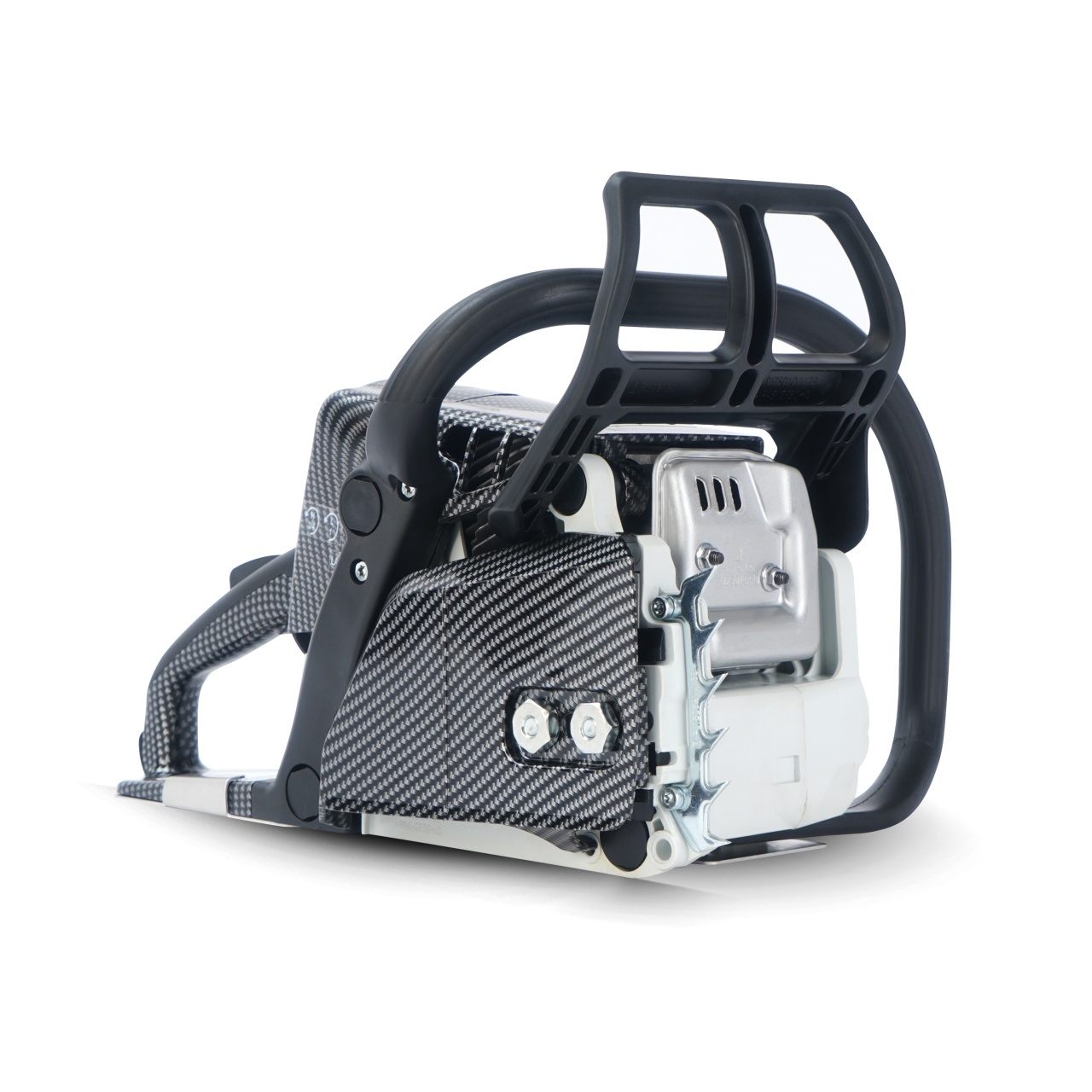

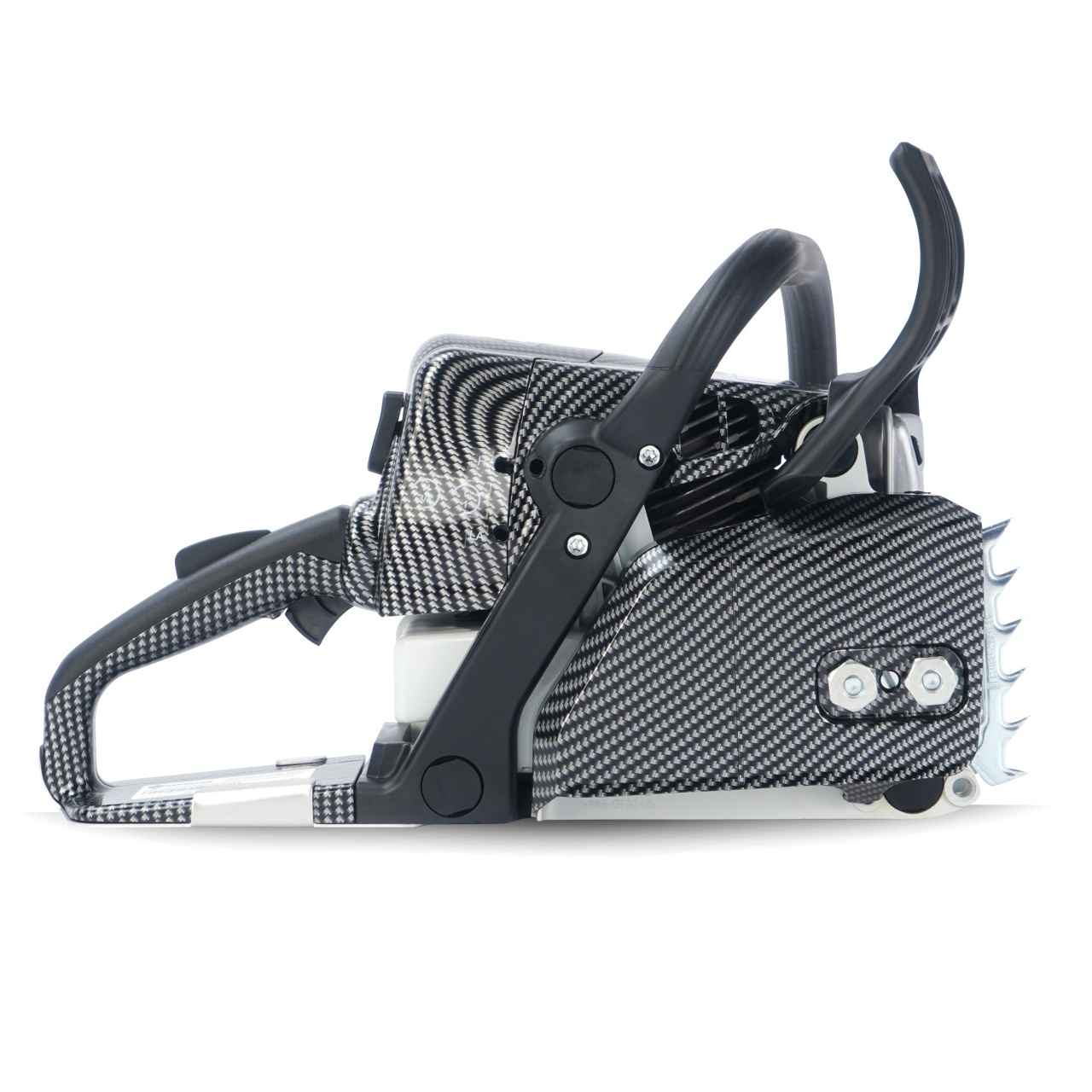

Holzfforma® G255E PRO semi-assembled chainsaw
Partially assembled product – supplied without blade and chain The Holzfforma® G255E PRO is sold in a partially assembled version and requires the final assembly of certain components before first use. The
blade and chain are not included in the pack.
⚙ 45.4 cm³ 2-stroke engine
⚡ 2.1 kW Engine power
✓ 4.8 kg (excluding blade and chain)
Holzfforma G255E PRO – specifications and features
Complete the chainsaw for use
The Holzfforma G255E PRO is supplied without a guide bar or chain. You can choose one of the compatible configurations below.
35 cm
25 teeth • 3/8" Picco pitch • 1.3 mm
40 cm
27.5 teeth • 3/8" Picco pitch
Important: the blade and chain are not included in the pack. Always choose a blade and chain with the same pitch and compatible configuration.

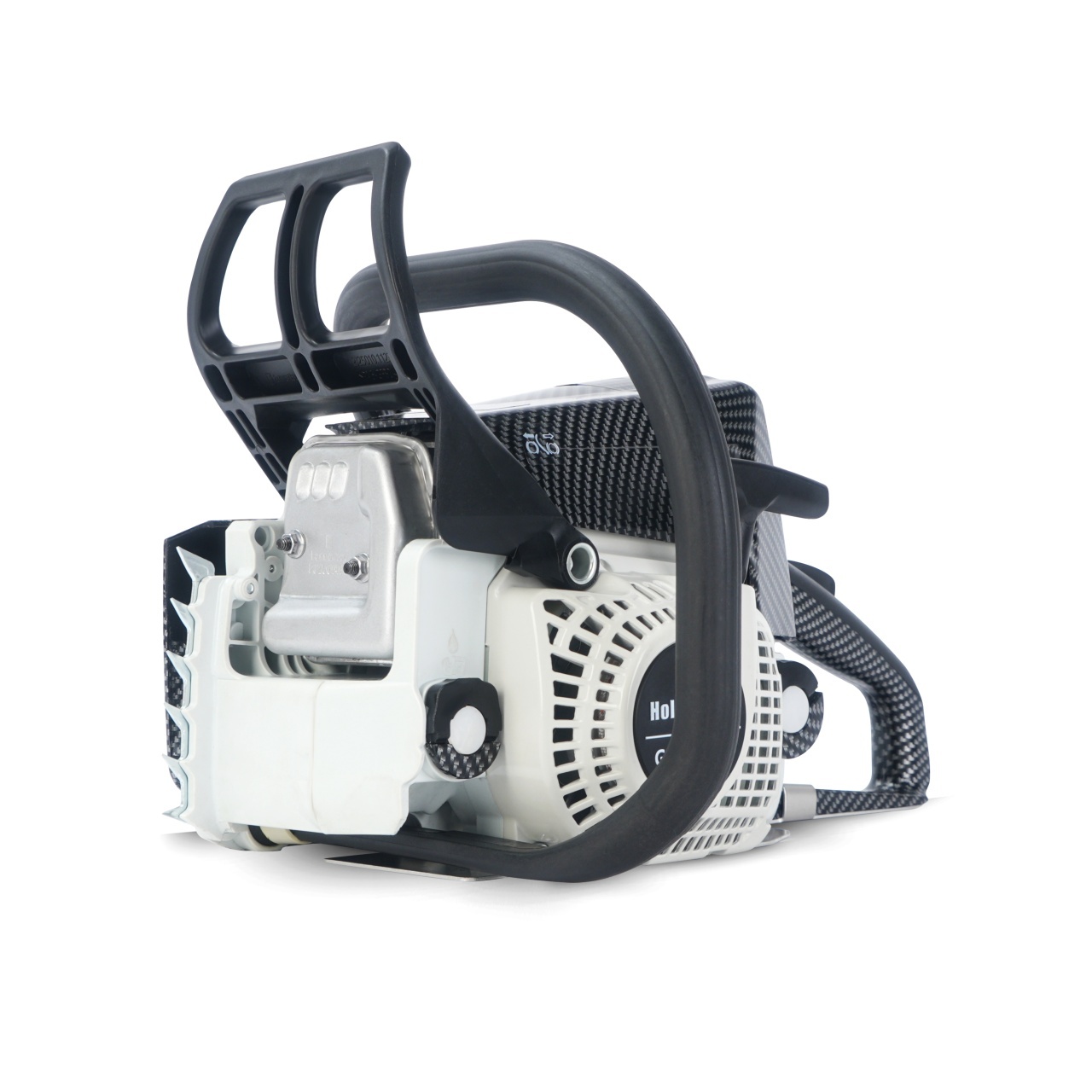

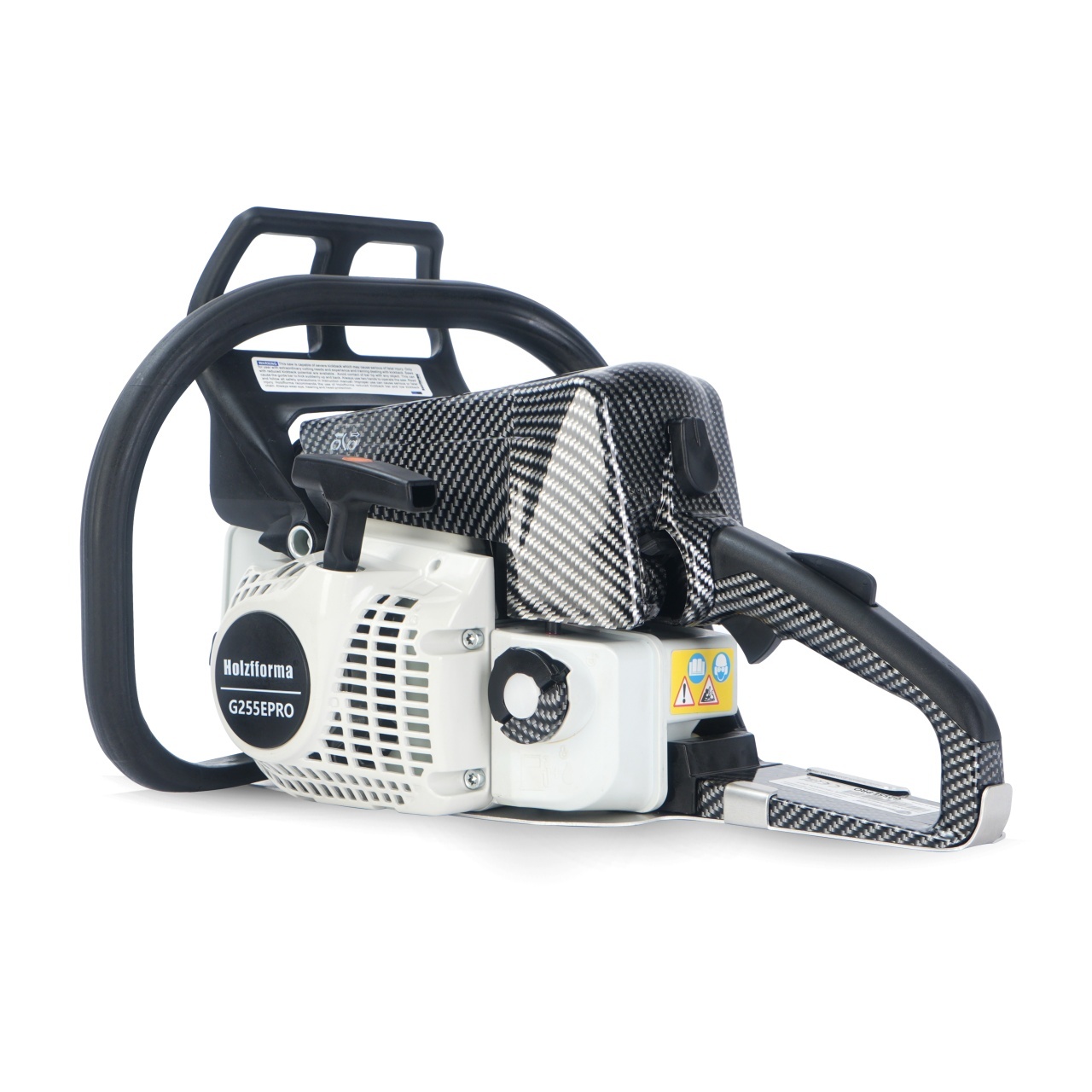

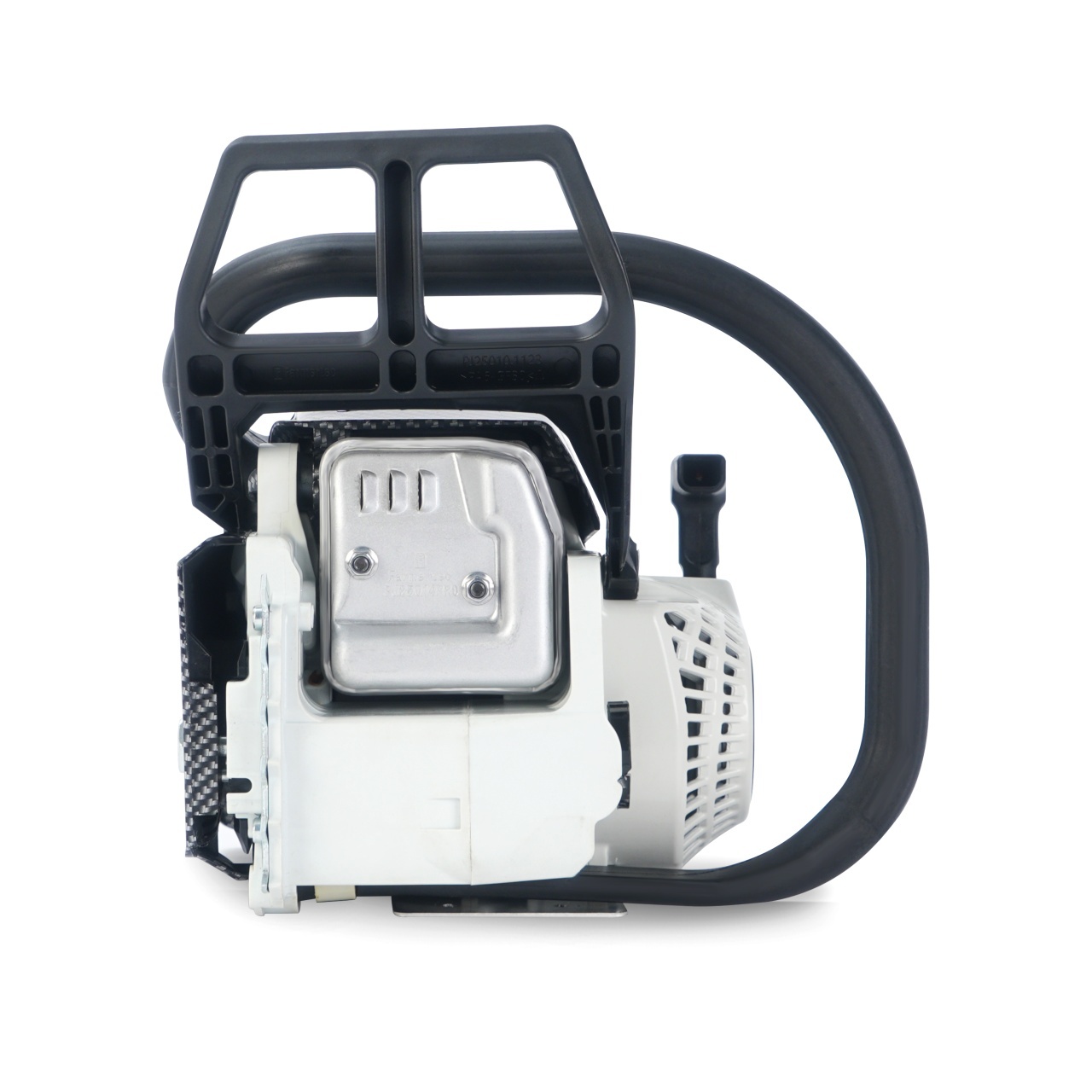

Holzfforma G255E PRO
The Holzfforma® G255E PRO is the upgraded version of the G255 model, featuring a single-cylinder 2-stroke engine with a displacement of 45.4 cm³.
The PRO version features dedicated components to improve starting and operation: a Walbro carburettor, Easy Start system, enhanced FarmerBoss components and additional fuel tank protection.
Its compact design and low weight make the model easy to manoeuvre, whilst the automatic lubrication system ensures the chain is lubricated during operation.
G255E PRO Specifications
Walbro carburettor – PRO version-specific specification
Easy Start system for easier starting
FarmerBoss: Enhanced components
Fuel tank guard Additional guard
45.4 cm³ Single-cylinder 2-stroke engine
Automatic lubrication Automatic chain pump
Technical specifications
Engine type: 2-stroke, single-cylinder
Displacement 45.4 cm³
Power: 2.1 kW
Idle speed 2,800 rpm
Maximum speed 13,500 rpm
Cylinder bore: 42.5 mm
Piston stroke 32 mm
Weight without blade and chain: 4.8 kg
Walbro carburettor
Easy Start system
Fuel: Unleaded petrol, min. 90 RON
Fuel-air mixture ratio 25:1
Fuel tank capacity approx. 0.47 l
Bar lengths: 35 / 40 / 45 cm
Chain configurations: 3/8" Picco / .325"
Chain lubrication: Automatic oil pump
Oil tank approx. 0.20 l

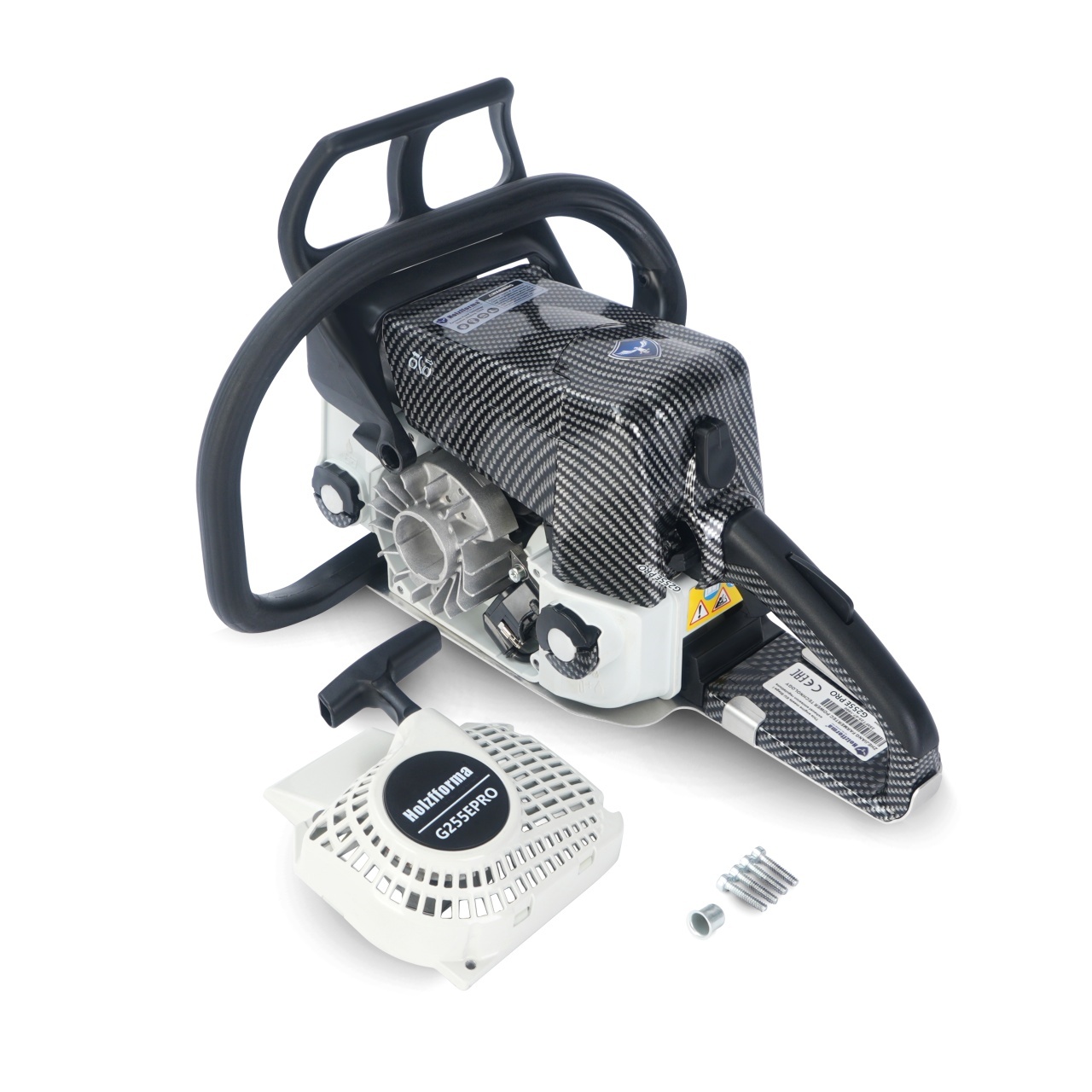

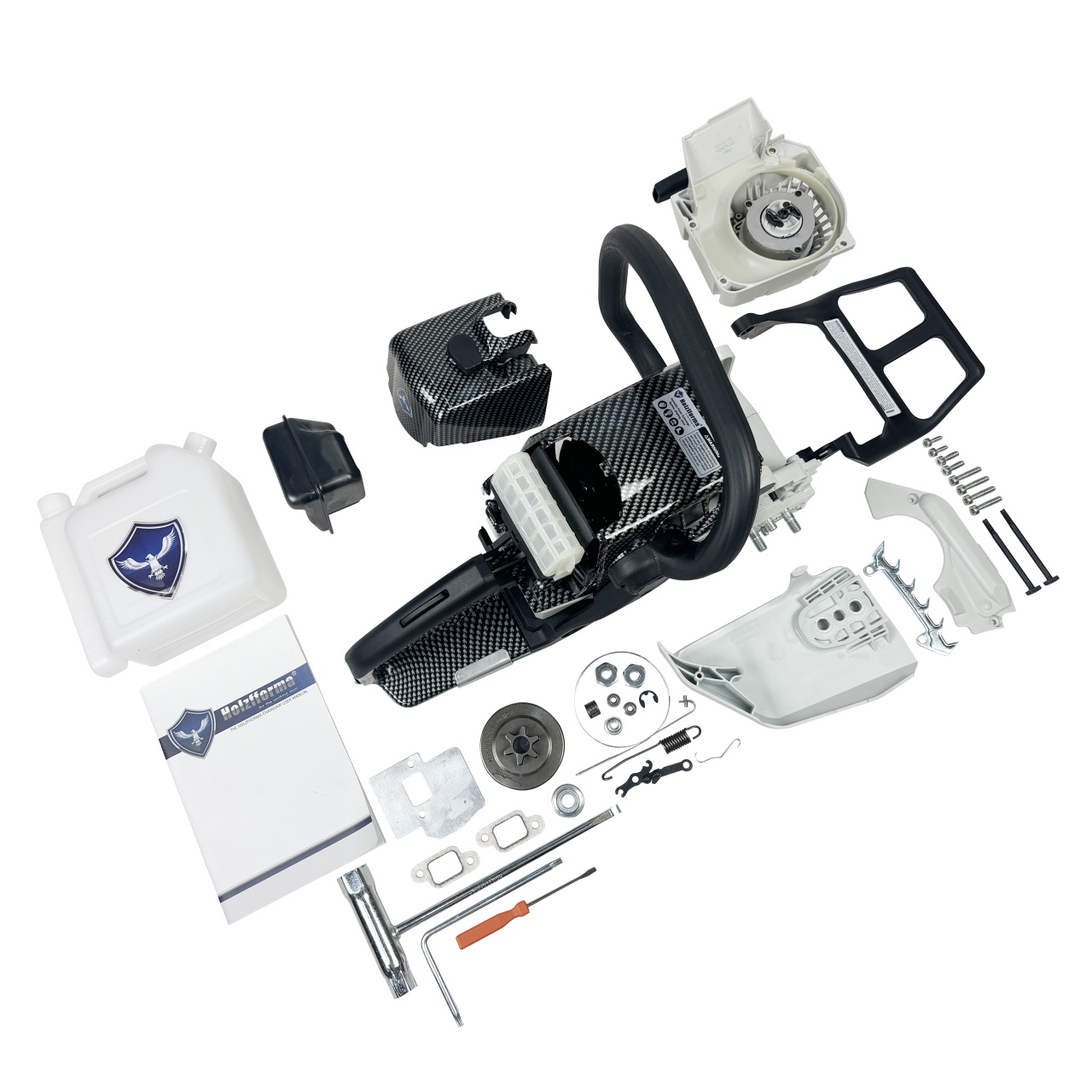

Product assembly
The product is supplied semi-assembled and requires final assembly before first use.
Check all components and fastenings before starting the product.
✓ Complete assembly
✓ Blade fitting
✓ Fitting the chain
✓ Adjust chain tension
✓ Oil supply
✓ Final check
Holzfforma G255E PRO video presentation
Watch the video for a presentation of the Holzfforma G255E PRO model.
Documentation
Please consult the user manual before assembling, starting up and using the product.
Important: The Holzfforma® G255E PRO is supplied partially assembled, without the blade or chain.
Before using it for the first time, complete the assembly of the product correctly and check the blade fitting, chain tension and the operation of the lubrication system.
