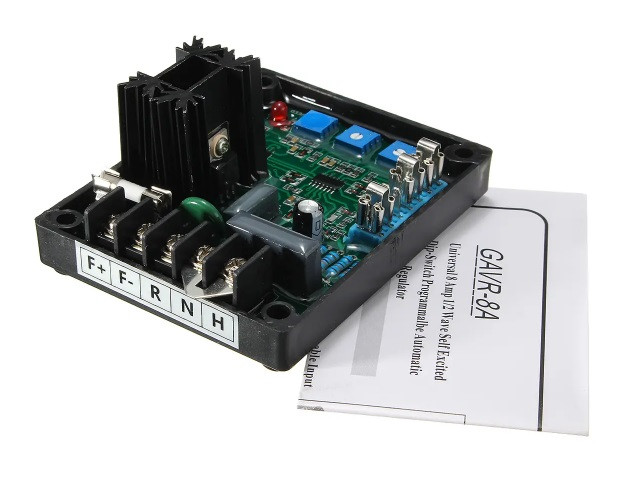

AVR Generator model 8 Amps

Description

AVR Generator model 8 Amps.

The 8-amp phase-controlled half-wave automatic voltage regulator is part of the excitation system for three-phase brushless generators. In addition to regulating the generator voltage, the AVR circuit includes protection against speed losses and a sensor to ensure safe and reliable control of the generator.

Technical specifications:

-SENSING INPUT
-Voltage: 110/220 / 400V ac max
-Frequency: 50-60 Hz nominal
-POWER INPUT
-Voltage: 100-260V ac max
-Frequency: 50-60 Hz nominal
-OUTPUT
-Voltage: max 90V dc at 240V ac input
-Current: continuous 3A, Intermittent 5A for 10 secs.
-Resistance: Min.15Ω Max.100Ω
-REGULATION: +/- 1%
