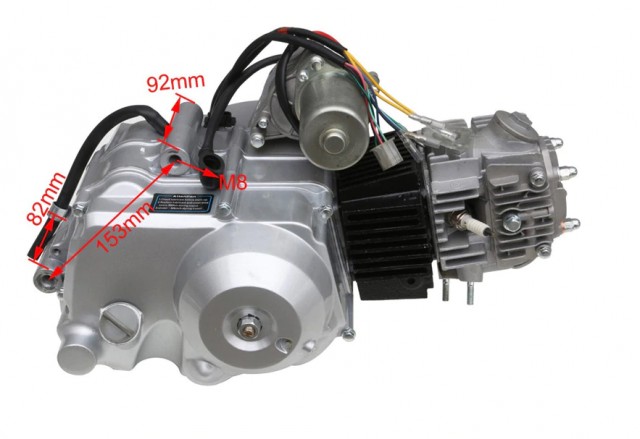

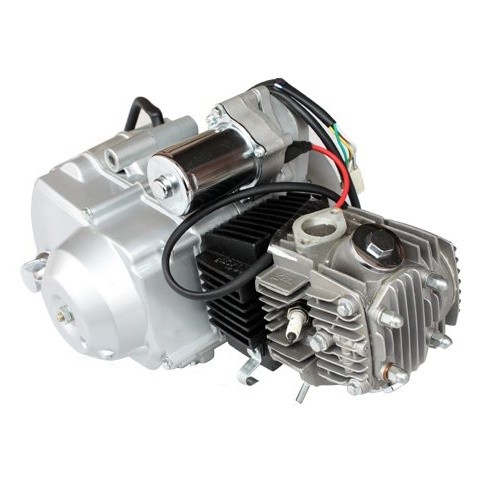

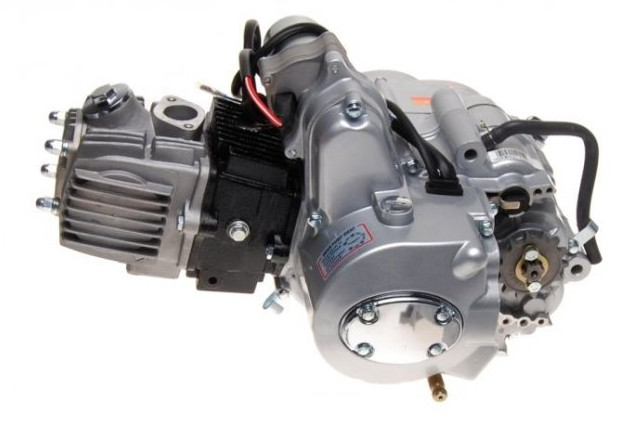

Complete engine for ATV 110cc (gearbox 1+1)
€170.39
(VAT included)
€183.67
Delivery costs are not included
Delivery between 3 ~ 6 working days anywhere in Europe
Available in stock
Our benefits
Description
This complete engine is compatible with ATVs with a cylinder capacity of 110cc.
The engine includes: crankcase, cylinder head, electric motor, engine set.
The engine has a 1 + 1 automatic gearbox
Technical specifications:
Model 1P53FMH-2
Type. Single, four-stroke, air-cooled, horizontal cylinder
Bore × stroke (mm) 52.4 × 49.5
Cylindrical capacity 106.7 cm3
Compression ratio 9.0 ： 1
Maximum power 5.1 kW at 8000 ± 500 rpm
Maximum torque 7.2 Nm at 5000 ± 500 rpm
Ignition 15º ± 2º before TDC
SAE 10W / 40 API SF engine oil
Spark plug A7TC / A7RTC
Non-contact ignition, C.D.I.
Oil tank capacity 0.8 l
Dimensions 460 mm × 300 mm × 260 mm
Weight 21 ± 1 kg
DOES NOT CONTAIN CARBURETOR!
