Complete cylinder for motocycle Cross 125cc (gearbox 4+0)
Our benefits
Description

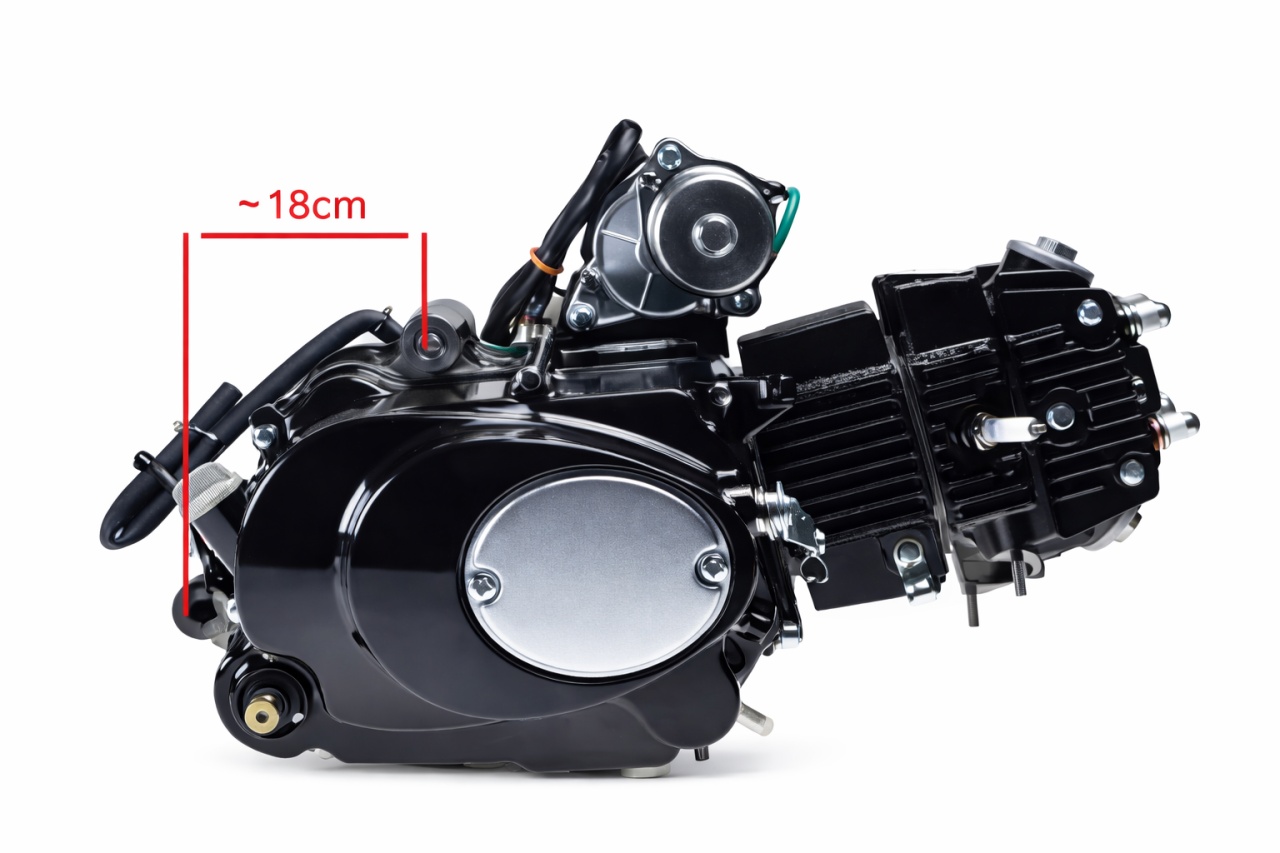

This complete engine is compatible with 125cc cylindrical cross (enduro) motorcycles.

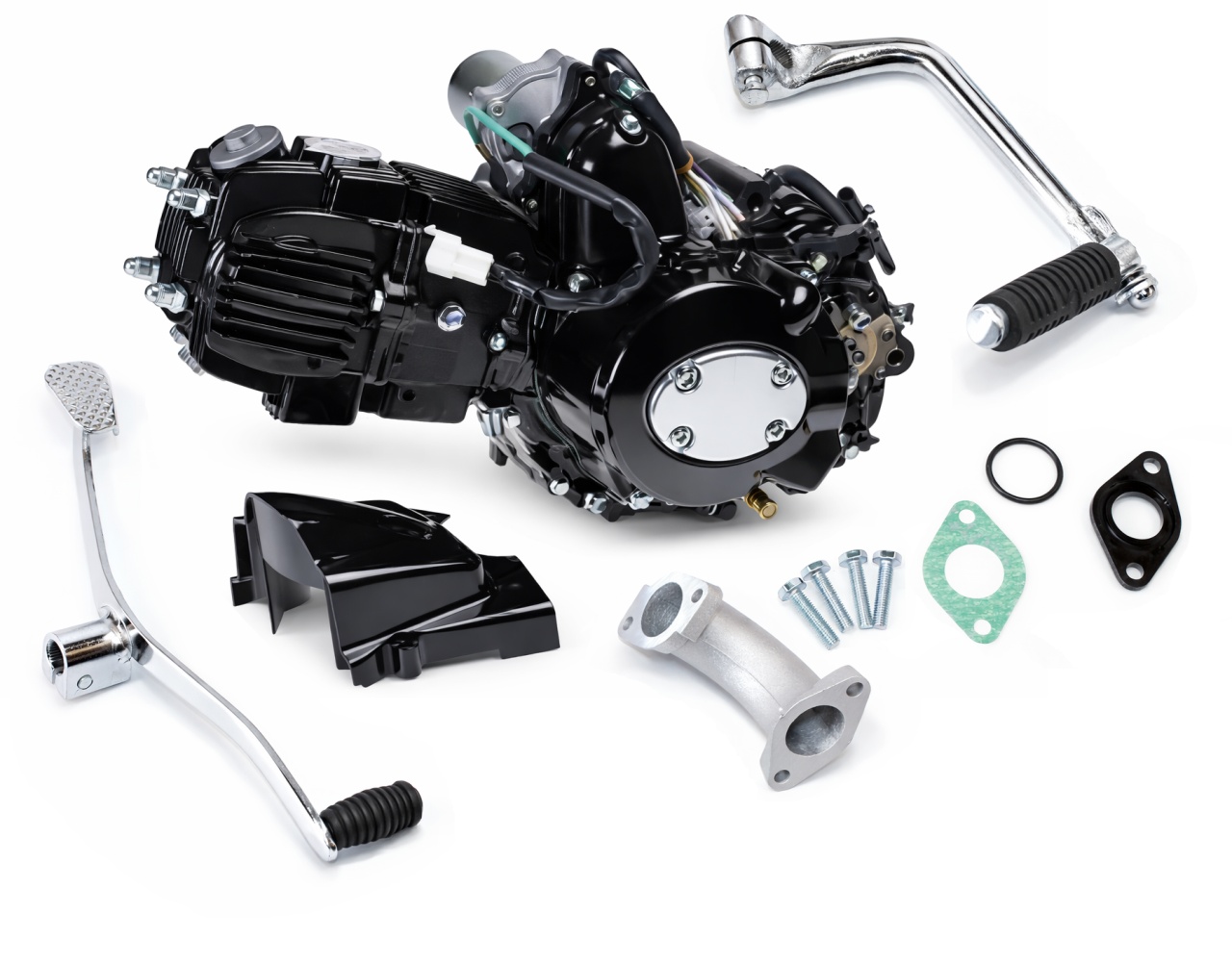

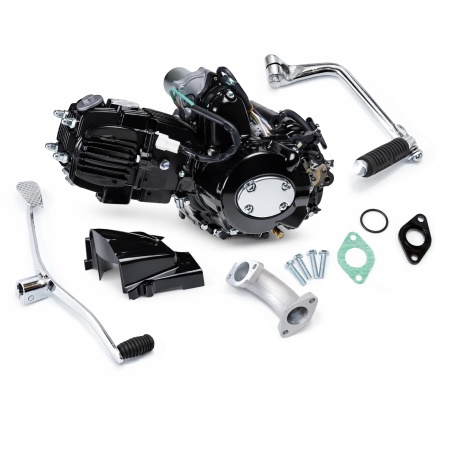

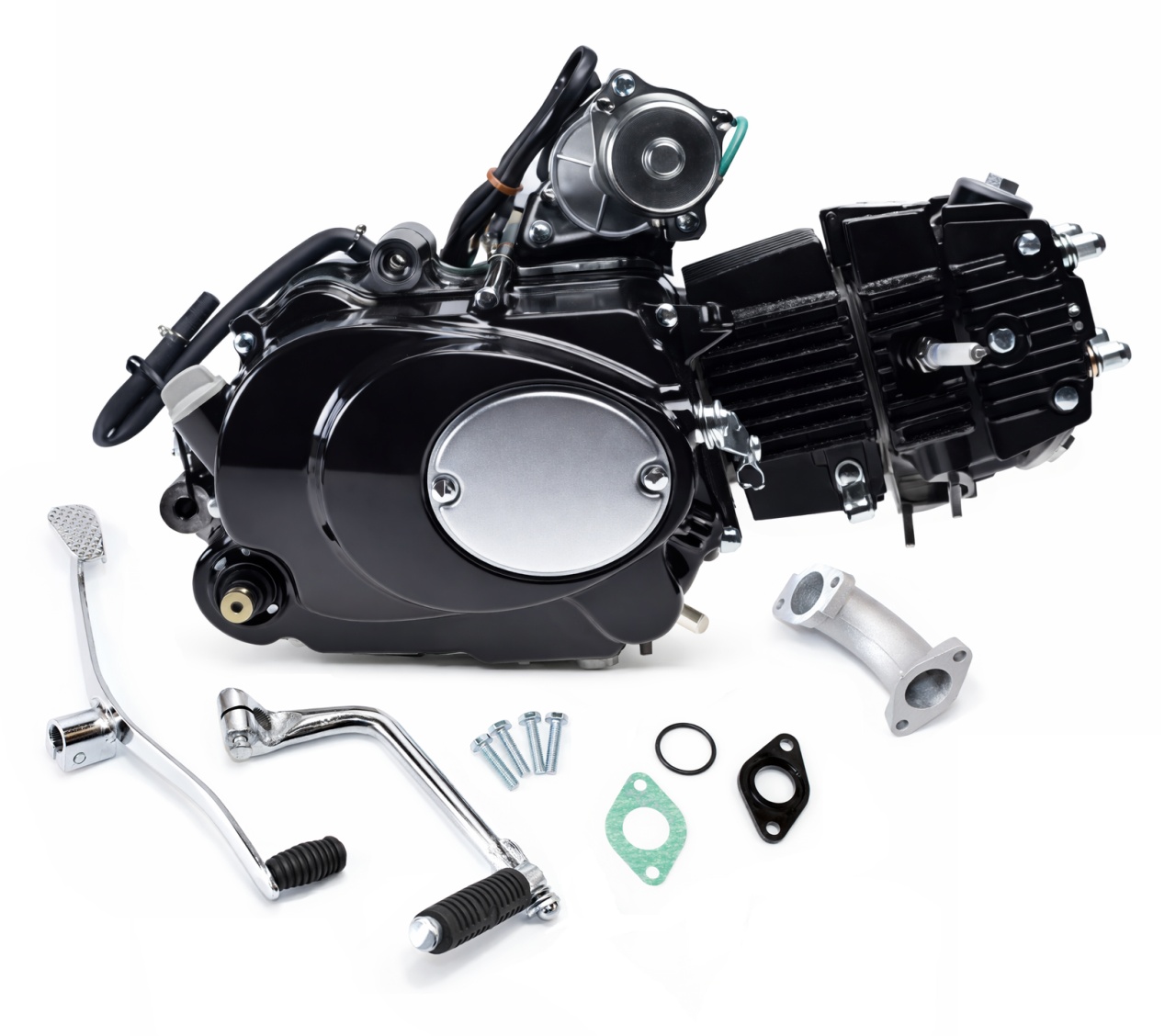

The engine includes: crankcase, cylinder head, electric motor, engine set, carburetor intake manifold, starter, gear pedal.
This 4 + 0 manual gearbox air engine
Technical specifications:
Engine model: 154FMI.
Engine type: single cylinder, 4-stroke with air cooling and manually operated clutch.
Compression ratio: 9: 1.
Maximum power: 6.5 kW / 7500r / min ± 375r / min.
Rated power: 5.6 kW / 7500r / min ± 375r / min
Maximum torque: 8.0 Nm / 5000 r / min ± 250 r / min.
Idle speed: 1500 r / min ± 100 r / min.
Minimum fuel consumption: ≤ 0.4 L / kWh.
Ignition system: RDI (not included)
Spark Plug: A7TC.
Clutch: several wet plates.
Transmission: 4 gears, manual clutch, 4 forward.
Carburetor type: PZ16J.
Transmission ratio: 2,833 / 1,706 / 1,238 / 0.958.
Oil bath capacity: 0.9 l.
Recommended oil: SAE15W / 40-SE (4-stroke petrol engine oil).
Engine dimensions: 47 x 27 x 28 cm.
This type of engine can be compatible with:
Honda CRF50, CRF70, XR50, XR70, Z50, Z50R, CT70 Mini Trail, Z50, Minitrail Monkey, XL70 ST70, QA50, QR50, CL70, SL70, 70 Passport, ST 90K2, ST 90K1, CS 90, SL 90, ZB.
* DOES NOT CONTAIN THE CARBURETOR!
